SKU: 90SF04A1-M00050  |   Brand: ASUS

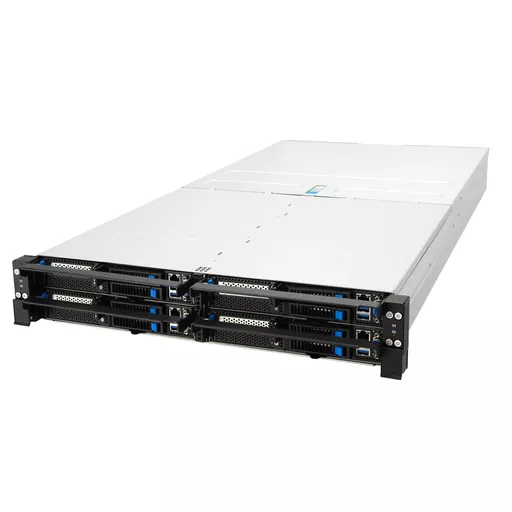

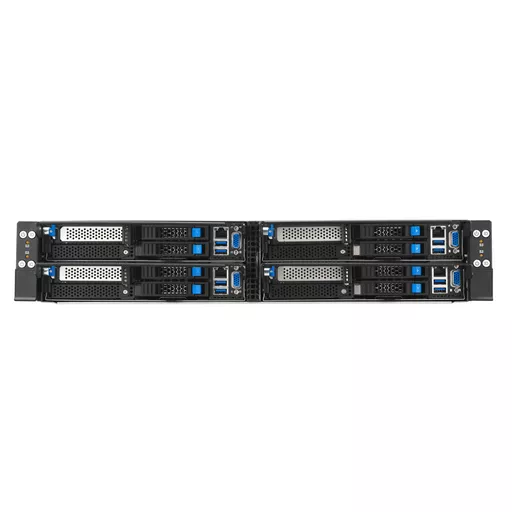

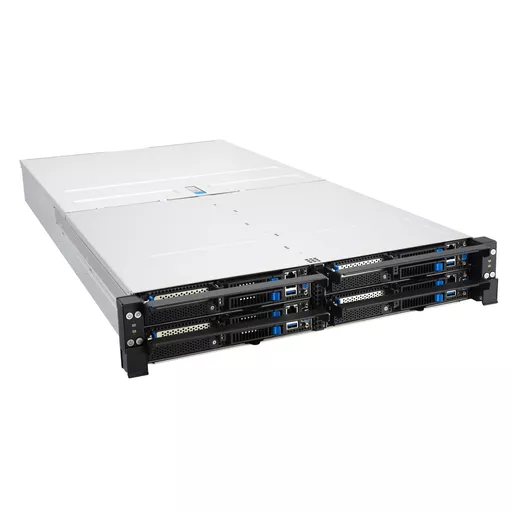

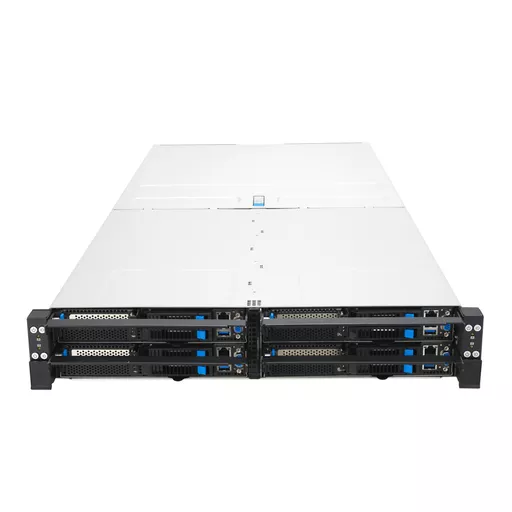

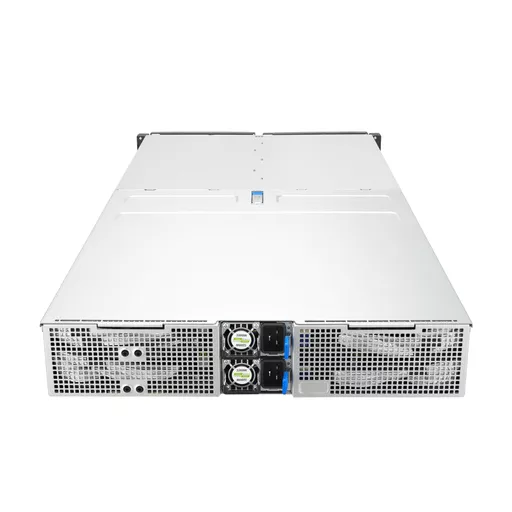

ASUS RS520QA-E13-RS8U/3200W Socket SP5 Rack (2U) Silver

SKU: 90SF04A1-M00050  |   Brand: ASUS

ASUS RS520QA-E13-RS8U/3200W Socket SP5 Rack (2U) Silver

0 in stock

£7,966.51 ex. VAT

Figures are exclusive of VAT.



CXL Memory Expander Ready
High memory capacity, High density computing

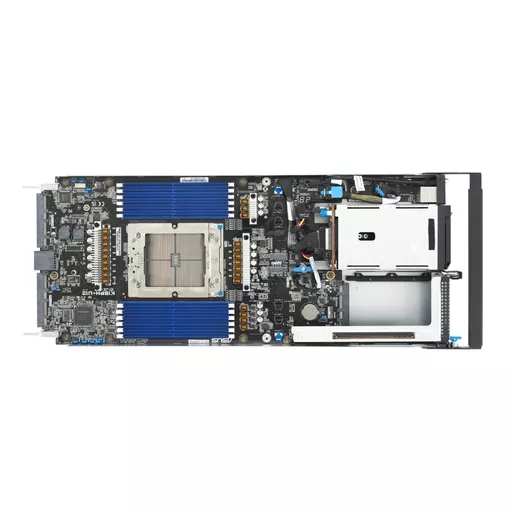

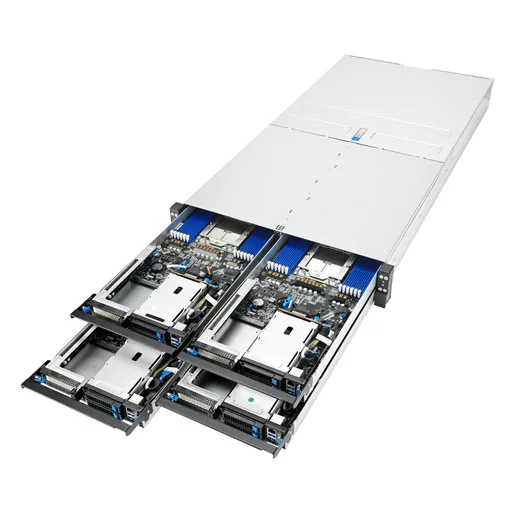

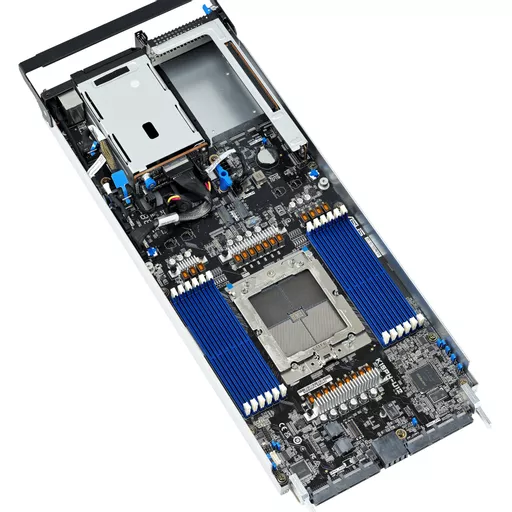

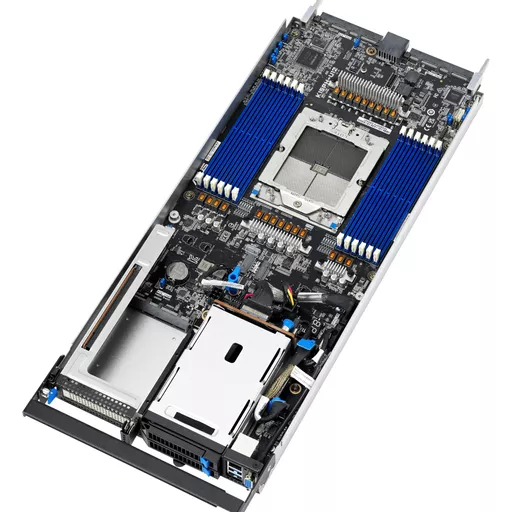

ASUS RS520QA-E13 supports optional CXL memory expansion in a single-socket 2U4N form factor, enabling greater flexibility and scalability for high-density workloads. It achieves up to 5TB of memory capacity per node with CPU memory operating at 1DPC speed to deliver high memory bandwidth –making it an ideal solution for memory-intensive applications in modern data centers, especially suited for EDA workloads and HPC.

Built-in processor N
Weight 23,700.00kg

Hard drive
Hot-swap HDD baysYes
Processor
Built-in processorNo
Processor socketSocket SP5
Number of processors supported1
Processor manufacturerAMD
Memory
Supported memory typesDDR5-SDRAM
Supported DIMM module capacities32GB, 64GB, 128GB
Number of DIMM slots20
Maximum internal memory2.56 TB
Storage
Number of storage drives supported4
Number of 2.5" bays2
Supported storage drive interfacesM.2, Serial ATA, Serial Attached SCSI (SAS)
Hot-swap HDD baysYes
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Graphics
On-board graphics card modelAspeed AST2600
On-board graphics card memory64 MB
Network
Ethernet LANYes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
VGA (D-Sub) ports quantity1
USB 2.0 ports quantity0
Ethernet LAN (RJ-45) ports1
Expansion slots
PCI Express x16 (Gen 5.x) slots1
Technical details
Number of storage drives supported4
Number of 2.5" bays2
Number of fans4 fan(s)
Chassis typeRack (2U)
Colour
Product colourSilver
Indication
LED indicatorsPower, LAN, HDD
Design
Number of fans4 fan(s)
LED indicatorsPower, LAN, HDD
Product colourSilver
Chassis typeRack (2U)
Cooling typeActive
Power

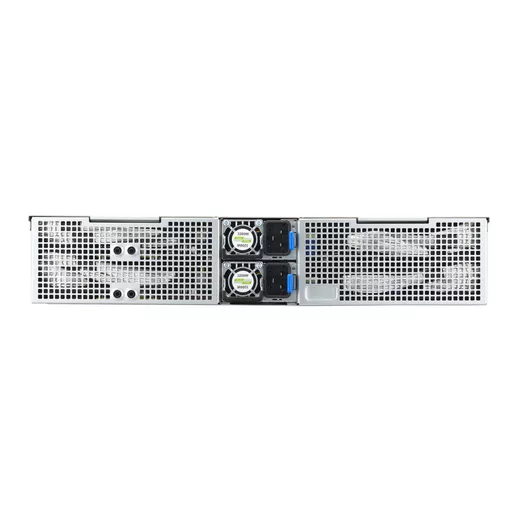

Power supply3200 W
Operational conditions
Storage temperature (T-T)-40 - 60 °C
Storage relative humidity (H-H)20 - 90%
Operating temperature (T-T)10 - 35 °C
Weight & dimensions
Width446 mm
Weight23.7 kg
Height87.2 mm
Depth900 mm
