SKU: P06789-425  |   Brand: HPE

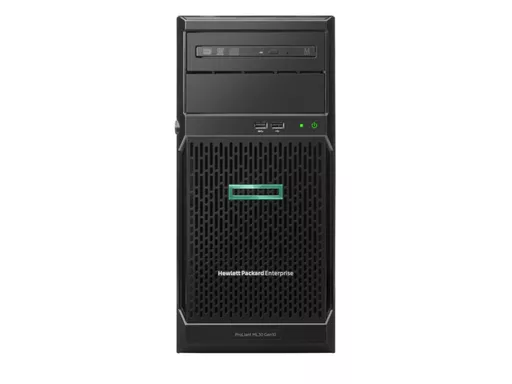

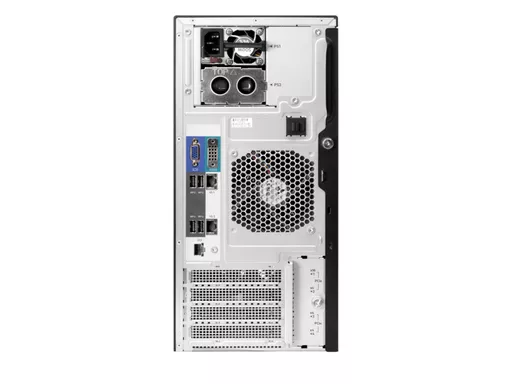

HPE ProLiant ML30 Gen10 server Intel® Xeon® E-2134 3.5 GHz 16 GB DDR4-SDRAM 500 W

SKU: P06789-425  |   Brand: HPE

HPE ProLiant ML30 Gen10 server Intel® Xeon® E-2134 3.5 GHz 16 GB DDR4-SDRAM 500 W

0 in stock

£1,377.51 ex. VAT

Figures are exclusive of VAT.



Do you know that a reliable enterprise-class server can easily meet your budget? The HPE ProLiant ML30 Gen10 server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premise and Hybrid Cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost. Just a small change can give you an extra edge. Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust, making the HPE ProLiant ML30 Gen10 server one of the world's most secure industry-standard servers. Redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability allows you to upgrade with SAS controllers, networking cards, or graphics cards as your business grows. You will be surprised at how much benefit you can get with HPE ProLiant ML30 Gen10 server.

What's new

- Supports Intel® Xeon® E processors with up to 6 cores and 80W, 8th Core™ i3 and Pentium® G processors.
- 2666 MT/s HPE DDR4 Standard Memory UDIMM offering 8 GB, 16 GB. and a maximum of 64 GB memory capacity.
- Four expansion slots for more flexible usage - two x16 and two x8 connectors.
- Onboard M.2 NVMe SSD support.
- Dedicated HPE iLO port and serial port option kit.
- SMB offerings to match different workloads.

Powerful Yet Affordable Server for Your Daily Office Workloads

The HPE ProLiant ML30 Gen10 server, powered by up to 6 cores in the Intel Xeon E Processor and up to 64 GB of 2666 MT/s DDR4 ECC UDIMM, delivers abundant performance for small- to mid-sized business applications.

Up to 61.44 TB storage capacity makes HPE ProLiant ML30 Gen10 server an ideal data storage solution for your business to cope with the increasing amount of data. Onboard M.2 slot with NVMe SSD support delivers outstanding speed for boot drive.1

The option of a dedicated HPE iLO port allows you to dedicate more bandwidth to network functions to achieve higher network performance.

The embedded SATA HPE Smart Array S100i Controller ships standard and the redesigned HPE Smart Array Controllers allow you the flexibility to choose the 12 Gbps controller that is most suited to your environment.

With selection of Hewlett Packard Enterprise qualified professional 3D graphics cards, HPE ProLiant ML30 Gen10 server can easily handle graphical workloads such as medium size CAD models, basic digital content creation, and medical imaging.

Variety of Enterprise-class Features to Achieve Business Growth with Lower TCO

The HPE ProLiant ML30 Gen10 server offers flexibility in different storage needs. With the choice of four Large Form Factor (LFF) non-hot-plug, hot-plug, or eight Small Form Factor (SFF) hot-plug drive options, you can find the right storage fit for your growing business.

The selective HPE 500W Flex Slot Platinum Hot Plug Power Supply Kit enhances reliability, and lets you share spares across multiple server platforms.

Error-Correcting Code (ECC) memory protects business from data loss and unplanned system downtime.

The HPE ProLiant ML30 Gen10 server offers a complete set of embedded HPE Integrated Lights Out (iLO 5) for Gen10 Servers management features, which includes HPE iLO with Agentless Management, Active Health System, and intelligent provisioning.

Security Innovations

The HPE ProLiant ML30 Gen10 server is one of the Hewlett Packard Enterprise industry-standard servers with major firmware anchored directly into the silicon security protection built-in across the server lifecycle, starting with silicon root of trust.

Millions of lines of firmware code run before server operating system boots. With Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.

Secure recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.

Industry-Leading Services and Ease of Deployment

The HPE ProLiant ML30 Gen10 server comes with a complete set of services from HPE Pointnext, delivering confidence, reducing risk, and helping you realize agility and stability.

Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Service professionals understand customer challenges and design an enhanced solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

Services provided under Operational Services include: HPE GreenLake Flex Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services, and multivendor coverage.

Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Internal memory type DDR4-SDRAM
Processor family Intel Xeon
Internal memory 16GB
Family ProLiant
Series ML

Processor
Tjunction100 °C
Thermal Monitoring TechnologiesYes
Thermal Design Power (TDP)71 W
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Scalability1S
Processor threads8
Processor package size37.5 x 37.5 mm
Processor operating modes64-bit
Processor lithography14 nm
Processor codenameCoffee Lake
PCI Express configurations1x16, 2x8, 1x8+2x4
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Memory bandwidth supported by processor (max)41.6 GB/s
Maximum number of PCI Express lanes16
Maximum internal memory supported by processor128 GB
Idle StatesYes
Execute Disable BitYes
Embedded options availableNo
Bus typeDMI3
Processor cache typeSmart Cache
Processor cache8 MB
Processor frequency3.5 GHz
Processor boost frequency4.5 GHz
Number of processors installed1
Processor modelE-2134
System bus rate8 GT/s
Processor socketLGA 1151 (Socket H4)
Processor cores4
Processor manufacturerIntel
Processor familyIntel® Xeon®
Memory
Internal memory16 GB
Memory layout (slots x size)1 x 16 GB
Memory slots4
Maximum internal memory64 GB
Internal memory typeDDR4-SDRAM
Storage
Supported HDD sizes3.5"
Number of HDDs supported4
Hot-Plug supportYes
Graphics
On-board graphics card modelNot available
Network
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports2
Expansion slots
PCI Express slots version3.0
Design
Redundant fans supportNo
Product colourBlack
Performance
Operating system installedNo
Software
Operating system installedNo
Processor special features
Enhanced Intel SpeedStep TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® OS GuardYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® Turbo Boost Technology2.0
Intel TSX-NIYes
Intel Trusted Execution TechnologyYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel® Secure KeyYes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel Enhanced Halt StateYes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Intel TSX-NI version1.00
Intel Secure Key Technology version1.00
Processor ARK ID134858
CPU configuration (max)1
Power
Number of redundant power supplies supported1
Power supply500 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Supported HDD sizes3.5"
Redundant fans supportNo
Hot-Plug supportYes
Ethernet interface typeGigabit Ethernet
CPU configuration (max)1
Weight & dimensions
Width175 mm
Height368.3 mm
Other features
CPU configuration (max)1
