SKU: E104520  |   Brand: Elo Touch Solutions

Elo Touch Solutions ET5554L-9UWA-1-MT-GY-G Kiosk design 80 cm (31.5") LED 400 cd/m² Full HD Black Touchscreen

SKU: E104520  |   Brand: Elo Touch Solutions

Elo Touch Solutions ET5554L-9UWA-1-MT-GY-G Kiosk design 80 cm (31.5") LED 400 cd/m² Full HD Black Touchscreen

0 in stock

£1,489.58 ex. VAT

Figures are exclusive of VAT.



Interactive Display
Elevate your applications with Elo’s 5554L 55‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5554L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 55‑inch tablet.

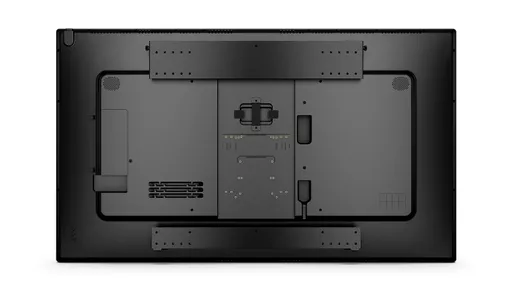

The back of your display
never looked so clean.


Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.

Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 5554L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro™ PCAP interactive displays
can be mounted behind a mirror, in a counter or in a fully encased
kiosk for added durability or aesthetics.

Versatile mounting options for
commercial interactive displays.

Our commercial-grade interactive displays can be mounted in
landscape, portrait and tabletop orientations, providing optimal
flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands
of commercial environments.

Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance,
Elo’s 5554L delivers the reliability and durability businesses need even in the most
demanding conditions. With the addition of extended product life cycles and global
certifications, you can trust in the long-term performance and suitability of the 5554L
for diverse international markets.

Get peace of mind
with EloCare.℠

EloCare delivers service and support from the people who know your Elo products best. And as part of the three-year standard warranty for large format digital signage displays, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service.

Quality that
is built to last.

We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

HDMI ports quantity 2
HD type 4K Ultra HD
Display technology LED
Product colour Black
Product design Kiosk design
Weight 39.00kg

Display
Panel typeTFT-LCD
Display number of colours1.07 billion colours
Number of simultaneous touchpoints20
TouchscreenYes
Active display area (W x H)1209.6 x 680.4 mm
Display technologyLED
Display diagonal138.7 cm (54.6")
Display resolution3840 x 2160 pixels
Display brightness450 cd/m²
HD type4K Ultra HD
Response time8 ms
Contrast ratio (typical)1100:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Native aspect ratio16:9
Maximum frame rate60 fps
Touchscreen technologyInfrared
Ports & interfaces
USB connector typeUSB Type-C
DisplayPort version1.4
USB portYes
HDMI version2.0
DisplayPorts quantity1
Ethernet LANYes
HDMI ports quantity2
Ethernet LAN (RJ-45) ports2
RS-232 interfaceYes
USB ports quantity6
Audio
Number of built-in speakers2
RMS rated power20 W
Built-in speaker(s)Yes
Design
Product designKiosk design
Placement supportedIndoor
OrientationHorizontal
Product colourBlack
Panel mounting interface400 x 400 mm
CertificationFCC
VESA mountingYes
Screen shapeFlat
Performance
PurposeUniversal
Mean time between failures (MTBF)50000 h
On Screen Display (OSD)Yes
Power
Power consumption (off)0.28 W
Power consumption (typical)110.72 W
Power consumption (standby)2.3 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Weight & dimensions
Weight (with stand)30.1 kg
Display width1271.8 mm
Display depth70 mm
Display height742.6 mm
Packaging data
Package width1460 mm
Package depth1040 mm
Package height225 mm
Package weight38.6 kg
Cables includedAC
Packaging content
Cables includedAC
Operational conditions
Operating temperature (T-T)0 - 35 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%
Certificates
CertificationFCC
Technical details
VESA mountingYes
USB connector typeUSB Type-C
Panel typeTFT-LCD
DisplayPort version1.4
Number of simultaneous touchpoints20
Weight (with stand)30.1 kg
Network
Ethernet LANYes
Other features
USB connector typeUSB Type-C
Panel typeTFT-LCD
DisplayPort version1.4
Number of simultaneous touchpoints20
Mean time between failures (MTBF)50000 h
Display technologyLED
Weight (with stand)30.1 kg
