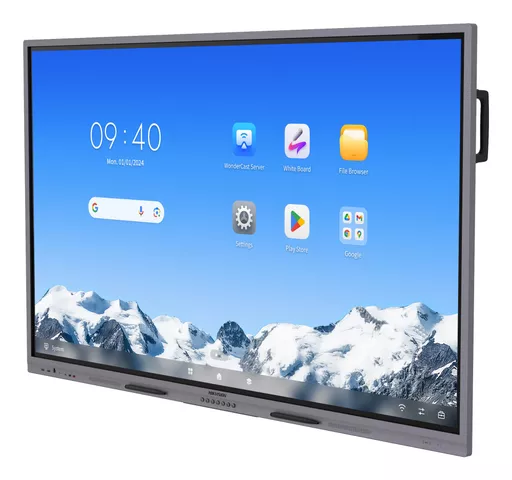

Hikvision DS-D5C86RB/A2L Signage Display Interactive flat panel 2.18 m (86") LED Wi-Fi 480 cd/m² 4K Ultra HD Grey Touchscreen Built-in processor Android 16/7

SKU: DS-D5C86RB/A2L | Brand: Hikvision

Hikvision DS-D5C86RB/A2L Signage Display Interactive flat panel 2.18 m (86") LED Wi-Fi 480 cd/m² 4K Ultra HD Grey Touchscreen Built-in processor Android 16/7

SKU: DS-D5C86RB/A2L | Brand: Hikvision

Hikvision DS-D5C86RB/A2L Signage Display Interactive flat panel 2.18 m (86") LED Wi-Fi 480 cd/m² 4K Ultra HD Grey Touchscreen Built-in processor Android 16/7

0 in stock

£2,415.56 ex. VAT

Figures are exclusive of VAT.

+ Description

The Hikvision Interactive Flat Panel is a kind of newly developed intelligent teaching assistance product which integrates with the latest technologies of touch control, HD display, video processing, network communication, interactive control, sound control. It can be widely applied to the classroom, online teaching, training center, etc.

+ Tech Specs

HDMI ports quantity	3
Display technology	LED
Product design	Interactive flat panel
Product colour	Grey
HD type	4K Ultra HD
Weight	78,500.00kg

Attributes

Display
LED backlight	Yes
Panel type	VA
Display number of colours	1.07 billion colours
Number of simultaneous touchpoints	50
LED backlighting type	Direct-LED
Touchscreen	Yes
Active display area (W x H)	1065.96 x 1895.04 mm
Display technology	LED
Colour gamut	72%
Display diagonal	2.18 m (86")
Display resolution	3840 x 2160 pixels
Display brightness	480 cd/m²
HD type	4K Ultra HD
Response time	5 ms
Contrast ratio (typical)	5000:1
Contrast ratio (dynamic)	30000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.164 x 0.493 mm
Display diagonal (metric)	217 cm
Panel life	50000 h
Native aspect ratio	16:9
Anti-glare screen	Yes
Colour depth	10 bit
Touchscreen technology	Infrared
Touch response time	2 ms
Surface hardness	9H
Native refresh rate	60 Hz
Haze rate	25%
RGB colour space	NTSC
Multi-touch	Yes
Ports & interfaces
USB connector type	USB Type-A, USB Type-B, USB Type-C
USB port	Yes
HDMI version	2.0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
DisplayPorts quantity	0
Card reader integrated	Yes
Ethernet LAN	Yes
HDMI ports quantity	3
Ethernet LAN data rates	1000 Mbit/s
DVI port	No
VGA (D-Sub) input ports	1
Audio (L/R) in	1
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	7
USB 2.0 Type-B ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
Audio
Number of built-in speakers	3
RMS rated power	65 W
Built-in speaker(s)	Yes
Design
Product design	Interactive flat panel
Placement supported	Indoor
Orientation	Horizontal
Product colour	Grey
Panel mounting interface	800 x 400 mm
VESA mounting	Yes
Anti-glare screen	Yes
Mounting type	Wall
Screen shape	Flat
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
Ambient light sensor	Yes
HDCP	Yes
HDCP version	2.3
Optical bonding	Yes
Automatic gain control	Yes
Security algorithms	WEP, WPA, WPA2
Wi-Fi	Yes
Panel life	50000 h
Power
Power consumption (off)	0.3 W
Power consumption (typical)	274 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	274 kWh
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Processor cores	8
Processor family	ARM Cortex
Processor frequency	2.4 GHz
Operating system installed	Android
Internal memory	8 GB
Internal storage capacity	128 GB
Processor manufacturer	ARM
Built-in processor	Yes
On-board graphics card model	Mali G610 MC4
Processor architecture	ARM Cortex-A76+Cortex-A55
Operating system version	14
Weight & dimensions
Display width	1960.4 mm
Display depth	82.5 mm
Display height	1158.2 mm
Display weight	58.5 kg
Packaging data
Package width	2157 mm
Package depth	223 mm
Package height	1345 mm
Package weight	78.5 kg
Mounting kit	Yes
Manual	Yes
Cables included	AC, HDMI, USB
Packaging content
Mounting kit	Yes
Manual	Yes
Cables included	AC, HDMI, USB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-B, USB Type-C
Power supply type	Internal
Panel type	VA
Number of simultaneous touchpoints	50
LED backlighting type	Direct-LED
Ambient light sensor	Yes
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Security algorithms	WEP, WPA, WPA2
Thin Client
Processor family	ARM Cortex
Processor frequency	2.4 GHz
Operating system installed	Android
Internal memory	8 GB
Internal storage capacity	128 GB
Sensors
Ambient light sensor	Yes
Other features
USB connector type	USB Type-A, USB Type-B, USB Type-C
Power supply type	Internal
Panel type	VA
Number of simultaneous touchpoints	50
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
USB 2.0 ports quantity	1
Subwoofer RMS power	25 W
Display technology	LED
Card reader integrated	Yes
Built-in subwoofer	Yes
Bluetooth version	5.4
Bluetooth	Yes
Manual	Yes
Bluetooth Low Energy (BLE)	Yes
Energy efficiency scale	A to G
