SKU: DS-D5C98RB/A  |   Brand: Hikvision

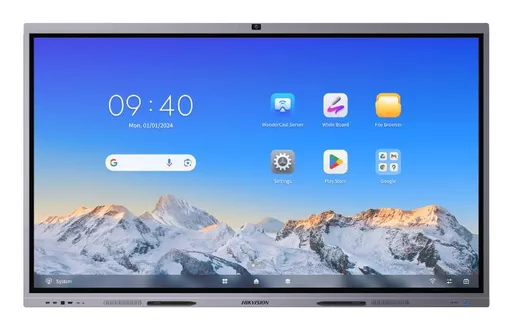

Hikvision DS-D5C98RB/A Signage Display Interactive flat panel 2.49 m (98") LED Wi-Fi 600 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 16/7

SKU: DS-D5C98RB/A  |   Brand: Hikvision

Hikvision DS-D5C98RB/A Signage Display Interactive flat panel 2.49 m (98") LED Wi-Fi 600 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 16/7

0 in stock

£5,286.58 ex. VAT

Figures are exclusive of VAT.



The Hikvision Interactive Flat Panel is a kind of newly developed intelligent teaching assistance product which integrates with the latest technologies of touch control, HD display, video processing, network communication, interactive control, and sound control. It can be widely applied to the classroom, online teaching, training center, etc.

Display technology LED
Product design Interactive flat panel
HDMI ports quantity 4
HD type 4K Ultra HD
Product colour Black
Weight 137.00kg

Display
LED backlightYes
Panel typeVA
Display number of colours1.07 billion colours
Number of simultaneous touchpoints50
LED backlighting typeDirect-LED
TouchscreenYes
Active display area (W x H)2158.848 x 1214.352 mm
Display technologyLED
Display diagonal2.49 m (98")
Display resolution3840 x 2160 pixels
Display brightness600 cd/m²
HD type4K Ultra HD
Response time5 ms
Contrast ratio (typical)5000:1
Contrast ratio (dynamic)30000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Native aspect ratio16:9
Anti-glare screenYes
Touchscreen technologyInfrared
Surface hardness9H
Haze rate25%
Multi-touchYes
Ports & interfaces
USB connector typeUSB Type-A, USB Type-C
DisplayPort version1.2
USB portYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-FiYes
DisplayPorts quantity1
Ethernet LANYes
HDMI ports quantity4
Ethernet LAN data rates10,100,1000 Mbit/s
DVI portNo
VGA (D-Sub) input ports1
Audio (L/R) in1
Audio (L/R) out1
Ethernet LAN (RJ-45) ports2
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
HDMI input ports quantity3
HDMI output ports quantity1
USB 2.0 Type-B ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Audio
Number of built-in speakers3
RMS rated power65 W
Built-in speaker(s)Yes
Design
Product designInteractive flat panel
Product colourBlack
Panel mounting interface1000 x 400 mm
VESA mountingYes
Anti-glare screenYes
Performance
PurposeEducation
Operating hours (hours/days)16/7
Mean time between failures (MTBF)50000 h
HDCPYes
HDCP version2.3
Wi-FiYes
Power
Power consumption (max)325 W
Power consumption (typical)325 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Computer system
Computer systemYes
Processor cores8
Processor familyARM Cortex
Processor frequency2.3 GHz
Operating system installedAndroid
Internal memory8 GB
Internal storage capacity128 GB
Processor manufacturerARM
Built-in processorYes
On-board graphics card modelMali G610 MC4
Processor architectureARM Cortex-A76+Cortex-A55
Operating system version13
Weight & dimensions
Display width2219.8 mm
Display depth105.7 mm
Display height1336.4 mm
Display weight94 kg
Packaging data
Package width2520 mm
Package depth1700 mm
Package height330 mm
Package weight137 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Technical details
VESA mountingYes
USB connector typeUSB Type-A, USB Type-C
Panel typeVA
DisplayPort version1.2
Number of simultaneous touchpoints50
LED backlighting typeDirect-LED
Network
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-FiYes
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Thin Client
Processor familyARM Cortex
Processor frequency2.3 GHz
Operating system installedAndroid
Internal memory8 GB
Internal storage capacity128 GB
Other features
USB connector typeUSB Type-A, USB Type-C
Panel typeVA
DisplayPort version1.2
Number of simultaneous touchpoints50
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-FiYes
Power consumption (max)325 W
Mean time between failures (MTBF)50000 h
Display technologyLED
Bluetooth version5.1
BluetoothYes
Bluetooth Low Energy (BLE)Yes
