SKU: 60006061  |   Brand: Sharp

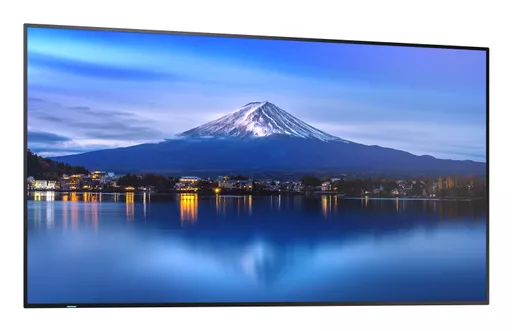

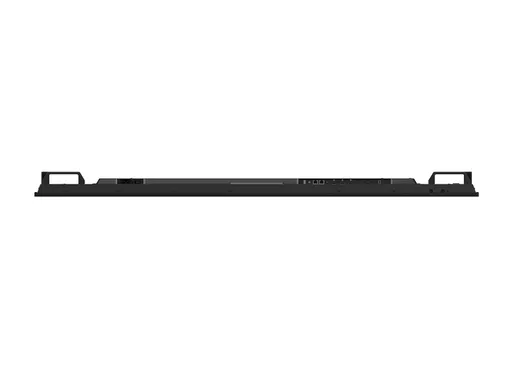

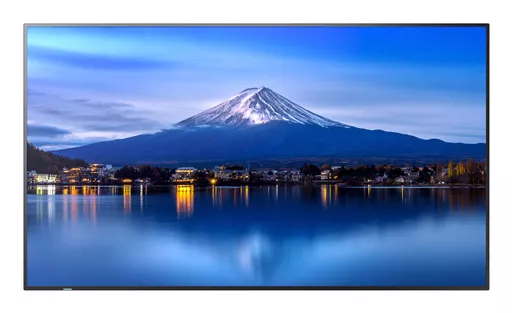

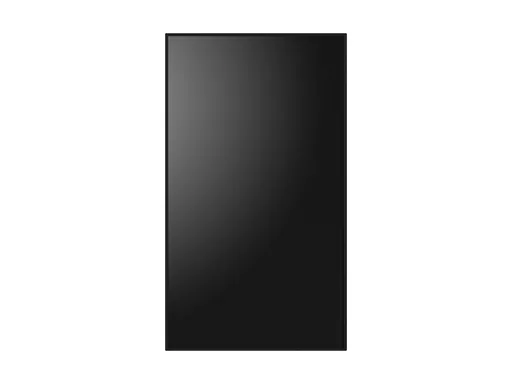

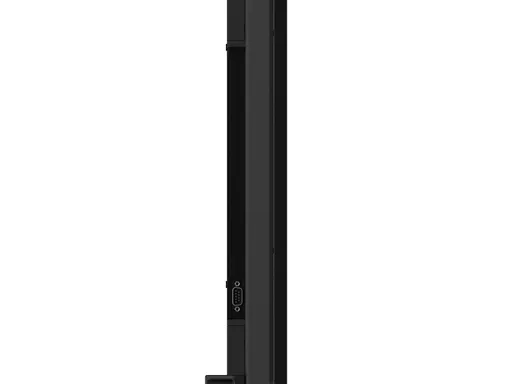

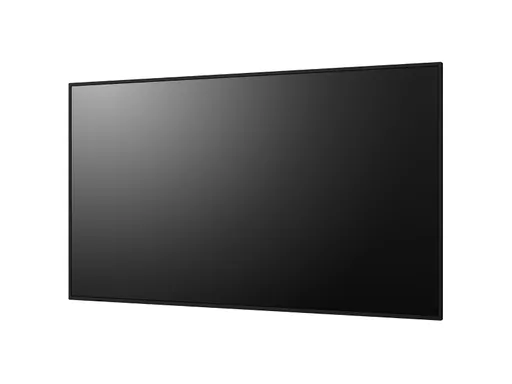

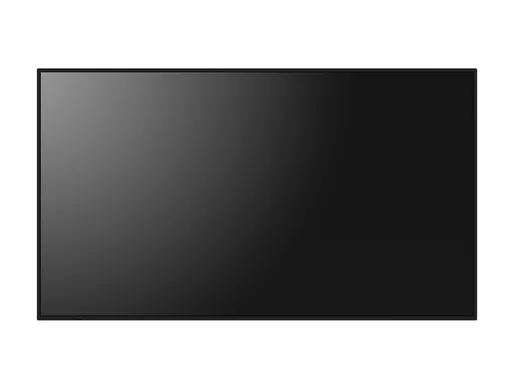

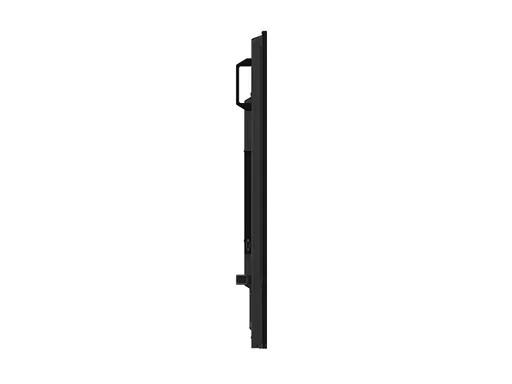

Sharp MultiSync P656 Kiosk design 163.8 cm (64.5") LCD 700 cd/m² 4K Ultra HD Black Built-in processor

SKU: 60006061  |   Brand: Sharp

Sharp MultiSync P656 Kiosk design 163.8 cm (64.5") LCD 700 cd/m² 4K Ultra HD Black Built-in processor

0 in stock

£1,818.20 ex. VAT

Figures are exclusive of VAT.



Precision performance for critical applications

When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.

Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.

Weight 35,000.00kg

Display
LED backlightYes
Panel typeIPS
Display number of colours1.073 billion colours
LED backlighting typeDirect-LED
Display technologyLCD
Display diagonal163.8 cm (64.5")
Display resolution3840 x 2160 pixels
Display brightness700 cd/m²
HD type4K Ultra HD
Response time8 ms
Contrast ratio (typical)8000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.375 x 0.375 mm
Display diagonal (metric)163.9 cm
Vertical scan range23 - 76 Hz
Native aspect ratio16:9
Horizontal scan range15 - 135 kHz
Native refresh rate60 Hz

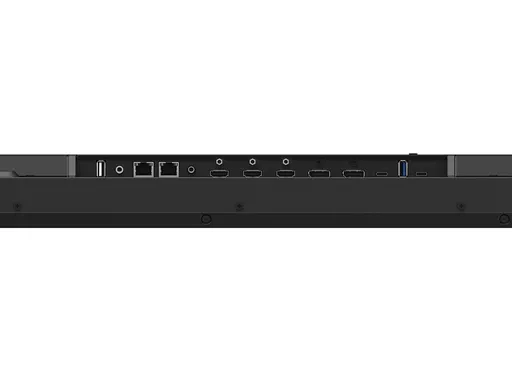

Ports & interfaces
USB connector typeUSB Type-A, USB Type-C
DisplayPorts out1
USB portYes
DisplayPorts in1
Wi-FiNo
DisplayPorts quantity2
Ethernet LANYes
HDMI ports quantity3
Ethernet LAN data rates100 Mbit/s
DVI portNo
Ethernet LAN (RJ-45) ports1
RS-232 interfaceYes
HDMI input ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery up to65 W
USB Type-C DisplayPort Alternate ModeYes
Audio
Built-in speaker(s)Yes
Design
Product designKiosk design
Placement supportedIndoor

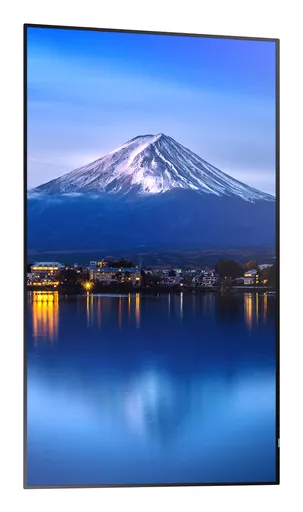

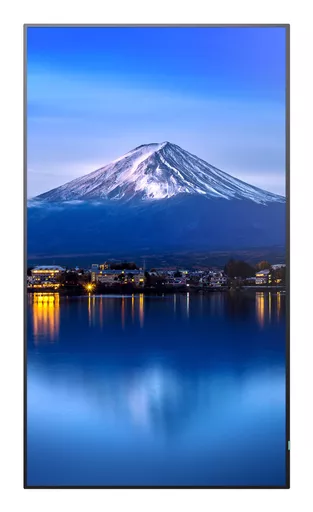

OrientationHorizontal/Vertical
Bezel width (top)1.1 cm
Bezel width (side)1.1 cm
Bezel width (bottom)1.39 cm
Product colourBlack
Panel mounting interface300 x 300 mm
VESA mountingYes
Performance
PurposeRetail
HDCPYes
Web browserYes
Wi-FiNo
Power
Power consumption (typical)160 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Energy efficiency scaleA to G
Energy efficiency class (SDR)G
Energy efficiency class (HDR)G
Energy consumption (SDR) per 1000 hours139 kWh
Energy consumption (HDR) per 1000 hours137 kWh
Computer system
Computer systemYes
Processor manufacturerIntel
Built-in processorYes
Weight & dimensions
Display width1454.5 mm
Display depth59.5 mm
Display height832.4 mm
Display weight17.3 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 80%
Technical details
VESA mountingYes
USB connector typeUSB Type-A, USB Type-C
Panel typeIPS
DisplayPorts out1
DisplayPorts in1
LED backlighting typeDirect-LED
Sustainability certificatesENERGY STAR
Safety warningCE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
Other features
USB connector typeUSB Type-A, USB Type-C
Panel typeIPS
DisplayPorts out1
DisplayPorts in1
Wi-FiNo
Display technologyLCD
Bezel width (top)1.1 cm
Bezel width (side)1.1 cm
Bezel width (bottom)1.39 cm
Energy efficiency scaleA to G
