Teleproject UK


SKU: SURT1000RMXLI-NC  |   Brand: APC

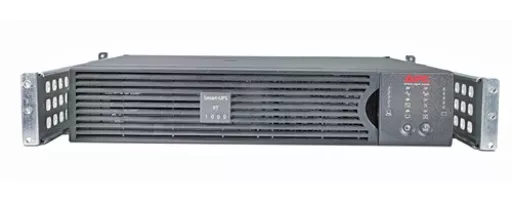

APC Smart-UPS RT 1000VA, 230V, rackmount, 2U, 6x IEC 60320 & 2x IEC Jumpers outlets, w/network card

SKU: SURT1000RMXLI-NC  |   Brand: APC

APC Smart-UPS RT 1000VA, 230V, rackmount, 2U, 6x IEC 60320 & 2x IEC Jumpers outlets, w/network card

0 in stock

£1,421.08 ex. VAT

Figures are exclusive of VAT.



High density, double-conversion on-line power protection with scalable runtime.

Form factor Rackmount/Tower
UPS topology Double-conversion (Online)
Output power 500W to 1000W
Product colour Black
Output power capacity 600VA to 1200VA
Weight 27,800.00kg

Power
Output power700 W
Input operation voltage (min)100 V
Input operation voltage (max)280 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating240 J
Efficiency88.9%
Crest factor3:1
Output power capacity1 kVA
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Auto-restartYes
LED indicatorsStatus
Surge protectionYes
Noise level50 dB
Audible alarm(s)Yes
Features
UPS topologyDouble-conversion (Online)
WaveformSine
Auto-restartYes
Output power700 W
Input operation voltage (min)100 V
Input operation voltage (max)280 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating240 J
Efficiency88.9%
Surge protectionYes
Noise level50 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity1 kVA
Input frequency50/60 Hz
Ports & interfaces
Serial interfaceYes
Serial interface typeRS-232
SmartSlotYes
AC outlets quantity6 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Number of output IEC jumpers2
Battery
Battery life (max)5 year(s)
Battery capacity328 VAh
Battery technologySealed Lead Acid (VRLA)
Battery recharge time3 h
Typical backup time at half load32 min
Hot-swap batteryYes
Cold startYes
Automatic battery testYes
Design
International Protection (IP) codeIP20
Rack capacity2U
Form factorRackmount/Tower
LED indicatorsStatus
Product colourBlack
CertificationC-tick, CE, EN 50091-1, EN 50091-2, EN 60950, EN 61000-3-2, GOST, VDE
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Technical details
Harmonized System (HS) code85078000
Compliance certificatesRoHS
Weight & dimensions
Package width630 mm
Package depth594 mm
Package height286 mm
Weight23 kg
Width432 mm
Package weight27.8 kg
Height85 mm
Depth483 mm
Packaging data
Package width630 mm
Package depth594 mm
Package height286 mm
Package weight27.8 kg
Logistics data
Products per master (outer) case1 pc(s)
Products per pallet4 pc(s)
Harmonized System (HS) code85078000
Certificates
CertificationC-tick, CE, EN 50091-1, EN 50091-2, EN 60950, EN 61000-3-2, GOST, VDE
