SKU: SRT2200XLA  |   Brand: APC

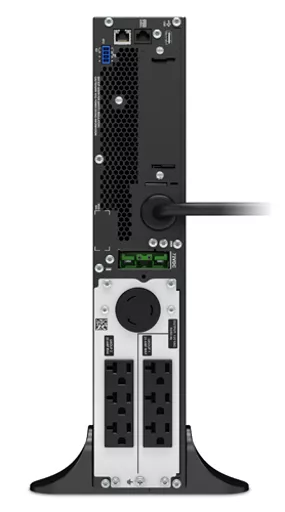

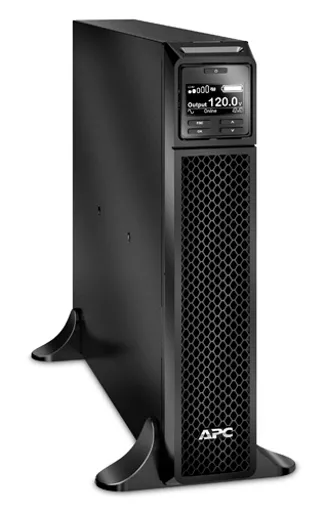

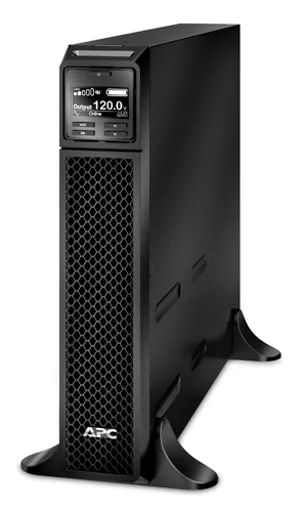

APC SRT2200XLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W 7 AC outlet(s)

SKU: SRT2200XLA  |   Brand: APC

APC SRT2200XLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W 7 AC outlet(s)

0 in stock

£1,788.34 ex. VAT

Figures are exclusive of VAT.



High density, double-conversion on-line power protection with scalable runtime

Includes : CD with software, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card.

Product colour Black
Form factor Tower
UPS topology Double-conversion (Online)
Output power 1500W to 2000W
Weight 30,840.00kg

Power
Output power1800 W
Input operation voltage (min)120 V
Input operation voltage (max)120 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating340 J
Emergency Power Off (EPO)Yes
Crest factor3:1
Output power capacity2.2 kVA
Ports & interfaces
Cable length1.83 m
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes
AC outlets quantity7 AC outlet(s)
AC outlet typesNEMA 5–20R, NEMA L5-20R
Power plugNEMA 5-20P
Ethernet LAN (RJ-45) ports2
Performance
Audible alarm modesBattery replacement
UPS topologyDouble-conversion (Online)
WaveformSine
Auto-restartYes
LED indicatorsStatus, Battery replacement
Surge protectionYes
Power protection featuresOverload
Noise level55 dB
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
Web-based managementYes
Audible alarm modesBattery replacement
UPS topologyDouble-conversion (Online)
WaveformSine
Auto-restartYes
Output power1800 W
Input operation voltage (min)120 V
Input operation voltage (max)120 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating340 J
Surge protectionYes
Emergency Power Off (EPO)Yes
Power protection featuresOverload
Noise level55 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity2.2 kVA
Input frequency40 - 70 Hz
Package typeBox
Battery
Battery life (max)5 year(s)
Battery capacity306 VAh
Hot-swap batteryYes
Cold startYes
Automatic battery testYes
Design
International Protection (IP) codeIP20
Form factorTower
LED indicatorsStatus, Battery replacement
Product colourBlack
CertificationCSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Cable length1.83 m
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Technical details
Output frequency50/60 Hz
Sustainability certificatesENERGY STAR
Compliance certificatesRoHS
Certificates
CertificationCSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Compliance certificatesRoHS
Management features
Web-based managementYes
Packaging content
Quick installation guideYes
Cables includedUSB cable
BracketYes
Warranty cardYes
Software CDYes
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Package typeBox
Package width599 mm
Package depth810 mm
Package height246 mm
Weight25 kg
Width85 mm
Package weight30.8 kg
Height432 mm
Depth584 mm
Packaging data
Quick installation guideYes
Cables includedUSB cable
BracketYes
Package typeBox
Warranty cardYes
Software CDYes
Package width599 mm
Package depth810 mm
Package height246 mm
Package weight30.8 kg
Logistics data
Products per pallet12 pc(s)
