SKU: SRV1KI  |   Brand: APC

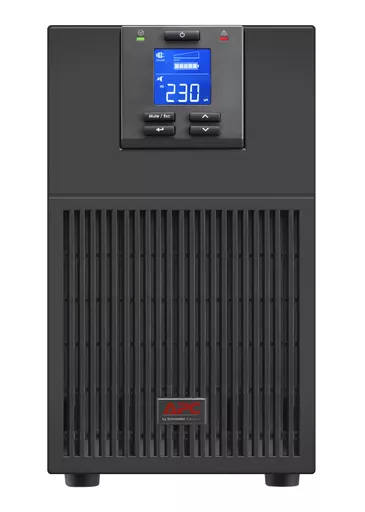

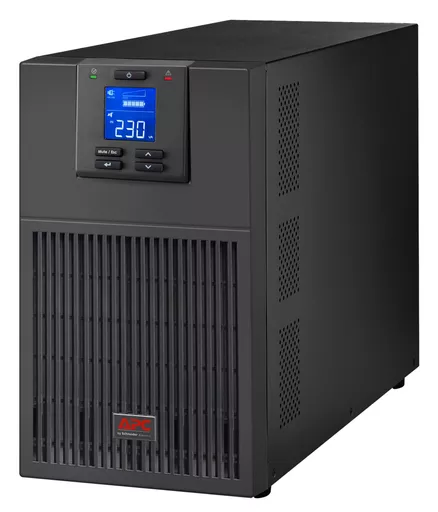

APC SRV1KI uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)

SKU: SRV1KI  |   Brand: APC

APC SRV1KI uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)

0 in stock

£371.94 ex. VAT

Figures are exclusive of VAT.



Output power capacity 600VA to 1200VA
UPS topology Double-conversion (Online)
Output power 500W to 1000W
Product colour Black
Form factor Mini tower
Weight 10,600.00kg

Power
Output power800 W
Input operation voltage (min)110 V
Input operation voltage (max)285 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Efficiency88%
Emergency Power Off (EPO)No
Crest factor3:1
Output power capacity1 kVA

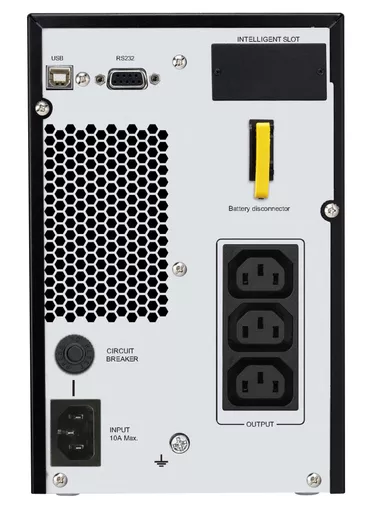

Ports & interfaces
Socket circuit breakerYes
USB portYes
Serial interfaceYes
Serial interface typeRS-232
AC outlets quantity3 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
USB 2.0 ports quantity1
RS-232 ports1
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Features
UPS topologyDouble-conversion (Online)
WaveformSine
Output power800 W
Input operation voltage (min)110 V
Input operation voltage (max)285 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Efficiency88%
Emergency Power Off (EPO)No
Crest factor3:1
Output power capacity1 kVA
Socket circuit breakerYes
Input frequency40 - 70 Hz
Package typeBox
Battery
Battery capacity24 VAh
Number of batteries supported1
Battery voltage12 V
Battery capacity9 Ah

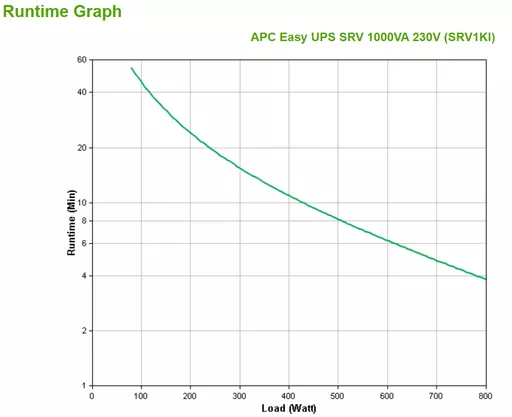

Typical backup time at half load10 min
Typical backup time at full load4 min
Design
Form factorMini Tower
Product colourBlack
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Technical details
Harmonized System (HS) code85078000
Weight & dimensions
Package typeBox
Package width235 mm
Package depth365 mm
Package height330 mm
Weight9.3 kg
Width145 mm
Package weight10.6 kg
Height223 mm
Depth288 mm
Package volume10600 cm³
Packaging data
Cables includedInput power cable, Output power cable, RS-232, USB cable
ManualYes
Package typeBox
Warranty cardYes
Software CDYes
Package volume10600 cm³
Package width235 mm
Package depth365 mm
Package height330 mm
Package weight10.6 kg
Logistics data
Harmonized System (HS) code85078000
Packaging content
Cables includedInput power cable, Output power cable, RS-232, USB cable
ManualYes
Warranty cardYes
Software CDYes
