SKU: 9PX11KIRTNG2-L  |   Brand: Eaton

Eaton 9PX11KIRTNG2-L Model code: 9PX 11000i RT4U Netpack G2 Li-Ion

SKU: 9PX11KIRTNG2-L  |   Brand: Eaton

Eaton 9PX11KIRTNG2-L Model code: 9PX 11000i RT4U Netpack G2 Li-Ion

0 in stock

£9,482.08 ex. VAT

Figures are exclusive of VAT.

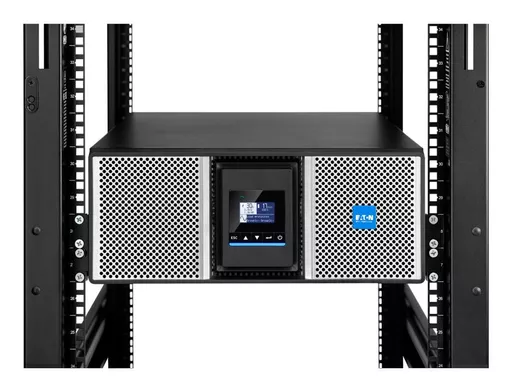

Eaton 9PX Gen 2 Lithium UPS Netpack, 11000 VA, 11000 W, Input: Hardwired, Outputs: (8) C13, (8) C39, Hardwired, Rack/tower, 4U, Gigabit Network card included, Rack-mounting kit included.

Form factor Rackmount/Tower
UPS topology Double-conversion (Online)
Output power 9000W to 12000W
Weight 64,800.00kg

Power
Output voltage regulation+/- 1%
Input power factor0.99
Output power11000 W
Input operation voltage (min)176 V
Input operation voltage (max)276 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency97%
Output power capacity11 kVA
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Noise level37 dB
Features
UPS topologyDouble-conversion (Online)
WaveformSine
Output voltage regulation+/- 1%
Input power factor0.99
Output power11000 W
Input operation voltage (min)176 V
Input operation voltage (max)276 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency97%
Noise level37 dB
Output power capacity11 kVA
Input frequency40 - 70 Hz
Auto shut-offYes
Ports & interfaces
USB portYes
Serial interfaceYes
Serial interface typeRS-232

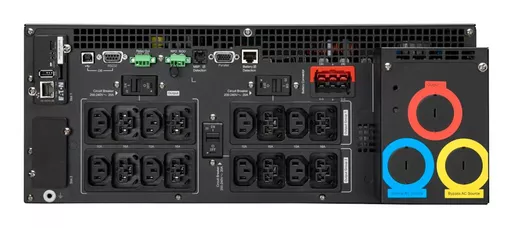

AC outlets quantity16 AC outlet(s)
AC outlet typesC39 coupler, C13 coupler
Power plugHardwire
Network card slotYes
Battery
Battery capacity12 Ah
Battery technologyLithium-Ion (Li-Ion)
Hot-swap batteryNo
Battery capacity12000 mAh
Design
Rack capacity4U
Form factorRackmount/Tower
Product colourBlack, Silver
CertificationIEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3
Display typeLCD
Network card slotYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Technical details
Sustainability certificatesENERGY STAR
Doesn't containLead, Mercury, Cadmium
Compliance certificatesLow Voltage Directive (LVD), CB, Electromagnetic Compatibility (EMC), RoHS, REACH, CE, cULus, UKCA, RCM
Battery capacity12000 mAh
Certificates
CertificationIEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesLow Voltage Directive (LVD), CB, Electromagnetic Compatibility (EMC), RoHS, REACH, CE, cULus, UKCA, RCM
Packaging content
Quick installation guideYes
Cables includedUSB cable
Rack mount kitYes
Management card includedYes
BracketYes
Certification
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Sustainability
Sustainability certificatesENERGY STAR
Doesn't containLead, Mercury, Cadmium
Weight & dimensions
Weight64.8 kg
Width440 mm
Height174 mm
Depth724 mm
Packaging data
Quick installation guideYes
Cables includedUSB cable
Rack mount kitYes
BracketYes
Management card includedYes
Other features
Size (imperial)48.3 cm (19")
