SKU: 9SX1000IMBS  |   Brand: Eaton

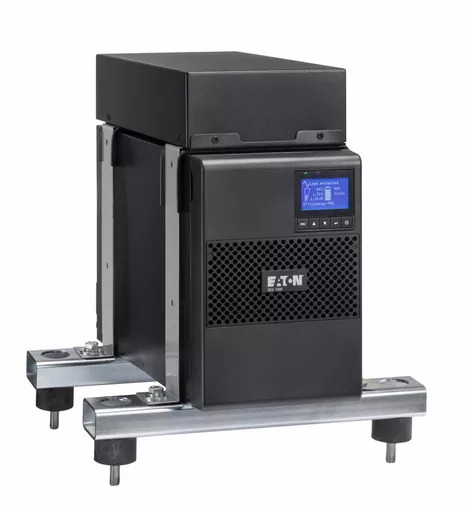

Eaton 9SX1000IMBS uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 6 AC outlet(s)

SKU: 9SX1000IMBS  |   Brand: Eaton

Eaton 9SX1000IMBS uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 6 AC outlet(s)

0 in stock

£764.70 ex. VAT

Figures are exclusive of VAT.



Product colour Black
Output power 500W to 1000W
UPS topology Double-conversion (Online)
Form factor Tower
Weight 15,000.00kg

Power
Output power factor0.9
Input power factor0.99
Output power900 W
Input operation voltage (min)120 V
Input operation voltage (max)276 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency89%
Power factor0.9
Output voltage Total Harmonic Distortion (THD)3%
Output power capacity1 kVA
Efficiency (ECO mode)94%
ECO modeYes
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Number of output phases1
Number of input phases1
Power protection featuresOverdischarge
Noise level41 dB
Features
Output frequency50/60 Hz
UPS topologyDouble-conversion (Online)
WaveformSine
Number of output phases1
Number of input phases1
Output power factor0.9
Input power factor0.99
Output power900 W
Input operation voltage (min)120 V
Input operation voltage (max)276 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency89%
Power protection featuresOverdischarge
Power factor0.9
Output voltage Total Harmonic Distortion (THD)3%
Noise level41 dB
Output power capacity1 kVA
Efficiency (ECO mode)94%
ECO modeYes
Input frequency40/70 Hz
Ports & interfaces
USB portYes
Serial interfaceYes
Serial interface typeRS-232
AC outlets quantity6 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
USB 2.0 ports quantity1
Serial ports quantity1
USB port typeUSB Type-B
Battery
Number of batteries supported3
Battery voltage12 V
Battery capacity9 Ah
Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load6 min
Automatic battery testYes
Design
Form factorTower
Product colourBlack
CertificationIEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC DNV GL
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 96%
Operating altitude0 - 3000 m
Technical details
Output frequency50/60 Hz
Compliance certificatesCE
Weight & dimensions
Weight15 kg
Width160 mm
Height252 mm
Depth387 mm
Packaging data
Quick installation guideYes
Cables includedInput power cable, Serial, USB cable
Rack mount kitNo
Certificates
CertificationIEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC DNV GL
Packaging content
Quick installation guideYes
Cables includedInput power cable, Serial, USB cable
Rack mount kitNo
