SKU: AIR-AP1542I-E-K9  |   Brand: Cisco

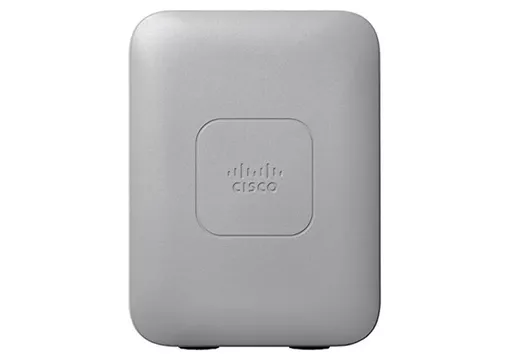

Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling Mountable (AIR-AP1542I-E-K9)

SKU: AIR-AP1542I-E-K9  |   Brand: Cisco

Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling Mountable (AIR-AP1542I-E-K9)

0 in stock

£705.29 ex. VAT

Figures are exclusive of VAT.



The Cisco Aironet 1540 Series Access Point, with IEEE’s 802.11ac Wave 2 support, offers a data rate of up to 867 Mbps on a 5-GHz radio, enabling a total aggregated dual-radio data rate of up to 1.1 Gbps. Ideal for rugged outdoor environments, the Aironet 1815 Series delivers industry-leading performance for highly secure and reliable wireless connections and provides a superior mobility end-user experience.

Maximum data transfer rate 867 Mbit/s
5 GHz Y
2.4 GHz Y
Weight 1.38kg

Data transmission
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate867 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Country of originMexico
Transmitting power27 dBmW
Reset buttonYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates10,100,1000 Mbit/s
CertificationIEC 60529 IP67, NEMA 250-2008, NEMA 250-2008, EN 60068-2-5, MIL-STD-810, UL60950, CAN/CSA-C22.2 # 60950, IEC 60950, EN 60950, EN61000-4-5 4, EN61000-4-4 4, EN61000-4-3 4, EN61000-4-2 2, EN60950 IV; FCC 15.247, 15.407; FCC OET-65C, RSS-210, RSS-102, AS/NZS 4268.2003, ARIB-STD 66, ARIB-STD T71, EN 300 328, EN 301 893; FCC 15.107, 15.109; ICES-003; EN 301 489-1, -17
Maximum data transfer rate867 Mbit/s
MIMO typeMulti User MIMO
MIMOYes
Network
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x
Certificates
CertificationIEC 60529 IP67, NEMA 250-2008, NEMA 250-2008, EN 60068-2-5, MIL-STD-810, UL60950, CAN/CSA-C22.2 # 60950, IEC 60950, EN 60950, EN61000-4-5 4, EN61000-4-4 4, EN61000-4-3 4, EN61000-4-2 2, EN60950 IV; FCC 15.247, 15.407; FCC OET-65C, RSS-210, RSS-102, AS/NZS 4268.2003, ARIB-STD 66, ARIB-STD T71, EN 300 328, EN 301 893; FCC 15.107, 15.109; ICES-003; EN 301 489-1, -17
Features
2.4 GHzYes
5 GHzYes
Transmitting power27 dBmW
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate867 Mbit/s
Maximal-Ratio Combining (MRC)Yes
Dynamic Frequency Selection (DFS)Yes
Cyclic Shift Diversity (CSD)Yes
MIMO typeMulti User MIMO
MIMOYes
Security
Security algorithmsEAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, IPSec, WPA, WPA2
MAC address filteringYes
Ports & interfaces
WAN connectionEthernet (RJ-45)
Ethernet LAN (RJ-45) ports1
Power
Power plug typeType C
Power consumption (typical)13 W
Design
International Protection (IP) codeIP67
Country of originMexico
Product colourWhite
Reset buttonYes
LED indicatorsYes
CertificationIEC 60529 IP67, NEMA 250-2008, NEMA 250-2008, EN 60068-2-5, MIL-STD-810, UL60950, CAN/CSA-C22.2 # 60950, IEC 60950, EN 60950, EN61000-4-5 4, EN61000-4-4 4, EN61000-4-3 4, EN61000-4-2 2, EN60950 IV; FCC 15.247, 15.407; FCC OET-65C, RSS-210, RSS-102, AS/NZS 4268.2003, ARIB-STD 66, ARIB-STD T71, EN 300 328, EN 301 893; FCC 15.107, 15.109; ICES-003; EN 301 489-1, -17
Antenna
Antennas quantity2
Antenna gain level (max)5 dBi
Antenna featuresIntegrated antenna
Technical details
Transmitting power27 dBmW
Reset buttonYes
Products per shipping (inner) case1 pc(s)
Harmonized System (HS) code85176990
Indication
LED indicatorsYes
Software
Maximal-Ratio Combining (MRC)Yes
Dynamic Frequency Selection (DFS)Yes
Cyclic Shift Diversity (CSD)Yes
Weight & dimensions
Width150 mm
Depth200 mm
Weight1.25 kg
Height61 mm
Package width133.3 mm
Package depth260.4 mm
Package height228.6 mm
Package weight1.38 kg
Packaging data
Package width133.3 mm
Package depth260.4 mm
Package height228.6 mm
Package weight1.38 kg
Operational conditions
Operating temperature (T-T)-40 - 65 °C
Storage temperature (T-T)-40 - 85 °C
Logistics data
Products per master (outer) case1 pc(s)
Quantity per pack1 pc(s)
Harmonized System (HS) code85176990
