SKU: AIR-AP1815I-E-K9C  |   Brand: Cisco

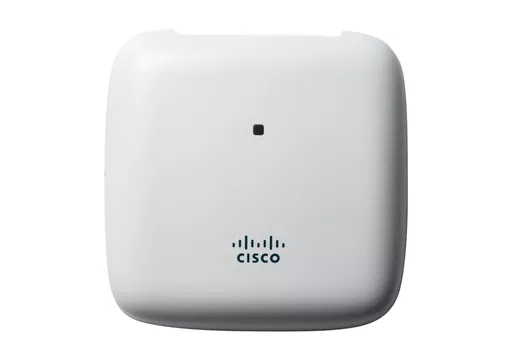

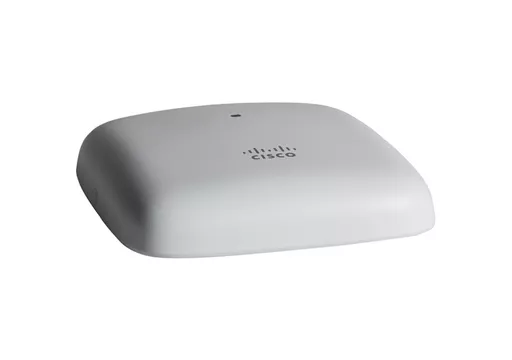

Cisco Aironet 1815I-E-K9C Controllerless Wi-Fi Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling Mount (Bracket Included) (AIR-AP1815I-E-K9C)

SKU: AIR-AP1815I-E-K9C  |   Brand: Cisco

Cisco Aironet 1815I-E-K9C Controllerless Wi-Fi Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling Mount (Bracket Included) (AIR-AP1815I-E-K9C)

0 in stock

£342.78 ex. VAT

Figures are exclusive of VAT.



The Cisco Mobility Express is a controllerless Wi-Fi Management solution embedded on the Access Points. Cisco Aironet 1815i with Mobility Express code becomes the easiest and the most cost-effective way to set up, configure and monitor your Wi-Fi network. With IEEE’s 802.11ac Wave 2 support, it offers a data rate of up to 867 Mbps on a 5-GHz radio, enabling a total aggregated dual-radio data rate of up to 1 Gbps. Ideal for small and medium-sized networks, the Aironet 1815i delivers industry-leading performance for highly secure and reliable wireless connections and provides a superior mobility end-user experience.

Maximum data transfer rate 1000 Mbit/s
5 GHz Y
2.4 GHz Y
Weight 0.85kg

Data transmission
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate1000 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Country of originMexico
Transmitting power4 dBmW
Frequency band2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
VLAN supportYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates10,100,1000 Mbit/s
Channels quantity29 channels
CertificationUL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 /-17 (Europe) EN 50385
Maximum data transfer rate1000 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)Yes
Internal memory1024 MB
Flash memory256 MB
Built-in processorYes
Wireless LAN features
Frequency band2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
Channels quantity29 channels
Network
InternalNo
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Management features
VLAN supportYes
Certificates
CertificationUL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 /-17 (Europe) EN 50385
Software
Bundled softwareMobility Express
Memory
Internal memory1024 MB
Flash memory256 MB
Features
2.4 GHzYes
5 GHzYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Transmitting power4 dBmW
Frequency band2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
VLAN supportYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates10,100,1000 Mbit/s
Channels quantity29 channels
Maximum data transfer rate1000 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Internal memory1024 MB
Flash memory256 MB
Built-in processorYes
Security
Security algorithms802.1x RADIUS, AES, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2
Remote Authentication Dial-In User Service (RADIUS)Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Power
Power plug typeType C
Power over Ethernet (PoE)Yes
Design
PlacementTable
Country of originMexico
Product colourWhite
InternalNo
LED indicatorsYes
CertificationUL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 /-17 (Europe) EN 50385
Antenna
Antenna typeInternal
Antenna gain level (max)4 dBi
Technical details
Transmitting power4 dBmW
Products per shipping (inner) case1 pc(s)
Processor
Built-in processorYes
Indication
LED indicatorsYes
Weight & dimensions
Width150.8 mm
Depth150.8 mm
Weight400 g
Height33 mm
Package width220.7 mm
Package depth239.8 mm
Package height69.8 mm
Package weight848.07 g
Packaging data
Package width220.7 mm
Package depth239.8 mm
Package height69.8 mm
Package weight848.07 g
Bundled softwareMobility Express
Packaging content
Bundled softwareMobility Express
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 70 °C
Storage relative humidity (H-H)10 - 90%
Operating altitude0 - 3000 m
Non-operating altitude0 - 4500 m
Logistics data
Products per master (outer) case1 pc(s)
Quantity per pack1 pc(s)
