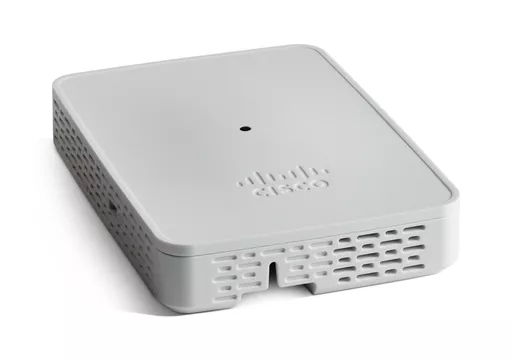

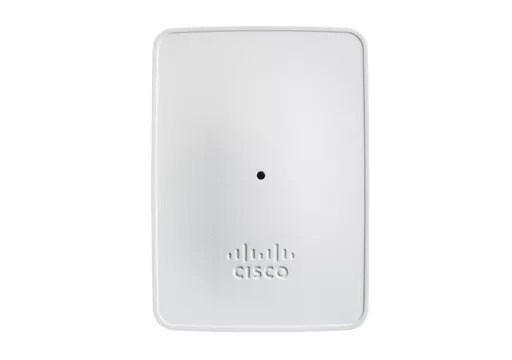

Cisco Business 143ACM 802.11ac 2x2 Wave 2 Mesh Extender 1 GbE Port - Wall Mount, Limited Lifetime Protection (CBW143ACM-E-UK) - Requires Business Wireless Access Points

SKU: CBW143ACM-E-UK | Brand: Cisco

Cisco Business 143ACM 802.11ac 2x2 Wave 2 Mesh Extender 1 GbE Port - Wall Mount, Limited Lifetime Protection (CBW143ACM-E-UK) - Requires Business Wireless Access Points

SKU: CBW143ACM-E-UK | Brand: Cisco

Cisco Business 143ACM 802.11ac 2x2 Wave 2 Mesh Extender 1 GbE Port - Wall Mount, Limited Lifetime Protection (CBW143ACM-E-UK) - Requires Business Wireless Access Points

0 in stock

£85.71 ex. VAT

Figures are exclusive of VAT.

+ Description

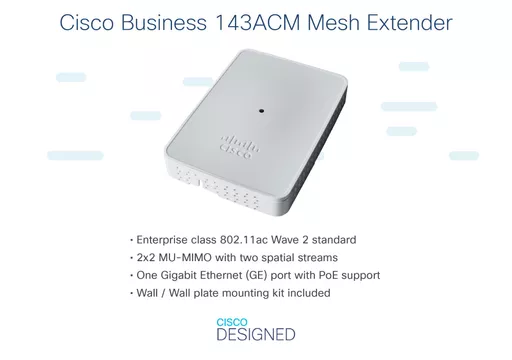

The Cisco Business 143ACM Mesh Extender seamlessly works with Cisco Business Wireless access points to provide expanded Wi-Fi coverage and capacity without sacrificing performance.

This 2x2 ultra-compact mesh extender can be easily mounted on a wall.

+ Tech Specs

Maximum data transfer rate	867 Mbit/s
2.4 GHz	Y
5 GHz	Y
Weight	0.50kg

Attributes

Data transmission
Maximum data transfer rate	867 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Country of origin	China
Transmitting power	20 dBmW
Frequency band	2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
Number of users	400 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channels quantity	29 channels
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 CC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 FCC OET-65C RSS-102
Maximum data transfer rate	867 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Internal memory	256 MB
Flash memory	128 MB
Built-in processor	Yes
Processor frequency	710 MHz
Wireless LAN features
Frequency band	2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
Channels quantity	29 channels
Network
Number of users	400 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security
Cable lock slot	Yes
Security algorithms	WPA, WPA2, WPA3, WPA2-Enterprise
Remote Authentication Dial-In User Service (RADIUS)	Yes
Certificates
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 CC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 FCC OET-65C RSS-102
Memory
Internal memory	256 MB
Flash memory	128 MB
Features
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Transmitting power	20 dBmW
Frequency band	2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
Number of users	400 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channels quantity	29 channels
Maximum data transfer rate	867 Mbit/s
Dynamic Frequency Selection (DFS)	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Internal memory	256 MB
Flash memory	128 MB
Built-in processor	Yes
Processor frequency	710 MHz
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power plug type	Type C
Power supply type	AC Power Adapter, included
Power over Ethernet (PoE)	No
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Design
Placement	Wall
Country of origin	China
Product colour	White
LED indicators	Yes
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 CC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 FCC OET-65C RSS-102
Cable lock slot	Yes
Cable lock slot type	Kensington
Market segment	Business
Antenna
Antenna type	Internal
Antenna gain level (max)	3 dBi
Antenna features	Integrated antenna
Technical details
Transmitting power	20 dBmW
Antenna	2X2:2SS – 80 MHz
Products per shipping (inner) case	1 pc(s)
Harmonized System (HS) code	85176990
Processor
Built-in processor	Yes
Indication
LED indicators	Yes
Software
Dynamic Frequency Selection (DFS)	Yes
Weight & dimensions
Width	140 mm
Depth	89 mm
Weight	202 g
Height	31.5 mm
Package width	168.3 mm
Package depth	174.6 mm
Package height	82.5 mm
Package weight	501 g
Packaging data
Package width	168.3 mm
Package depth	174.6 mm
Package height	82.5 mm
Package weight	501 g
Number of products included	1 pc(s)
Packaging content
Number of products included	1 pc(s)
Other features
Antenna	2X2:2SS – 80 MHz
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4500 m
Logistics data
Products per master (outer) case	1 pc(s)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
