SKU: CR1500-K101-C500  |   Brand: Code Corporation

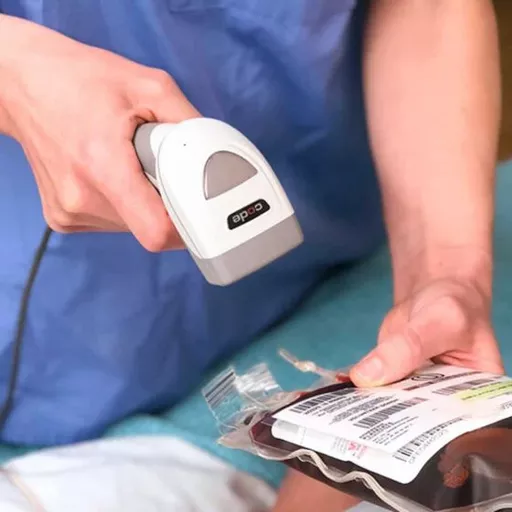

Code Corporation CR1500 Handheld bar code reader 2D CMOS White, Light grey

SKU: CR1500-K101-C500  |   Brand: Code Corporation

Code Corporation CR1500 Handheld bar code reader 2D CMOS White, Light grey

0 in stock

£199.57 ex. VAT

Figures are exclusive of VAT.



Engineered for Precision in High-Stakes Healthcare Environments
The CR1500 is one of the smallest, most powerful barcode readers on the market, purpose-built to support seamless clinical workflows. Whether you are scanning patient wristbands at the bedside, tracking medication in the pharmacy, or managing surgical instruments in the OR, the CR1500 delivers lightning-fast proprietary processing and patented dual-field optics.

From reflective surfaces in darkened patient rooms to high-density codes on curved scalpel handles, its Near-Zero-Miss deCode® ensures accuracy on any surface, in any condition.

Infection Control & Durability
Pathogen control is paramount. The CR1500 features Level 3 PVC-Free CodeShield® plastics, specifically designed to withstand the harshest hospital-grade disinfectants. With a seamless body design and an IP54 sealing rating, the device is protected against dust and moisture, making frequent cleaning a simple, safe part of your routine.

Flexible Configurations for Every Workflow
To meet the diverse needs of your facility, the CR1500 is available in two distinct kit configurations:

Mobile Handheld Kit: Includes a 6-ft straight USB cable. Its lightweight, ergonomic design is ideal for mobile carts (COWs/WOWs) or bedside administration where portability is key.

Stationary Hands-Free Kit (US2 Stand): Adds a weighted, disinfectant-ready US2 Presentation Stand. This configuration is perfect for admissions desks, labs, or pharmacy counters. The scanner automatically switches to Presentation Mode when docked, allowing for high-volume, hands-free scanning that keeps clinical staff focused on patient care.

Advanced Integration & Data Control

Out of the box, the CR1500 scans all standard barcodes, but its true power lies in its customization. With the exclusive ScanFlex JS (JavaScript) platform, your IT team can easily meet complex data editing requirements, validation, and parsing for effortless integration into any EMR or laboratory information system.

Sensor type CMOS
Connectivity technology Wired
Power source type DC
Scanner type 2D
Type Handheld bar code reader
Weight 116.00kg

Scanning
TypeHandheld bar code reader
Linear (1D) barcodes supportedJAN, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, MSI-Plessey, Matrix 2 of 5, Interleaved 2 of 5, Pharmacode, Plessey, Telepen, Trioptic, PDF417
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Sensor typeCMOS
Scanner type2D
Pitch reading angle-60 - 60°
Light levels (direct sunlight)0 - 96890 lx
Optical sensor resolution (W x H)1280 x 960 pixels
Working distance range5 - 328 mm
Horizontal field of view30°
Vertical field of view20°
Ports & interfaces
Connectivity technologyWired
Cable length1.83 m
Standard interfacesRS-232, USB
Performance
Protection featuresShock resistant, Drop resistant
International Protection (IP) codeIP54
Product colourWhite, Light grey
CertificationISO15418, ISO15434, HIBC UDI
Image formats supportedJPEG
Ambient lightingYes
Print contrast15%
Light levels (direct sunlight)0 - 96890 lx
Design
TypeHandheld bar code reader
Protection featuresShock resistant, Drop resistant
International Protection (IP) codeIP54
Product colourWhite, Light grey
CertificationISO15418, ISO15434, HIBC UDI
Power
Power consumption350 mA
Power source typeDC
AC adapter output voltage5 V
Weight & dimensions
Width52 mm
Depth77 mm
Height132 mm
Weight116 g
Technical details
TypeHandheld bar code reader
Protection featuresShock resistant, Drop resistant
International Protection (IP) codeIP54
Product colourWhite, Light grey
CertificationISO15418, ISO15434, HIBC UDI
Packaging data
Cables includedUSB
Operational conditions
Storage temperature (T-T)-30 - 65 °C
Operating temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)5 - 95%
Light levels (direct sunlight)0 - 96890 lx
Packaging content
Cables includedUSB
