SKU: CX4184-3251  |   Brand: Socket Mobile

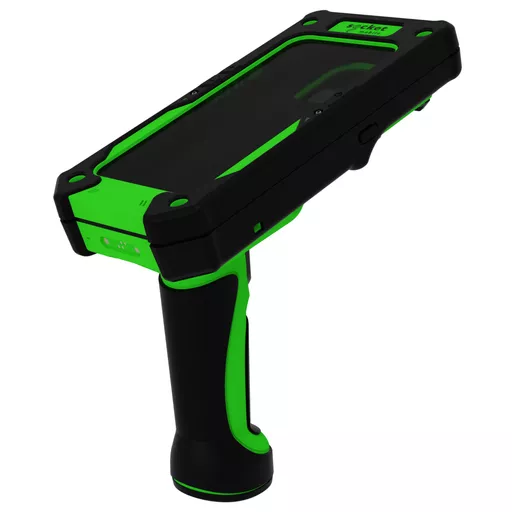

Socket Mobile XtremeScan Grip XG940 Handheld bar code reader 1D/2D LED Black, Green

SKU: CX4184-3251  |   Brand: Socket Mobile

Socket Mobile XtremeScan Grip XG940 Handheld bar code reader 1D/2D LED Black, Green

4 in stock

£614.90 ex. VAT

Figures are exclusive of VAT.



The scanner's integration with a heavy-duty case is designed to withstand demanding industrial environments, and the pistol grip handle provides an extra level of comfort and convenience for constant scanning during long shifts. The XtremeScan case provides IP67-sealed housing for protection from dust, water exposure, and water immersion. It includes an integrated wireless charger, so you can charge the iPhone without removing it from the case.

With a compatible iPhone, the XtremeScan Grip XG940 1D/2D Universal barcode scanner becomes a versatile and powerful mobile solution that can be used with a variety of industrial applications. The XG940 features fast 1D/2D, omnidirectional scanning for printed or on-screen barcodes with a highly visible and safe LED aimer. Depending on the barcode symbology, width, size, and label media, the XG940 can scan from 1.5 inches to 19.5 inches (3.8 to 49.5 cm). The industrial-grade, rugged housing can handle multiple drops onto concrete.

Standard interfaces Bluetooth
Power source type Battery
Connectivity technology Wireless
Type Handheld bar code reader
Sensor type LED
Scanner type 1D/2D

Scanning
TypeHandheld bar code reader
Linear (1D) barcodes supportedCodabar, Code 128, Code 93, Code 39, EAN-8, EAN-13, JAN-13, JAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Interleaved 2 of 5, ISBT 128, Trioptic, UPC-A, UPC-E
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, DotCode, Grid Matrix Code, Han Xin, MaxiCode, MicroPDF417, Micro QR Code, PDF417, QR Code
Tilt reading angle33.5 - 44.5°
Sensor typeLED
Scanner type1D/2D
Light levels (direct sunlight)0 - 100000 lx
Optical sensor resolution (W x H)1280 x 960 pixels
Ports & interfaces
Wireless range10 m
Connectivity technologyWireless
Bluetooth version2.1+EDR
Standard interfacesBluetooth
Performance
Protection featuresDrop resistant
LED indicatorsYes
International Protection (IP) codeIP67
Product colourBlack, Green
Country of originChina
Light levels (direct sunlight)0 - 100000 lx
Design
TypeHandheld bar code reader
Protection featuresDrop resistant
LED indicatorsYes
International Protection (IP) codeIP67
Product colourBlack, Green
Power
Power source typeBattery
Battery life25 h
Charging time8 h
Battery voltage3.7 V
Number of reads per charge500
Battery technologyLithium-Ion (Li-Ion)
Battery capacity700 mAh
Charging port typeUSB Type-C
Technical details
TypeHandheld bar code reader
Protection featuresDrop resistant
LED indicatorsYes
Mobile operating systems supportediOS
International Protection (IP) codeIP67
Product colourBlack, Green
Warranty period1 year(s)
Compliance certificatesUKCA, RoHS, Federal Communications Commission (FCC), CE
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 60%
Drop resistance3.1 m
Light levels (direct sunlight)0 - 100000 lx
Battery
Battery weight12.5 g
Battery capacity2.59 Wh
Rechargeable batteryYes
Number of battery cells1
Other features
Mobile operating systems supportediOS
