SKU: DS4678-SR00007ZZWW  |   Brand: Zebra

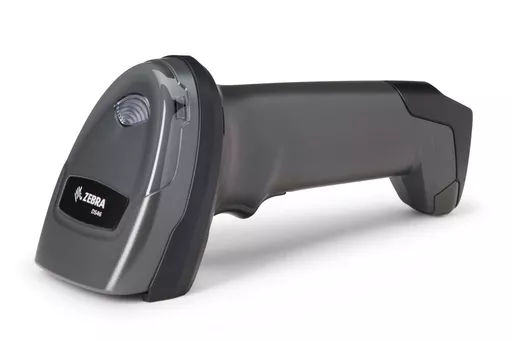

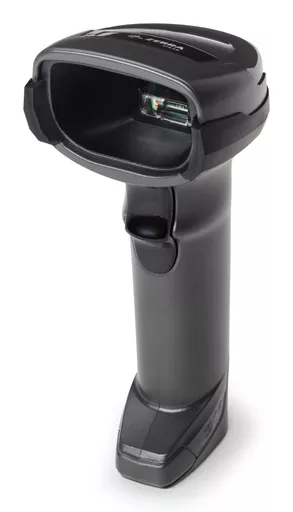

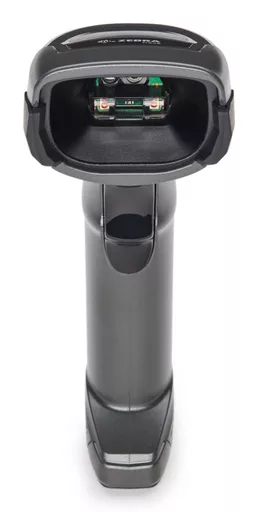

Zebra DS4678 Handheld Scanner

SKU: DS4678-SR00007ZZWW  |   Brand: Zebra

Zebra DS4678 Handheld Scanner

0 in stock

£220.64 ex. VAT

Figures are exclusive of VAT.



The cordless DS4678 offers the versatility and scanning performance to scan items of all sizes, read barcodes in nearly any condition and handle a wide range of transactions. Bulky items in a shopping cart, a customer’s driver’s license, a mobile coupon, tiny barcodes in the jewelry department-the DS4678 can capture them all. It delivers over 13 hours of continuous scanning on a single charge, with a compact Presentation cradle to fit any point of sale.

Standard interfaces Bluetooth
Sensor type LED
Type Handheld bar code reader
Product colour Black
Power source type Battery
Connectivity technology Wireless
Scanner type 1D/2D
Weight 225.00kg

Scanning
TypeHandheld bar code reader
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Yaw reading angle-60 - 60°
Wavelength660 nm
Tilt reading angle0 - 360°
Sensor typeLED
Scanner type1D/2D
Pitch reading angle-60 - 60°
Light levels (direct sunlight)0 - 107000 lx
Optical sensor resolution (W x H)1280 x 800 pixels
Horizontal field of view31.6°
Vertical field of view22.6°
Ports & interfaces
Connectivity technologyWireless
Bluetooth version5.2
Bluetooth Low Energy (BLE)Yes
Standard interfacesBluetooth
Performance
LED indicatorsYes
Built-in processorYes
Processor frequency800 MHz
International Protection (IP) codeIP52
Product colourBlack
Image formats supportedBMP, JPEG, TIFF
Vibration functionYes
Light levels (direct sunlight)0 - 107000 lx
Design
TypeHandheld bar code reader
LED indicatorsYes
International Protection (IP) codeIP52
Product colourBlack
Power
Power source typeBattery
Charging time2.25 h
Number of reads per charge50000
Battery technologyLithium-Ion (Li-Ion)
Battery capacity2500 mAh
Weight & dimensions
Width66 mm
Depth107 mm
Height168 mm
Weight225 g
Technical details
TypeHandheld bar code reader
LED indicatorsYes
Built-in processorYes
Processor frequency800 MHz
International Protection (IP) codeIP52
Product colourBlack
Warranty period3 year(s)
Compliance certificatesFederal Communications Commission (FCC), Trade Agreements Act (TAA)
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Drop resistance1.8 m
Light levels (direct sunlight)0 - 107000 lx
