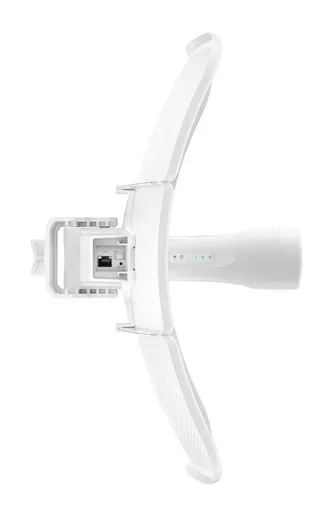

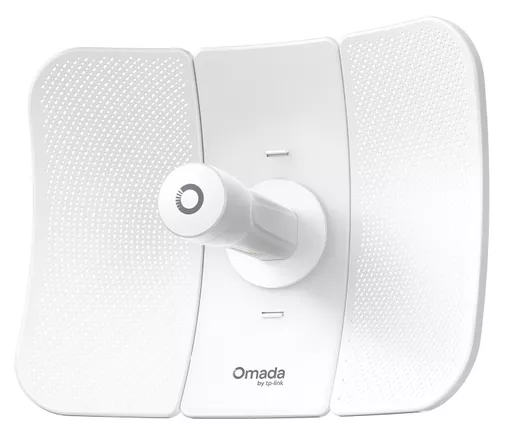

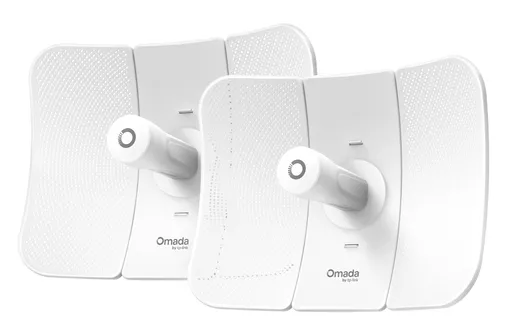

TP-Link Beam Bridge 5 UR KIT Network bridge 867 Mbit/s White

SKU: BEAM BRIDGE 5 UR KIT | Brand: TP-LINK

TP-Link Beam Bridge 5 UR KIT Network bridge 867 Mbit/s White

3 in stock

£124.94 ex. VAT

Figures are exclusive of VAT.

+ Description

Product Overview

Omada 5 GHz 867 Mbps Indoor/Outdoor Wireless Bridge Beam Bridge 5 UR KIT is an enterprise-grade Wi‑Fi bridge kit engineered for ultra-range transmission up to 9.3 miles (15 km). It delivers reliable pointto-point connectivity in remote outdoor environments—ideal for forests, mining sites, islands, and other hard-to-reach locations where extending network access is critical.

Business-Grade 15-km Ultra-Range Wi-Fi Connectivity

It delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission, and it is ideal for connecting remote sites in rural and hard-to-wire environments.

Effortless Plug-and-Play Setup

Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go, ideal for quick and easy deployments.

App-Guided Alignment for Optimal Performance

Simply bridge alignment with real-time signal strength visualization on the Omada app. Perfect for installations where bridges are far apart, this feature ensures optimal alignment and connectivity. The Omada app also allows users to easily verify installations, test transmission speeds, and troubleshoot connections for optimal performance.

Simple Deployment with PoE Support

1× Gigabit PoE port delivers both power and data through a single cable, cutting deployment costs and outdoor wiring complexity. It supports both 802.3af PoE and Passive PoE power supply.

Outdoor-Ready Design for Extreme Conditions

Beam Bridge 5 UR KIT supports IP65 weatherproof and 6kV lightning protection safeguard your network in harsh outdoor environments. Additionally, an extended temperature tolerance of -40 °C to 70 °C makes it ideal for extremely hot and cold environments.

Remote Monitoring & Management

Use the Omada app for easy on-site setup-no internet required. For additional flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.

+ Tech Specs

Product type	Network bridge
Maximum data transfer rate	867 Mbit/s
Weight	3,740.00kg

Attributes

Data transmission
Maximum data transfer rate	867 Mbit/s
Maximum transfer distance	15000 m
Antenna
Antenna gain level (max)	23 dBi
Antenna design	External
Antenna type	2x2
Wireless LAN features
Signal strength	27 dBm
Frequency band	5.150 - 5.850 GHz
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK
Antenna gain level (max)	23 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Output power (dBm)	5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C, FCC (Conducted Power) 5 GHz: 27 dBm in U-NII-1, 27 dBm in U-NII-3 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3
Antenna type	2x2
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Frequency band	5.150 - 5.850 GHz
Ports & interfaces
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Security
Security algorithms	EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2, SNMPv3, SSID, WPA2
Management features
Web-based management	Yes
DHCP client	Yes
LED indicators	Yes
Features
Product type	Network bridge
Product colour	White
Reset button	Yes
Surge protection	Yes
Network Time Protocol (NTP) client	Yes
International Protection (IP) code	IP65
Mean time between failures (MTBF)	360000 h
LED indicators	Yes
Internal memory	128 MB
Mounting type	Pole
Power
Power consumption (max)	15.8 W
Power source type	PoE
Power over Ethernet (PoE)	Yes
Power consumption (typical)	15.8 W
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-40 - 158 °F
Endurance
Mean time between failures (MTBF)	360000 h
Certificates
Certification	ETSI EN 300 328, ETSI EN 301 893, EN 55032, EN 55035, EN 301489-1, EN 301489-17, EN 62368-1, IEC 62368-1
Compliance certificates	Federal Communications Commission (FCC)
Technical details
Product colour	White
Operating temperature (T-T)	-40 - 158 °F
Internal memory	128 MB
Compliance certificates	Federal Communications Commission (FCC)
Weight & dimensions
Weight	1.1 kg
Width	366 mm
Depth	280 mm
Height	207 mm
Packaging content
Packaging content	• Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord
Packaging data
Package width	390 mm
Package weight	3.74 kg
Package type	Box
Package height	165 mm
Package depth	296 mm
