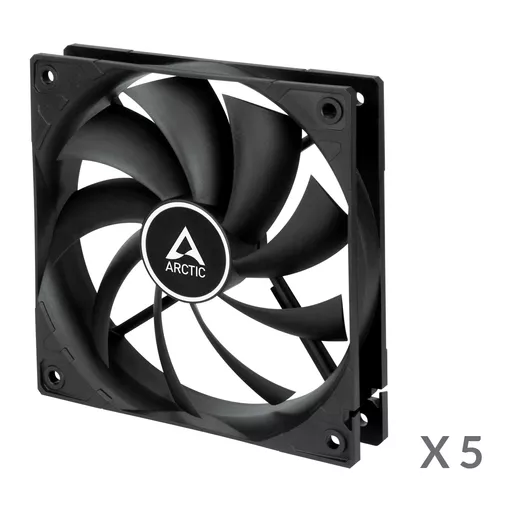

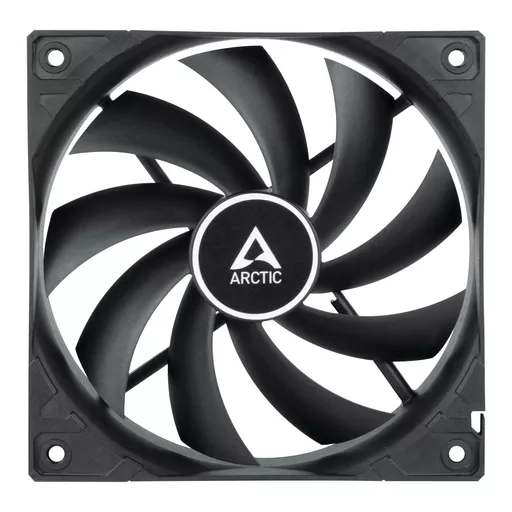

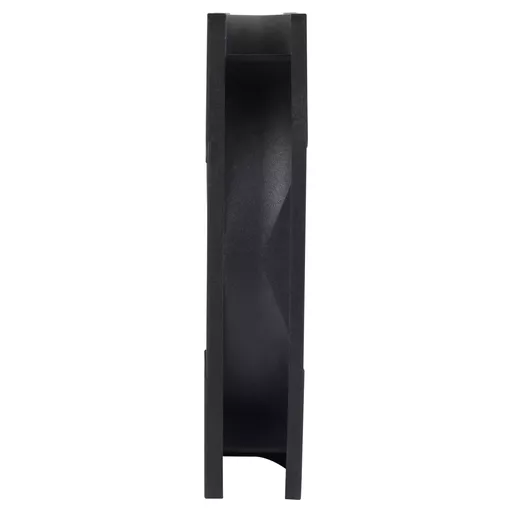

ARCTIC F12 - 120 mm Standard Case Fan

SKU: ACFAN00248A  |   Brand: ARCTIC

ARCTIC F12 - 120 mm Standard Case Fan

0 in stock

£8.14 ex. VAT

Figures are exclusive of VAT.



The F12 case fans are exceptionally quiet and cost effective solutions with efficient cooling performance. The patented low noise impeller maximizes the volume of airflow to offer optimal performance at relatively low fan speed.

Type Fan
Weight 1.00kg

Performance
Suitable locationComputer case
Fan connector3-pin
Rotational speed (min)0 RPM
Rotational speed (max)1350 RPM
Noise level0.3 sone
Bearing typeFluid Dynamic Bearing (FDB)
TypeFan
Operating temperature (T-T)0 - 40 °C
Fan diameter12 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow53 cfm
Minimum air pressure1 mmH2O
Airflow90.1 m³/h

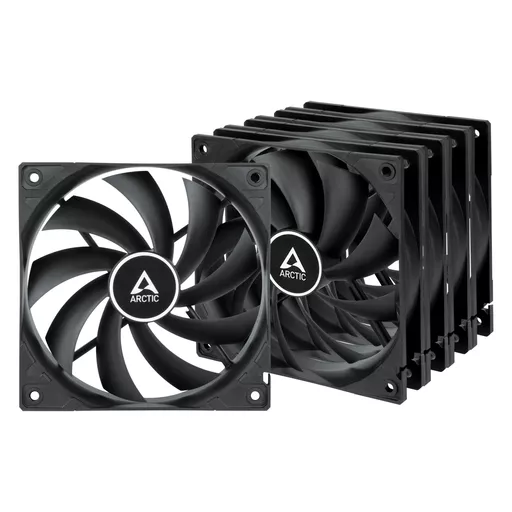

Number of fans5 fan(s)
Quantity per pack5 pc(s)
Design
Fan connector3-pin
Number of fans5 fan(s)
Product colourBlack
Cable length0.4 m
Technical details
TypeFan
Fan diameter12 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow53 cfm
Minimum air pressure1 mmH2O
Airflow90.1 m³/h
Number of fans5 fan(s)
Cable length0.4 m
Fan connector3-pin
Ports & interfaces
Fan connector3-pin
Power
Starting voltage2.7 V
Voltage12 V
Rated current0.12 A
Operational conditions
Operating temperature (T-T)0 - 40 °C
Colour
Product colourBlack
Weight & dimensions
Package depth137 mm
Package width123 mm
Package height127 mm
Width120 mm
Package weight642 g
Depth120 mm
Height25 mm
Weight107 g
Cable length0.4 m
Packaging data
Package depth137 mm
Package width123 mm
Package height127 mm
Package weight642 g

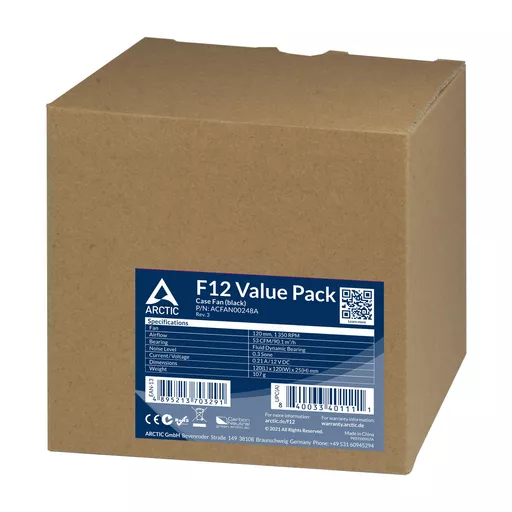

Package typeBox
Packaging content
Package typeBox
Other features
Country of originHong Kong
Harmonized System (HS) code84733080
Logistics data
Harmonized System (HS) code84733080
