SKU: ACFAN00123A  |   Brand: ARCTIC

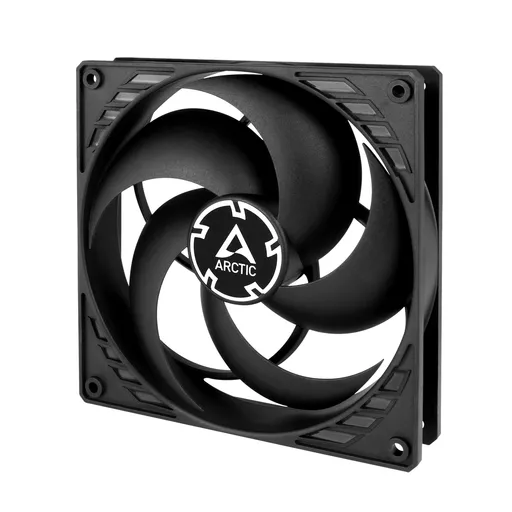

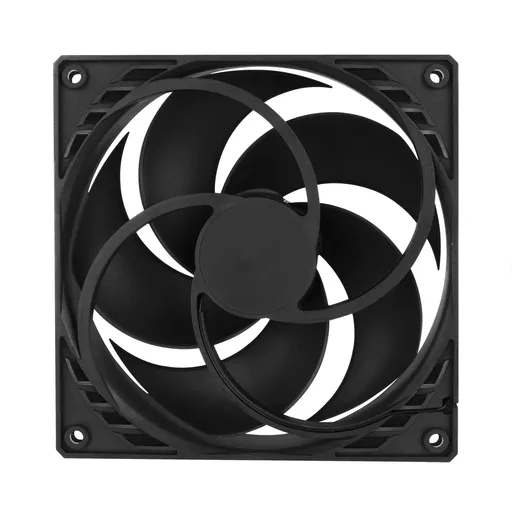

ARCTIC P14 – Pressure-optimised 140 mm Fan

SKU: ACFAN00123A  |   Brand: ARCTIC

ARCTIC P14 – Pressure-optimised 140 mm Fan

31 in stock

£4.44 ex. VAT

Figures are exclusive of VAT.



The P14 fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.

Type fan
Weight 227.00kg

Performance
Suitable locationComputer case
Fan connector3-pin
Rotational speed (max)1700 RPM
Noise level0.3 sone
Bearing typeFluid Dynamic Bearing (FDB)
Noise level (high speed)24.5 dB
TypeFan
Fan diameter14 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow72.8 cfm
Airflow123.76 m³/h
Number of fans1 fan(s)
Design
Fan connector3-pin
Number of fans1 fan(s)
Product colourBlack
Cable length0.4 m
Technical details
Noise level (high speed)24.5 dB
TypeFan
Fan diameter14 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow72.8 cfm
Airflow123.76 m³/h
Number of fans1 fan(s)
Cable length0.4 m
Fan connector3-pin
Ports & interfaces
Fan connector3-pin
Power
Starting voltage2.1 V
Voltage12 V
Rated current0.15 A
Colour
Product colourBlack
Weight & dimensions
Package depth143 mm
Package width143 mm
Package height29 mm
Width140 mm
Package weight227 g
Depth140 mm
Height27 mm
Weight191 g
Cable length0.4 m
Packaging data
Package depth143 mm
Package width143 mm
Package height29 mm
Package weight227 g
Package typeBox
Packaging content
Screws includedYes
Number of screws4
Package typeBox
Other features
Country of originChina
Harmonized System (HS) code84733080
Logistics data
Harmonized System (HS) code84733080
