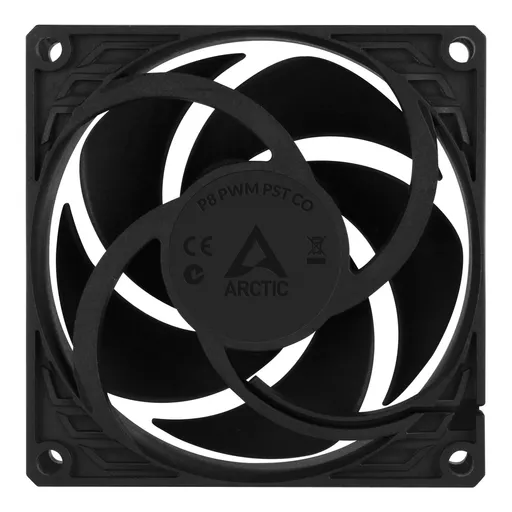

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation

SKU: ACFAN00151A  |   Brand: ARCTIC

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation

0 in stock

£5.36 ex. VAT

Figures are exclusive of VAT.



Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Type Fan
Suitable location computer case
Weight 97.00kg

Performance
Suitable locationComputer case
Fan connector4-pin
Pulse-width modulation (PWM) supportYes
Rotational speed (min)200 RPM
Rotational speed (max)3000 RPM
Noise level0.3 sone
Bearing typeFluid Dynamic Bearing (FDB)
TypeFan
Fan diameter8 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow23.4 cfm
Maximum air pressure1.9 mmH2O
Airflow40.3 m³/h
Number of fans1 fan(s)
Mounting hole pattern (W x D)71.5 x 71.5 mm
Number of fan blades5
Design
Fan connector4-pin
Number of fans1 fan(s)
Product colourBlack
Number of fan blades5
Technical details
TypeFan
Fan diameter8 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow23.4 cfm
Maximum air pressure1.9 mmH2O
Airflow40.3 m³/h
Number of fans1 fan(s)
Fan connector4-pin
Mounting hole pattern (W x D)71.5 x 71.5 mm
Ports & interfaces
Fan connector4-pin
Power
Voltage12 V
Rated current0.09 A
Colour
Product colourBlack
Weight & dimensions
Package depth26 mm
Package width82.5 mm
Package height82.5 mm
Width80 mm
Package weight97 g
Depth25 mm
Height80 mm
Weight78.5 g
Packaging data
Package depth26 mm
Package width82.5 mm
Package height82.5 mm
Package weight97 g
Package typeBox
Packaging content
Screws includedYes
Number of screws4
Package typeBox
ManualYes
Other features
Mounting hole pattern (W x D)71.5 x 71.5 mm
Country of originChina
