SKU: ACFAN00152A  |   Brand: ARCTIC

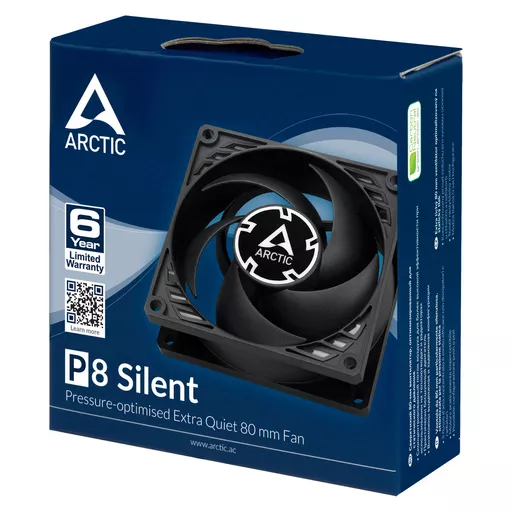

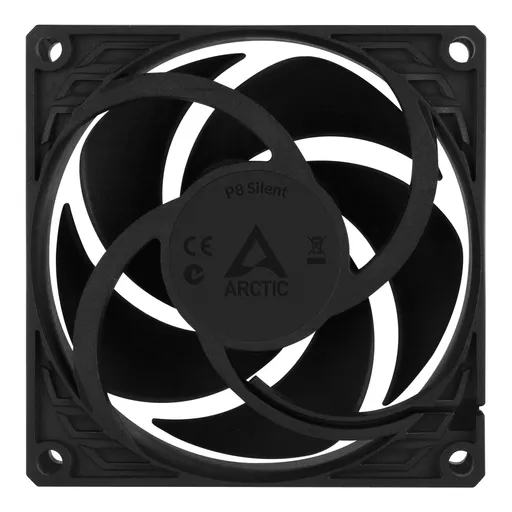

ARCTIC P8 Silent - Pressure-optimised Extra Quiet 80 mm Fan

SKU: ACFAN00152A  |   Brand: ARCTIC

ARCTIC P8 Silent - Pressure-optimised Extra Quiet 80 mm Fan

0 in stock

£3.22 ex. VAT

Figures are exclusive of VAT.



Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Type Fan

Performance
Suitable locationComputer case
Fan connector3-pin
Rotational speed (max)1600 RPM
Noise level0.08 sone
Bearing typeFluid Dynamic Bearing (FDB)
TypeFan
Fan diameter8 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow15.6 cfm
Maximum air pressure0.62 mmH2O
Airflow26.5 m³/h
Number of fans1 fan(s)
Mounting hole pattern (W x D)71.5 x 71.5 mm
Number of fan blades5
Design
Fan connector3-pin
Number of fans1 fan(s)
Product colourBlack
Cable length0.4 m
Number of fan blades5
Technical details
TypeFan
Fan diameter8 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Maximum airflow15.6 cfm
Maximum air pressure0.62 mmH2O
Airflow26.5 m³/h
Number of fans1 fan(s)
Cable length0.4 m
Fan connector3-pin
Mounting hole pattern (W x D)71.5 x 71.5 mm
Ports & interfaces
Fan connector3-pin
Power
Voltage12 V
Rated current0.06 A
Colour
Product colourBlack
Weight & dimensions
Package depth26 mm
Package width82.5 mm
Package height82.5 mm
Width80 mm
Package weight100 g
Depth25 mm
Height80 mm
Weight82 g
Cable length0.4 m
Packaging data
Package depth26 mm
Package width82.5 mm
Package height82.5 mm
Package weight100 g
Package typeBox
Packaging content
Screws includedYes
Number of screws4
Package typeBox
Other features
Mounting hole pattern (W x D)71.5 x 71.5 mm
Country of originChina
Harmonized System (HS) code84733080
Logistics data
Harmonized System (HS) code84733080
