iiyama ProLite TF1534MC-B8X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black

SKU: TF1534MC-B8X | Brand: iiyama

iiyama ProLite TF1534MC-B8X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black

0 in stock

£298.12 ex. VAT

Figures are exclusive of VAT.

+ Description

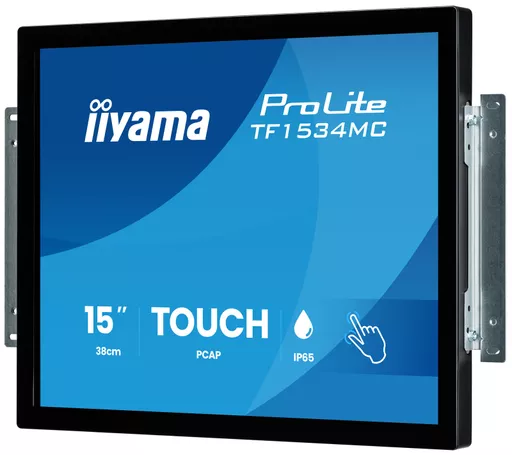

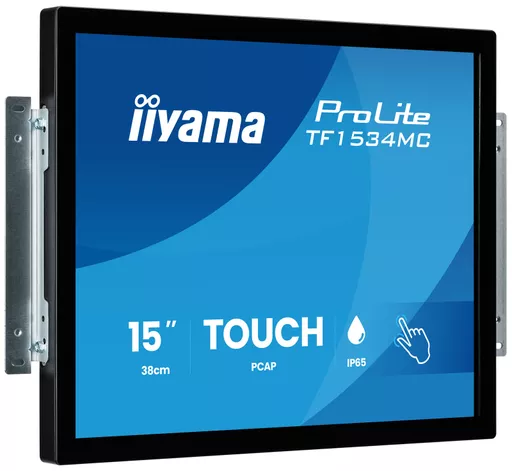

The ProLite TF1534MC-B8X is a 15” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance. With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction. For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

+ Tech Specs

Display diagonal	under 18 inches
Display resolution	1024 x 768 pixels
Product colour	Black
Built-in camera	N
VESA mounting	Y
Display technology	LED
Built-in USB hub	N
Native aspect ratio	4:3
NVIDIA G-SYNC	N
AMD FreeSync	N
Touchscreen	Y
Market positioning	Business
Family	ProLite
Weight	4.00kg

Attributes

Display
HDCP	Yes
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Display number of colours	16.2 million colours
Native aspect ratio	4:3
Maximum refresh rate	75 Hz
HD type	XGA
Display technology	LED
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	31 - 60 kHz
Viewable size, horizontal	30.4 cm
Viewable size, vertical	22.8 cm
Display resolution	1024 x 768 pixels
Response time	8 ms
Display diagonal	38.1 cm (15")
Contrast ratio (typical)	800:1
Surface hardness	7H
Display brightness (peak)	350 cd/m²
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	TN
Display diagonal (metric)	38 cm
Touchscreen technology	Projected capacitive system
Display brightness	300 cd/m²
Positional accuracy	2 mm
Audio
Built-in speaker(s)	No
Performance
Built-in speaker(s)	No
Mean time between failures (MTBF)	50000 h
Built-in camera	No
AMD FreeSync	No
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
NVIDIA G-SYNC	No
Palm rejection	Yes
Management features
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Multimedia
Built-in speaker(s)	No
Built-in camera	No
Power
Power cable length	1.8 m
Power supply type	External
Power consumption (standby)	1.5 W
Power consumption (typical)	9 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	9 kWh
Design
Market positioning	Business
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP65
Mean time between failures (MTBF)	50000 h
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	No
Headphone out	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
USB Touch port	Yes
Technical details
Cable lock slot	Yes
Mean time between failures (MTBF)	50000 h
HDMI	Yes
Product colour	Black
User controls	picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Front bezel colour	Black
Sustainability certificates	ErP
Pallet net width	91 cm
Pallet net height	2.43 m
Pallet net length	114 cm
Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Packaging content	AC adapter
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	300 cd/m²
Power supply type	External
Active display area (W x H)	304 x 228 mm
Weight (with stand)	2.7 kg
Touch method	stylus, finger, glove (latex)
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Height adjustment	No
Cable lock slot type	Kensington
Weight & dimensions
Width (with stand)	338 mm
Depth (with stand)	45 mm
Height (with stand)	267 mm
Weight (with stand)	2.7 kg
Package width	355 mm
Package depth	435 mm
Package height	165 mm
Package weight	4 kg
Width	338 mm
Weight	2.7 kg
Height	267 mm
Depth	45 mm
Packaging data
Package width	355 mm
Package depth	435 mm
Package height	165 mm
Package weight	4 kg
USB cable length	1.8 m
Power cable length	1.8 m
AC adapter included	Yes
Quick start guide	Yes

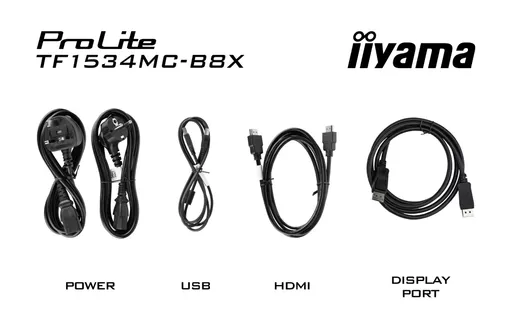

Cables included	AC, USB, HDMI, DisplayPort
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
Packaging content
Power cable length	1.8 m
Quick start guide	Yes
Cables included	AC, USB, HDMI, DisplayPort
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
AC adapter included	Yes
USB cable length	1.8 m
Sustainability
Sustainability certificates	ErP
Other features
Packaging content	AC adapter
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	300 cd/m²
Active display area (W x H)	304 x 228 mm
AC adapter included	Yes
Mean time between failures (MTBF)	50000 h
User controls	picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Touch method	stylus, finger, glove (latex)
International Protection (IP) code	IP65
Width	338 mm
Weight	2.7 kg
Height	267 mm
Depth	45 mm
Positional accuracy	2 mm
Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Quick start guide	Yes
HDMI	Yes
Surface hardness	7H
Power supply type	External
Power cable length	1.8 m
Display brightness (peak)	350 cd/m²
Touchscreen	Yes
Number of simultaneous touchpoints	10
Front bezel colour	Black
Logistics data
Pallet net width	91 cm
Pallet net height	2.43 m
Pallet net length	114 cm
