SKU: HSB3SATSASBA  |   Brand: StarTech.com

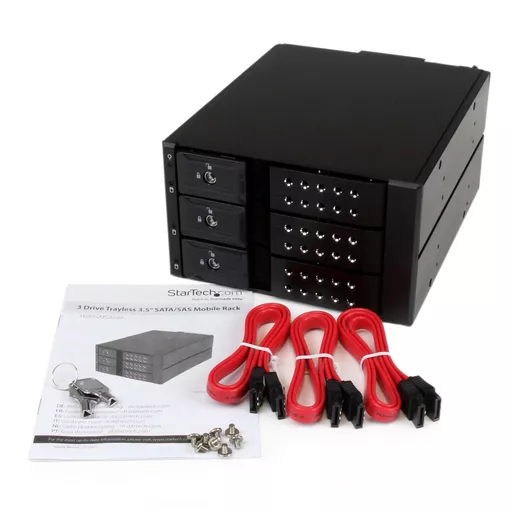

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

SKU: HSB3SATSASBA  |   Brand: StarTech.com

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

10 in stock

£63.88 ex. VAT

Figures are exclusive of VAT.



Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

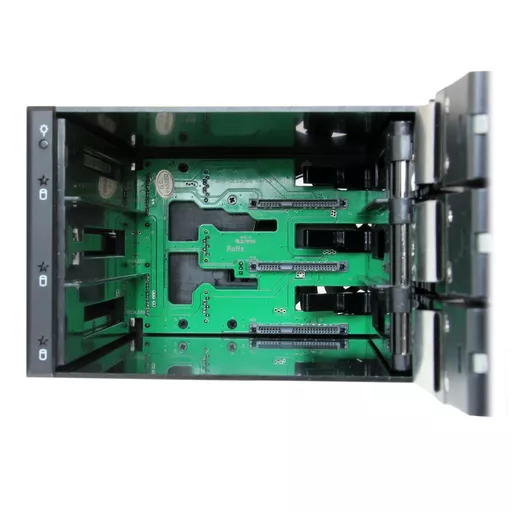

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Installed storage drive type N
Storage drives installed N
Supported storage drive types HDD
Weight 1,200.00kg

Storage
Total installed storage capacity0 TB
Hot-swap drive baysYes
Installed storage drive typeNo
Number of storage drives installed0
Supported storage drive typesHDD
Number of storage drives supported3
Storage drive interfaceSerial ATA, Serial ATA II, Serial ATA III
Storage drive size3.5"
Storage drives installedNo
Maximum supported storage capacity12 TB
Data transfer rate6 Gbit/s
Ports & interfaces
Number of SATA power connectors2
SATA power connector typeSATA 15-pin
SATA host portYes
Host ports3
Technical details
Backplanes supportYes
Number of fans1 fan(s)
Product colourBlack
InternalNo
LED indicatorsActivity, Power
Data transfer rate6 Gbit/s
Harmonized System (HS) code84717020
Compliance certificatesRoHS
Design
Number of fans1 fan(s)
Product colourBlack
InternalNo
LED indicatorsActivity, Power
Performance
Backplanes supportYes
Weight & dimensions
Width145 mm
Depth194.1 mm
Weight1.2 kg
Height110 mm
Package width253 mm
Package depth184 mm
Package height126 mm
Package weight1.2 kg
Packaging data
Package width253 mm
Package depth184 mm
Package height126 mm
Package weight1.2 kg
Cables includedSATA
Packaging content
Cables includedSATA
Operational conditions
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 85%
Other features
Compliance certificatesRoHS
Logistics data
Products per master (outer) case8 pc(s)
Master (outer) case width541 mm
Master (outer) case length391 mm
Master (outer) case height287 mm
Harmonized System (HS) code84717020
