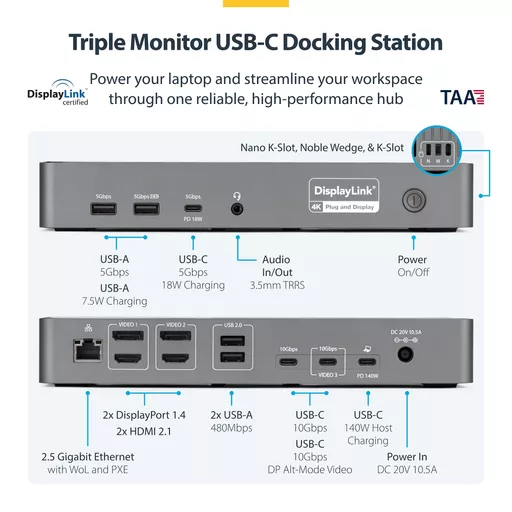

| Ports & interfaces |
|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network |
|---|
| Full duplex | Yes |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance |
|---|
| UASP support | Yes |

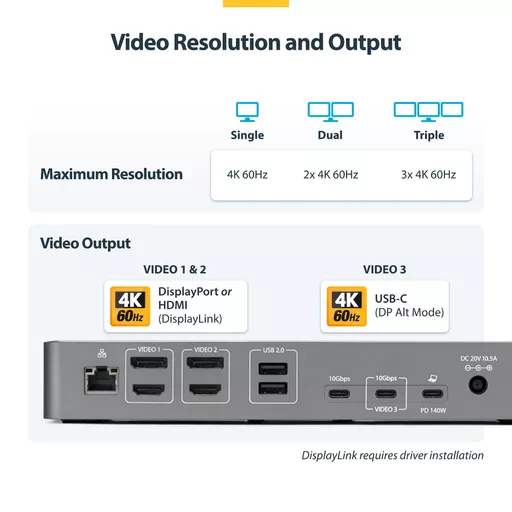

| Maximum digital resolution | 3840 x 2160 pixels |
| Full duplex | Yes |

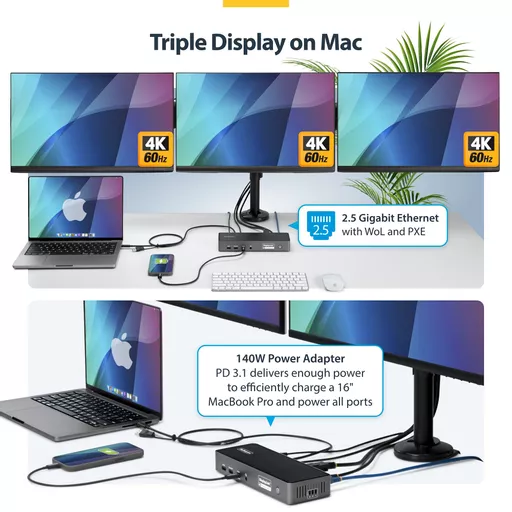

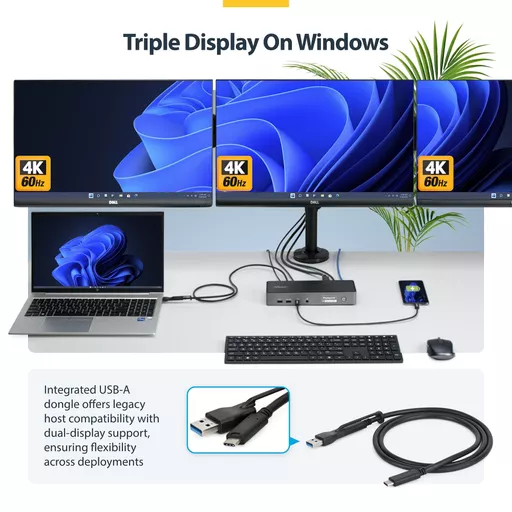

| Number of displays supported | 3 |
| On/off switch | Yes |
| Product colour | Grey |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |

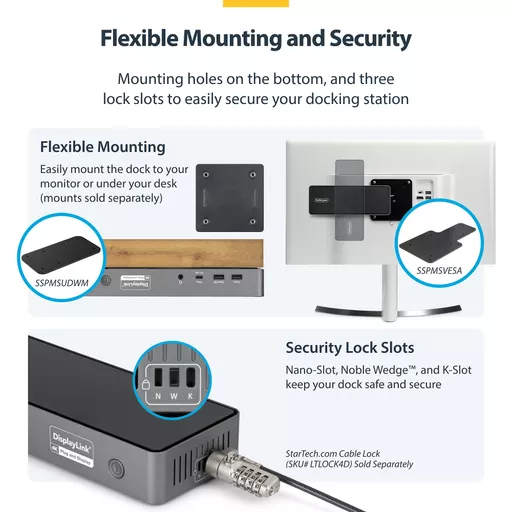

| Cable lock slot type | Kensington, Nano, Wedge |
| HD type | 4K Ultra HD |
| Technical details |
|---|
| Product colour | Grey |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| User guide | Yes |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 300 mm |
| Storage |
|---|
| Card reader integrated | No |
| Power |
|---|
| Power source type | DC |
| Input current | 2.5 A |
| Power plug type | Type M |
| Power consumption (max) | 210 W |
| Compatible power plug types | EU, UK |
| AC input voltage | 100 - 240 V |
| Output voltage | 20 V |
| Output current | 10.5 A |
| Software |
|---|

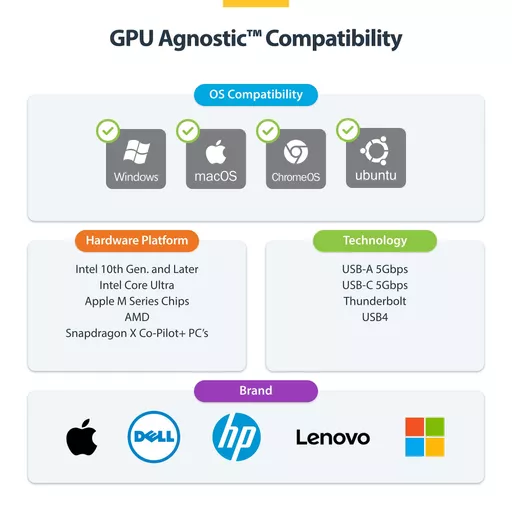

| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04, Ubuntu 24.04 LTS |
| Other operating systems supported | ChromeOS |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Design |
|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Product colour | Grey |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano, Wedge |
| Packaging data |
|---|
| Package weight | 1.2 kg |
| Package width | 169 mm |
| Package depth | 251 mm |
| Package height | 90 mm |
| Packaging content |
|---|
| User guide | Yes |
| Cables included | AC, USB Type-C |
| AC adapter included | Yes |
| Weight & dimensions |
|---|
| Package weight | 1.2 kg |
| Package width | 169 mm |
| Package depth | 251 mm |
| Package height | 90 mm |
| Logistics data |
|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 300 mm |
| Other features |
|---|
| Chipset | DisplayLink - DL6950, Genesys Logic - GL5911, Genesys Logic - GL5910, Genesys Logic - GL3590, Realtek - RTL8156B |
