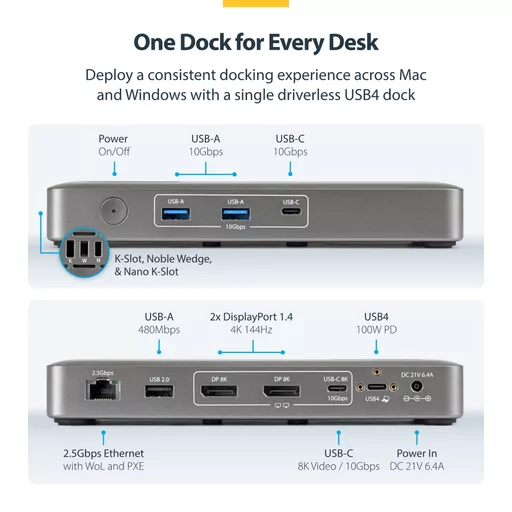

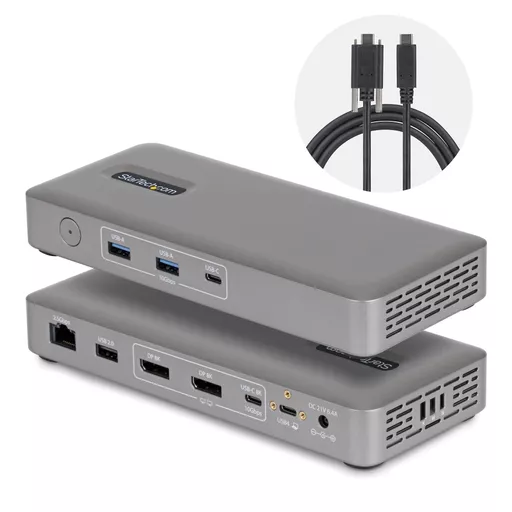

| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Host interface | USB4 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network |
|---|
| Full duplex | Yes |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance |
|---|
| UASP support | Yes |

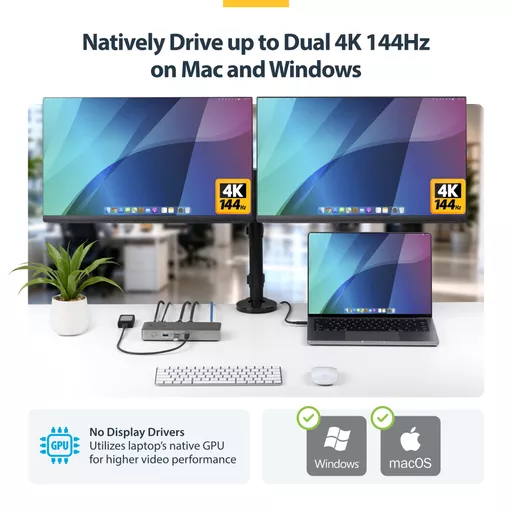

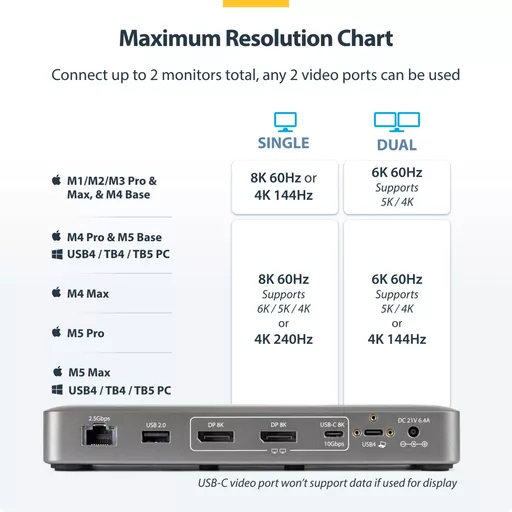

| Maximum digital resolution | 7680 x 4320 pixels |
| Full duplex | Yes |
| On/off switch | Yes |
| Product colour | Grey |
| Card reader integrated | No |
| Cable lock slot | Yes |
| LED indicators | Power |
| Data transfer rate | 10 Gbit/s |
| Cable lock slot type | Kensington, Nano, Noble, Wedge |
| HD type | 8K Ultra HD |
| Housing material | Plastic |
| Maximum refresh rate | 24 Hz |
| Mean time between failures (MTBF) | 45663 h |
| Technical details |
|---|
| Product colour | Grey |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 210 mm |
| Storage |
|---|
| Card reader integrated | No |
| Power |
|---|
| Power source type | DC |
| Input current | 2.5 A |
| Compatible power plug types | EU, UK |
| AC input voltage | 100 - 240 V |

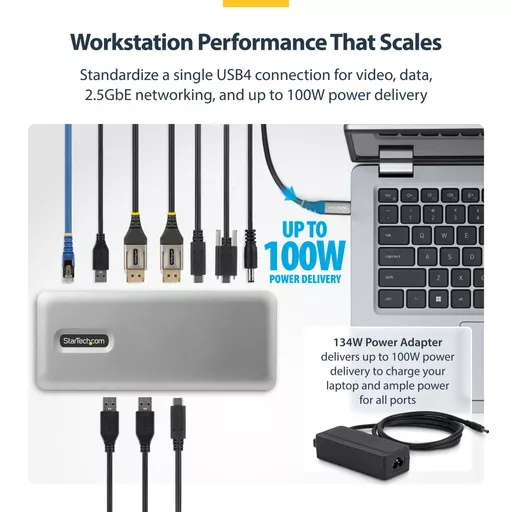

| Power consumption (typical) | 134.4 W |
| Output voltage | 21 V |
| Output current | 6.4 A |
| USB cable length | 1 m |
| Software |
|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS 26 Tahoe, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Linux operating systems supported | Ubuntu 24.04 LTS |
| Other operating systems supported | ChromeOS |
| Indication |
|---|
| LED indicators | Power |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions |
|---|
| Weight | 300 g |
| Width | 80 mm |
| Depth | 190 mm |
| Height | 28.5 mm |
| Package weight | 1.4 kg |
| Package width | 275 mm |
| Package depth | 123 mm |
| Package height | 87 mm |
| Design |
|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS 26 Tahoe, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Product colour | Grey |
| Cable lock slot | Yes |
| LED indicators | Power |
| Cable lock slot type | Kensington, Nano, Noble, Wedge |
| Packaging data |
|---|
| Package weight | 1.4 kg |
| Package width | 275 mm |
| Package depth | 123 mm |
| Package height | 87 mm |

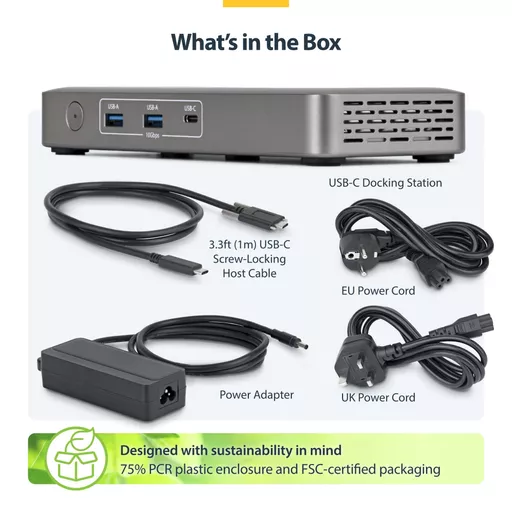

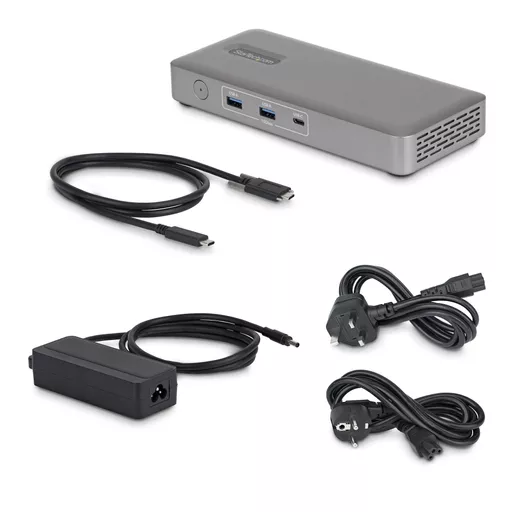

| Packaging content |
|---|
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Logistics data |
|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 210 mm |
| Other features |
|---|
| Chipset | Intel - JHL8140, Infineon - CYPD5235-96BZXI, Parade - FL5500, Realtek - RTL8156B |
