SKU: 94-0401640  |   Brand: Kramer Electronics

Kramer Electronics 4x LC - 4x LC InfiniBand/fibre optic cable 500 m OFC Orange

SKU: 94-0401640  |   Brand: Kramer Electronics

Kramer Electronics 4x LC - 4x LC InfiniBand/fibre optic cable 500 m OFC Orange

0 in stock

£1,018.73 ex. VAT

Figures are exclusive of VAT.

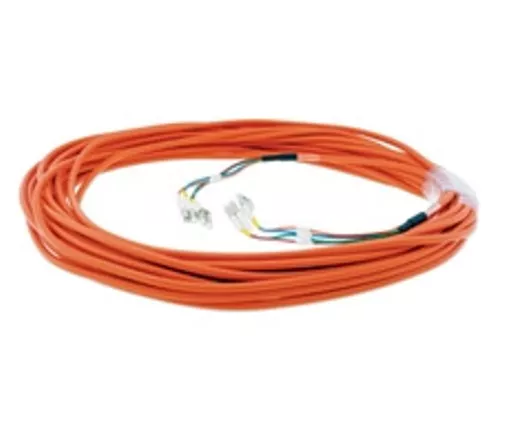

Kramer’s 4LC fiber optic cables are constructed of four color coded multi−mode 50/125um simplex cables of 2.0mm (0.079in) diameter each, contained in a round overall orange jacket. They are intended primarily as companion to various Kramer detachable transmitter/receiver sets.

- Quality Construction - Multimode optical fiber with an operating wavelength of 850nm. Sub-cables are color coded: red, green, blue and orange, terminated with the popular LC connectors for easy installation and are shipped with dust caps at the ends.
- Numerous Applications - Use these cables to connect our optical transmitter and receivers for DVI and HDMI, such as: 610T/R, 621T/R and 631T/R.
Technical details
Connector 1LC
Connector 2LC
Cable typeOFC
Cable length500 m
Core diameter50 µm
Cladding diameter125 µm
Insertion loss0.3 dB
Features
Connector 1LC
Connector 2LC
Cable typeOFC
Cable length500 m
Core diameter50 µm
Cladding diameter125 µm
Insertion loss0.3 dB
Wavelengths supported850 nm
Product colourOrange
Connector 2 genderMale
Connector 1 genderMale
Weight & dimensions
Cable length500 m
Cable diameter7 mm
