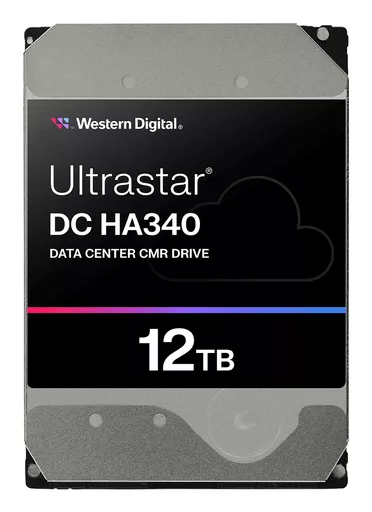

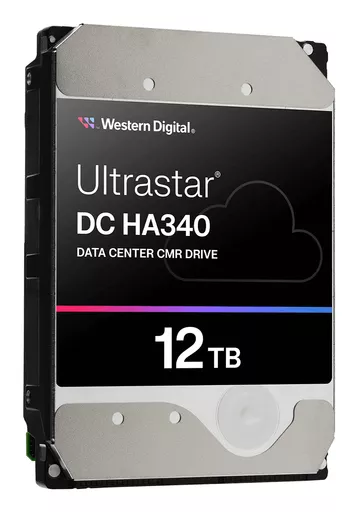

Western Digital Ultrastar DC HA340 internal hard drive 12 TB 7200 RPM 512 MB 3.5" Serial ATA

SKU: 0B47061  |   Brand: Western Digital

Western Digital Ultrastar DC HA340 internal hard drive 12 TB 7200 RPM 512 MB 3.5" Serial ATA

0 in stock

£487.64 ex. VAT

Figures are exclusive of VAT.



Economical Capacities and Fast Data Access for the Data Center

Ultrastar® Data Center HA340 hard drives are medium capacity air-filled HDDs that deliver high IOPS to support data intensive applications with proven durability and reliability.

Delivers High IOPS with Proven Technology
A unique combination of field-proven hardware with the latest innovative technologies enables these air-filled drives to deliver high IOPS to data intensive applications.

Optimized Performance and Durability
Performance-optimized to deliver higher access densities (IOPS/TB) to data intensive applications with proven durability.

Rapid Qualification and Integration
Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers.

Reliability You Can Trust
Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage.

Protected Against Vibration & Shock
Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data.

Trusted Reliability, Quality and World-Class Support
As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.0M-hour MTBF2 rating, a 5-year limited warranty3 and world-class support services to help create environments for data to thrive.

HDD size 3.5 "
HDD capacity over 2.5 TB
HDD speed 7200RPM to 10000RPM
Component for Server/workstation
Interface Serial ATA
Type HDD
Family Ultrastar
Weight 750.00kg

Software
Windows operating systems supportedYes
Linux operating systems supportedYes
Hard drive
Component forServer/workstation
HDD sustained transfer rate255 MiB/s
HDD interface transfer rate6 Gbit/s
Workload rate limit550 TB/year
Average latency4.16 ms
Mean time between failures (MTBF)2000000 h
Start/stop cycles600000
HDD speed7200 RPM
HDD size3.5"
HDD capacity12 TB
Features
TypeHDD
Component forServer/workstation
HDD sustained transfer rate255 MiB/s
HDD interface transfer rate6 Gbit/s
Workload rate limit550 TB/year
InterfaceSerial ATA
Average latency4.16 ms
Windows operating systems supportedYes
Linux operating systems supportedYes
Mean time between failures (MTBF)2000000 h
Start/stop cycles600000
HDD speed7200 RPM
HDD size3.5"
HDD capacity12 TB
Storage drive buffer size512 MB
Uncorrectable Bit Error Rate (UBER)< 1 per 10^15 bits read
Advanced Format (AF)Yes
24/7 operationYes
Power
Power consumption (typical)9.2 W
Power consumption (idle)8.4 W
Operating voltage5 / 12 V
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Operational conditions
Operating temperature (T-T)5 - 60 °C
Storage temperature (T-T)-40 - 70 °C
Operating vibration0.67 G
Operating shock70 G
Non-operating vibration1.04 G
Non-operating shock250 G
Technical details
Quantity per pack1 pc(s)
Warranty period5 year(s)
InterfaceSerial ATA
Mean time between failures (MTBF)2000000 h
Weight & dimensions
Width101.6 mm
Weight750 g
Height147 mm
Depth26.1 mm
Packaging data
Quantity per pack1 pc(s)
Other features
InterfaceSerial ATA
Windows operating systems supportedYes
Linux operating systems supportedYes
Warranty period5 year(s)
