| Display |
|---|
| Display number of colours | 1.07 billion colours |
| Display technology | LED |
| Screen shape | Flat |
| HD type | 4K Ultra HD |
| Display brightness | 270 cd/m² |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Display diagonal (metric) | 139.7 cm |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 139.7 cm (55") |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Colour gamut standard | NTSC |
| TV tuner |
|---|
| Tuner type | Digital |
| Smart TV |
|---|
| Operating system installed | Fire OS |
| Smart TV | Yes |
| Smart modes | Standard, Movie, Dynamic, Natural, Game, Personal, PC, Store |
| Internet TV | Yes |
| Apple AirPlay 2 support | Yes |
| Audio |
|---|
| Audio decoders | DTS Virtual:X, DTS:X, Dolby Atmos |
| Number of speakers | 2 |
| Audio output channels | 2.0 channels |
| RMS rated power | 20 W |
| Sound modes | Movie, Music, Sports, Voice, Standard |
| Enhanced Audio Return Channel (eARC) | Yes |
| Network |
|---|
| Bluetooth version | 5.4 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Internet TV | Yes |
| Design |
|---|
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Product colour | Black |
| Frameless design | Yes |
| Stand type | Legs stand |
| Introduction year | 2026 |
| Performance |
|---|
| High Dynamic Range (HDR) supported | Yes |
| Subtitles function | Yes |
| Video compression formats | AVI, MKV, H.265, H.264, MPEG4, MPEG2, MPEG1, WMV, VC-1, VP8, VP9, AV1 |
| Processor cores | 4 |
| Voice control | Yes |
| Teletext function | Yes |
| Video formats supported | AVI, MKV, H.265, H.264, MPEG4, MPEG2, MPEG1, WMV, VC-1, VP8, VP9, AV1 |
| Parental control | Yes |
| Image formats supported | JPEG, PNG, BMP, HEIF |
| Audio formats supported | MP3, WMA |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Dolby Vision |
| Game features | Game Master |
| Smart TV | Yes |
| Ports & interfaces |
|---|
| RF connector type | F, IEC |
| Audio Return Channel (ARC) | Yes |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 1 |
| Digital audio optical out | 1 |
| RF ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Common interface (CI) | Yes |
| Consumer Electronics Control (CEC) | T-link |
| HDMI ports quantity | 3 |
| AC (power) in | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
| File formats |
|---|
| Video formats supported | AVI, MKV, H.265, H.264, MPEG4, MPEG2, MPEG1, WMV, VC-1, VP8, VP9, AV1 |
| Image formats supported | JPEG, PNG, BMP, HEIF |
| Audio formats supported | MP3, WMA |
| Management features |
|---|
| Voice control | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Smart modes | Standard, Movie, Dynamic, Natural, Game, Personal, PC, Store |
| Works with Amazon Alexa | Yes |
| Teletext |
|---|
| Teletext function | Yes |
| Security |
|---|
| Parental control | Yes |
| Ergonomics |
|---|
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Power |
|---|
| AC input frequency | 50/60 Hz |
| Energy saving mode | Yes |
| AC input voltage | 220 - 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 125 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 61 kWh |
| Energy consumption (HDR) per 1000 hours | 90 kWh |
| Technical details |
|---|
| Stand depth | 25.5 cm |
| Internal memory | 16000 MB |
| Processor | MT9026 |
| Weight (with stand) | 9.2 kg |
| RAM capacity | 2 GB |
| Weight (without stand) | 9 kg |
| Video compression formats | AVI, MKV, H.265, H.264, MPEG4, MPEG2, MPEG1, WMV, VC-1, VP8, VP9, AV1 |
| Country of origin | China |
| Bluetooth version | 5.4 |
| Audio output channels | 2.0 channels |
| AC input voltage | 220 - 240 V |
| Processor cores | 4 |
| Remote control type | RC833A |
| Voice control | Yes |
| Smart TV | Yes |
| Product colour | Black |
| Stand width | 105 cm |
| Sound modes | Movie, Music, Sports, Voice, Standard |
| Brand-specific features |
|---|
| TCL technologies (AV/TV) | HVA Screen |
| Supplier features |
|---|
| Country of origin | China |

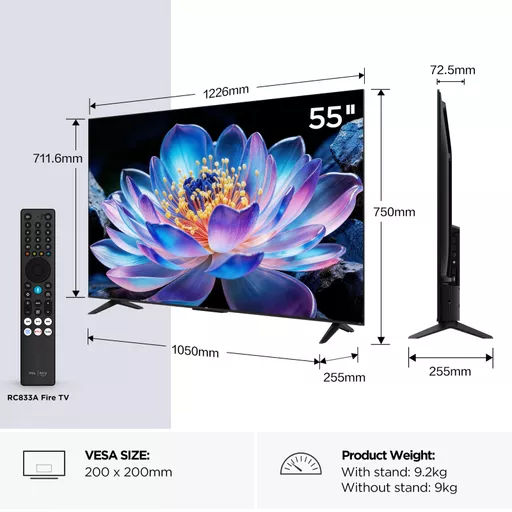

| Weight & dimensions |
|---|
| Stand depth | 25.5 cm |
| Width (without stand) | 1226 mm |
| Height (without stand) | 711 mm |
| Depth (without stand) | 72 mm |
| Weight (without stand) | 9 kg |
| Package width | 1360 mm |
| Package height | 830 mm |
| Package depth | 128 mm |
| Width (with stand) | 1226 mm |
| Height (with stand) | 750 mm |
| Depth (with stand) | 255 mm |
| Package weight | 12.5 kg |
| Stand width | 105 cm |
| Weight (with stand) | 9.2 kg |
| Packaging data |
|---|
| Remote control type | RC833A |
| Package width | 1360 mm |
| Package height | 830 mm |
| Package depth | 128 mm |
| Remote control included | Yes |
| Desktop stand | Yes |
| Cables included | AC |
| Package weight | 12.5 kg |
| Packaging content |
|---|
| Remote control type | RC833A |
| Remote control included | Yes |
| Desktop stand | Yes |
| Cables included | AC |
| Logistics data |
|---|
| Products per intermodal container (20ft) | 304 pc(s) |
| Products per intermodal container (40ft, HC) | 456 pc(s) |
| Container load | 150 |
| Other features |
|---|
| Processor architecture | ARM Cortex-A55 |
| Weight (without stand) | 9 kg |
| Video compression formats | AVI, MKV, H.265, H.264, MPEG4, MPEG2, MPEG1, WMV, VC-1, VP8, VP9, AV1 |
| Country of origin | China |
| Bluetooth version | 5.4 |
| Audio output channels | 2.0 channels |
| AC input voltage | 220 - 240 V |
| Processor cores | 4 |
| Remote control type | RC833A |
| Stand width | 105 cm |
| Energy efficiency scale | A to G |
| Enhanced Audio Return Channel (eARC) | Yes |
