SKU: JL680A  |   Brand: HPE

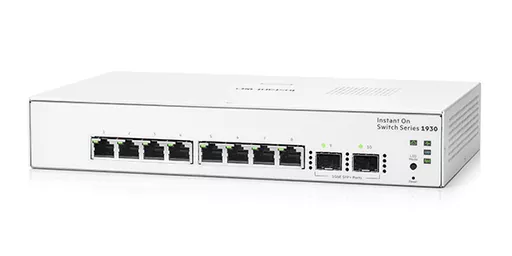

HPE Aruba Networking Networking Instant On Switch 8p Gigabit 2p SFP 1930

SKU: JL680A  |   Brand: HPE

HPE Aruba Networking Networking Instant On Switch 8p Gigabit 2p SFP 1930

27 in stock

£106.87 ex. VAT

Figures are exclusive of VAT.



The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.

What is new supporting point:
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.

Basic switching RJ-45 Ethernet ports quantity 22 to 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) Y
Rack mounting Y
Stackable N
Switch type Managed
Family Aruba Networking
Weight 820.00kg

Management features
ARP inspectionYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
Multicast supportYes
Switch layerL2/L3/L4
Cloud-managedYes
Ports & interfaces
SFP module slots quantity2
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Copper ethernet cabling technology1000BASE-T
I/O ports8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASETX: half or full; 1000 BASE-T: full only 2 SFP 1 GbE ports
Network
Active link detectionYes
Auto-sensingYes
Copper ethernet cabling technology1000BASE-T
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Routing entries32
Rate limitingYes
Port mirroringYes
Number of VLANs4093
Link aggregationYes
IP routingYes
Flow control supportYes
Ethernet LAN data rates10,1000,100 Mbit/s
10G supportYes
IGMP snoopingYes
Data transmission
Jumbo frames9216
Throughput14.88 Mpps
Latency (10-100 Mbps)5.2 µs
Latency (1 Gbps)3 µs
Packet buffer memory1.5 MB
Switching capacity20 Gbit/s
Jumbo frames supportYes
Number of VLANs4093
Security
Loop protectionYes
BPDU filtering/protectionYes
SSH/SSL supportYes
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP client, DHCP snooping
Multicast features
Multicast supportYes
Design
Form factor1U
Product colourWhite
StackableNo
Performance
Processor frequency800 MHz
Memory typeSDRAM / Flash
Internal memory512 MB
Flash memory256 MB
Built-in processorYes
Processor modelARM Cortex-A9
FanlessYes
Packet buffer memory1.5 MB
StackableNo
Power
Power consumption (max)11 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.2 A
Power consumption note11W maximum, 6.2W idle
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Other features
Performance managementInstant On Portal, Web browser, SNMP Manager
Memory and processorARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
Weight (imperial)1.16 kg (2.55 lbs)
I/O ports8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASETX: half or full; 1000 BASE-T: full only 2 SFP 1 GbE ports
Dimensions (W x D x H) (imperial)43.9 x 254 x 159.5 mm (1.73 x 10 x 6.28")
Ethernet LAN data rates10,1000,100 Mbit/s
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)15 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)15 - 95%
Operating altitude0 - 3000 m
Virtual LAN features
VLAN supportYes
Number of VLANs4093
Weight & dimensions
Width43.9 mm
Depth254 mm
Height159.5 mm
Weight820 g
Weight (imperial)1.16 kg (2.55 lbs)
Dimensions (W x D x H) (imperial)43.9 x 254 x 159.5 mm (1.73 x 10 x 6.28")
Technical details
Form factor1U
Product colourWhite
StackableNo
Processor frequency800 MHz
Built-in processorYes
Memory
Packet buffer memory1.5 MB
Memory typeSDRAM / Flash
Internal memory512 MB
Flash memory256 MB
