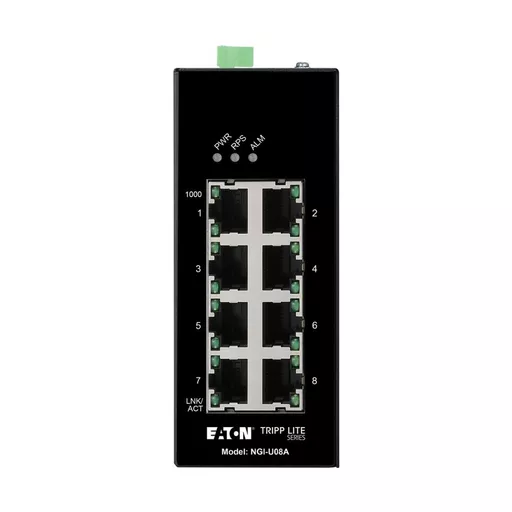

Eaton NGI-U08A network switch Unmanaged Gigabit Ethernet (10/100/1000) DIN rail Black

SKU: NGI-U08A | Brand: Eaton

0 in stock

£160.00 ex. VAT

Figures are exclusive of VAT.

Basic switching RJ-45 Ethernet ports quantity	7 to 8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Switch type	Unmanaged

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Network
MAC address auto-learning supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Full duplex	Yes
Auto-negotiation	Yes
Data transmission
Jumbo frames	9000
MAC address table	2000 entries
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Design

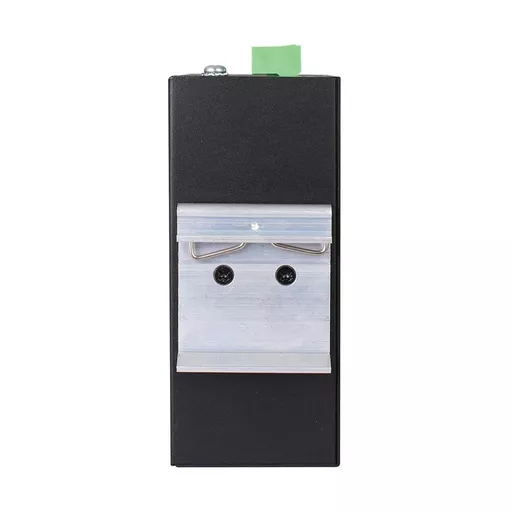

DIN rail mounting	Yes
Form factor	DIN rail
Product colour	Black
LED indicators	Power, Speed
Housing material	Metal
Market segment	Industrial
Performance
Fanless	Yes
Auto-negotiation	Yes
Power
Power consumption (max)	5 W

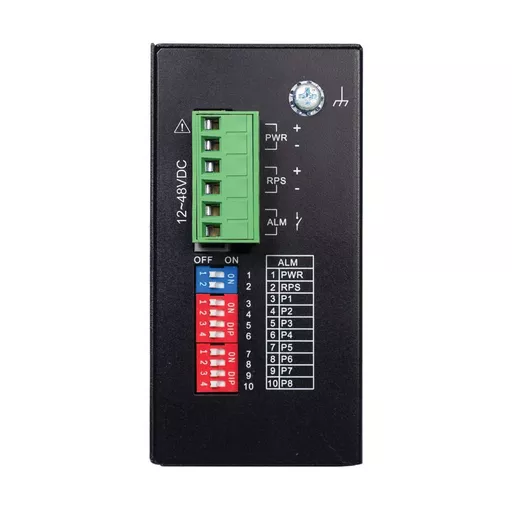

DC input voltage	12 - 48 V
Power source	DC
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	50 mm
Depth	115.8 mm
Height	99.6 mm
Weight	440 g
Packaging content
Manual	Yes
Technical details
Form factor	DIN rail
Product colour	Black
Housing material	Metal
Compliance certificates	TAA, Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Certificates
Compliance certificates	TAA, Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Indication
LED indicators	Power, Speed
Packaging data
Manual	Yes
