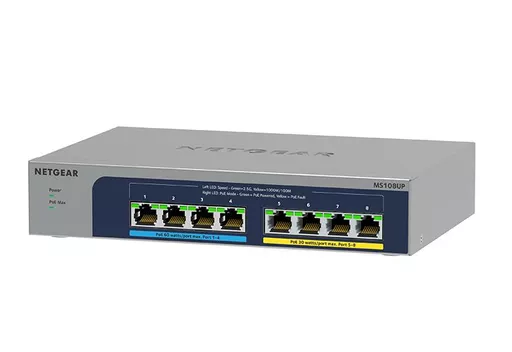

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)

SKU: MS108UP-100EUS | Brand: Netgear

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)

0 in stock

£215.66 ex. VAT

Figures are exclusive of VAT.

+ Description

NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.

+ Tech Specs

Basic switching RJ-45 Ethernet ports quantity	7 to 8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Switch type	Unmanaged
Rack mounting	N
Power over Ethernet (PoE)	Y
Weight	900.00kg

Attributes

Virtual LAN features
VLAN support	Yes
Number of VLANs	64
Data transmission
Number of VLANs	64
Packet forwarding rate (1 Gbps)	1488000 pps
Jumbo frames	12000
Latency (1 Gbps)	3.593 µs
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	40 Gbit/s
Jumbo frames support	Yes
Performance
Packet buffer memory	1.5 MB
Mean time between failures (MTBF)	373643.7 h
Harmonized System (HS) code	85176990
Fanless	Yes
Technical details
Mean time between failures (MTBF)	373643.7 h
Housing material	Metal
Rack mounting	No
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	8
Network
Auto-sensing	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Number of VLANs	64
Ethernet LAN data rates	100,1000,2500 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Half duplex	Yes
Certificates
Electromagnetic compatibility	CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Certification	CB, CSA, CCC, BSMI, RCM
Memory
Packet buffer memory	1.5 MB
Design
Wall mountable	Yes
LED indicators	Activity, Link, PoE, Power
Housing material	Metal
Electromagnetic compatibility	CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Certification	CB, CSA, CCC, BSMI, RCM
Rack mounting	No
Indication
LED indicators	Activity, Link, PoE, Power
Power
Power supply included	Yes
Input current	4.7 A
DC input voltage	54 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	230 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	923.49 BTU/h
Weight & dimensions
Width	210 mm
Depth	140 mm
Height	40 mm
Weight	900 g
Logistics data
Harmonized System (HS) code	85176990
Other features
Ethernet LAN data rates	100,1000,2500 Mbit/s
