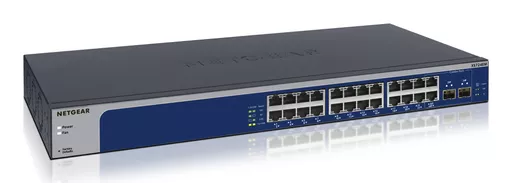

NETGEAR XS724EM Managed L2 10G Ethernet (100/1000/10000) 1U Blue, Grey

SKU: XS724EM-200EUS | Brand: Netgear

NETGEAR XS724EM Managed L2 10G Ethernet (100/1000/10000) 1U Blue, Grey

0 in stock

£1,387.51 ex. VAT

Figures are exclusive of VAT.

+ Description

Unlock your Network Potential with 10-Gigabit/Multi-Gigabit 5-Speed Networking Switches
Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.

With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.

Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle

+ Tech Specs

Switch type	Managed
Rack mounting	Y
Power over Ethernet (PoE)	N
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	22 to 24

Attributes

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	3 MB
MAC address table	32000 entries
Switching capacity	480 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Security
MAC address filtering	Yes
IGMP snooping	Yes
DHCP features	DHCP client
Design
Form factor	1U
Product colour	Blue, Grey
LED indicators	Yes
Rack mounting	Yes
Number of fans	3 fan(s)
Certification	47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1
Performance
Mean time between failures (MTBF)	830493 h
Packet buffer memory	3 MB
Harmonized System (HS) code	85176990
Power
AC input voltage	100 - 240 V
Input current	2 A
Power source	AC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Heat dissipation	513.88 BTU/h
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Weight & dimensions
Width	440 mm
Depth	204 mm
Height	43 mm
Weight	3.72 kg
Sustainability
Sustainability certificates	ENERGY STAR
Technical details
Form factor	1U
Product colour	Blue, Grey
Mean time between failures (MTBF)	830493 h
Rack mounting	Yes
Sustainability certificates	ENERGY STAR
Memory
Packet buffer memory	3 MB
Certificates
Certification	47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1
Indication
LED indicators	Yes
Logistics data
Harmonized System (HS) code	85176990
