TP-Link LS1024G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

SKU: LS1024G | Brand: TP-LINK

TP-Link LS1024G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

0 in stock

£64.47 ex. VAT

Figures are exclusive of VAT.

+ Description

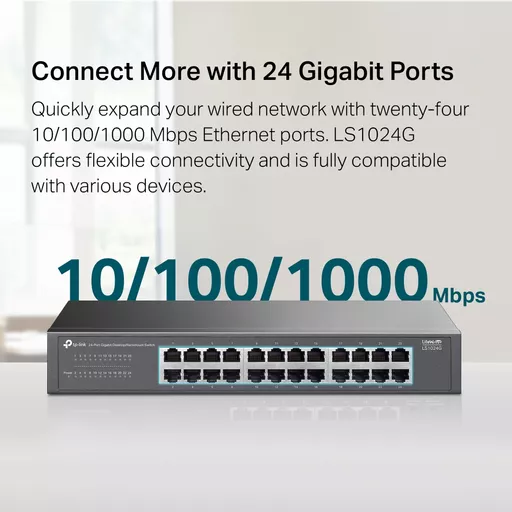

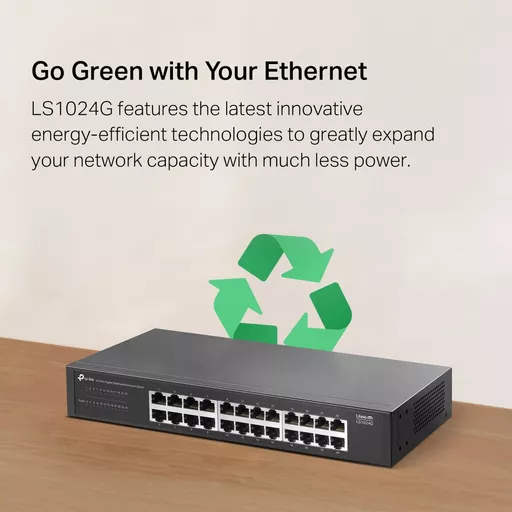

The LS1024G Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the LS1024G can save power consumption, making it an eco-friendly solution for your business network.

+ Tech Specs

Rack mounting	N
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	22 to 24
Switch type	Unmanaged
Weight	2,562.00kg

Attributes

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Jumbo frames	10000
Packet buffer memory	2 MB
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	35.712 Mpps
Design
Product colour	Black
Rack mounting	No
Performance
Mean time between failures (MTBF)	1183684 h
Fanless	Yes
Packet buffer memory	2 MB
Auto-negotiation	Yes
Power
Power consumption (max)	12.6 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	0.6 A
Power source	AC
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	42.77 BTU/h
Weight & dimensions
Width	294 mm
Depth	140 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Technical details
Product colour	Black
Mean time between failures (MTBF)	1183684 h
Rack mounting	No
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory	2 MB
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Packaging data
Rack mount kit	Yes
User guide	Yes
Cables included	Power
