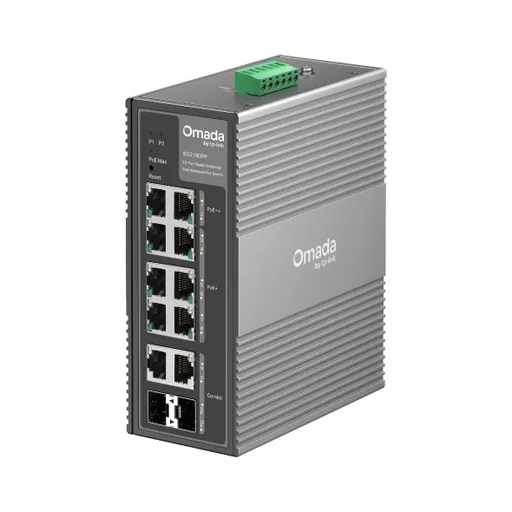

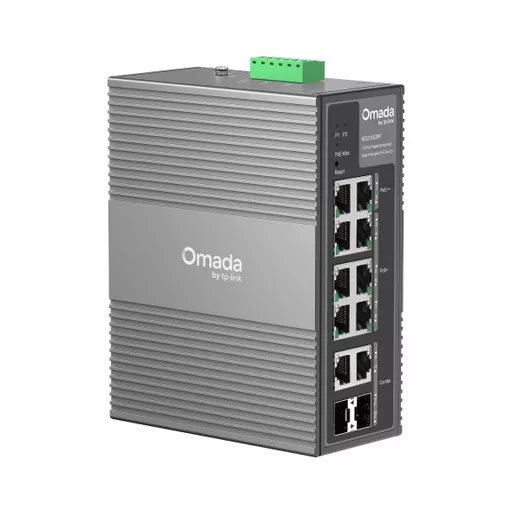

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

SKU: IES210GPP  |   Brand: TP-LINK

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

4 in stock

£148.20 ex. VAT

Figures are exclusive of VAT.



Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch

Industrial-Grade Protection Built for Harsh Environments

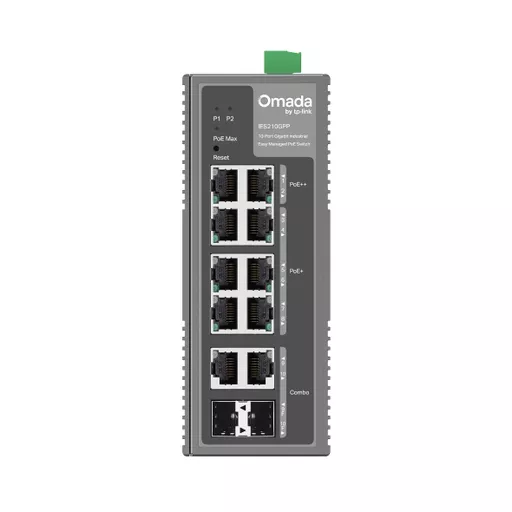

- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature

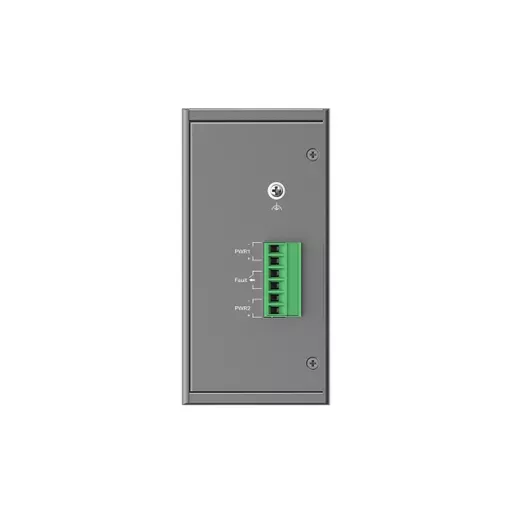

- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management

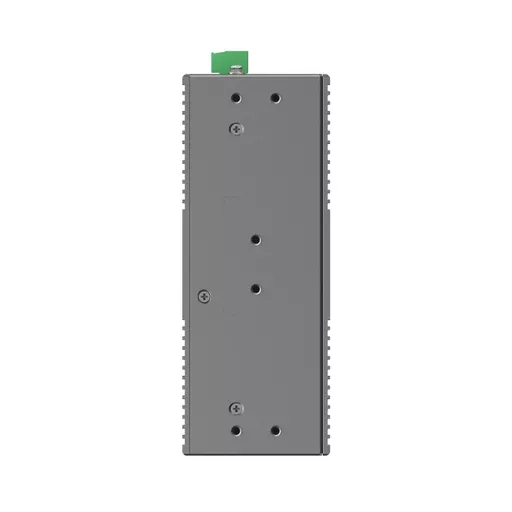

- DIN-Rail & Wall Mounting

Power over Ethernet (PoE) Y
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 7 to 8
Switch type Managed
Rack mounting Y

Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2
Network
Networking standardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN supportYes
Port mirroringYes
Number of VLANs4000
Link aggregationYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
IGMP snoopingYes
Data transmission
Jumbo frames15000
Packet buffer memory4000 MB
MAC address table8000 entries
Switching capacity20 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Forwarding rate14.88 Mpps
Number of VLANs4000
Security
Loop protectionYes
IGMP snoopingYes
DHCP featuresDHCP client
Multicast features
Multicast supportYes
Design
Form factorDIN rail
Product colourGrey
LED indicatorsYes
Rack mountingYes
Power
DC input voltage12 - 57 V
Power sourceDC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity6
Total Power over Ethernet (PoE) budget240 W
Power over Ethernet (PoE)Yes
Power over Ethernet 4PPoE (PoE++) ports quantity2
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Weight & dimensions
Width155 mm
Depth120 mm
Height60 mm
Performance
Packet buffer memory4000 MB
Auto-negotiationYes
Technical details
Form factorDIN rail
Product colourGrey
Rack mountingYes
Memory
Packet buffer memory4000 MB
Indication
LED indicatorsYes
Other features
Ethernet LAN data rates10,100,1000 Mbit/s
