SKU: USW-PRO-MAX-16-POE  |   Brand: Ubiquiti

Ubiquiti Pro Max 16 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

SKU: USW-PRO-MAX-16-POE  |   Brand: Ubiquiti

Ubiquiti Pro Max 16 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

1 in stock

£339.90 ex. VAT

Figures are exclusive of VAT.



A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Basic switching RJ-45 Ethernet ports quantity 15 to 16
Switch type Managed
Rack mounting Y
Power over Ethernet (PoE) Y
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Weight 2,100.00kg

Management features
Reset buttonYes
Switch typeManaged
Multicast supportYes
Switch layerL3
Ports & interfaces
SFP+ module slots quantity2
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity12
Power connectorDC-in jack
2.5G Ethernet (copper) ports quantity4
Network
Networking standardsIEEE 802.1x
VLAN supportYes
Rate limitingYes
Port mirroringYes
Flow control supportYes
Broadcast storm controlYes
10G supportYes
Virtual LAN featuresVoice VLAN
IGMP snoopingYes
Data transmission
Switching capacity84 Gbit/s
Jumbo frames supportYes
Forwarding rate62.496 Mpps
Throughput42 Gbit/s
Security
Loop protectionYes
IGMP snoopingYes
DHCP featuresDHCP snooping, DHCPv6 relay
Multicast features
Multicast supportYes
Design
Reset buttonYes
Display typeLCM
Product colourGrey
LED indicatorsSystem
Housing materialSteel
Rack mountingYes
Power
Power consumption (max)30 W
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Redundant power supply (RPS) supportYes
DC input voltage44 - 57 V
Power sourceAC/DC
Power connectorDC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port15 W
Power over Ethernet plus (PoE+) ports quantity12
Total Power over Ethernet (PoE) budget180 W
Power over Ethernet (PoE)Yes
Power over Ethernet 4PPoE (PoE++) ports quantity4
Operational conditions
Operating temperature (T-T)-5 - 40 °C
Operating relative humidity (H-H)10 - 90%
Virtual LAN features
VLAN supportYes
Virtual LAN featuresVoice VLAN
Weight & dimensions
Width325.1 mm
Depth160 mm
Height43.7 mm
Weight2.1 kg

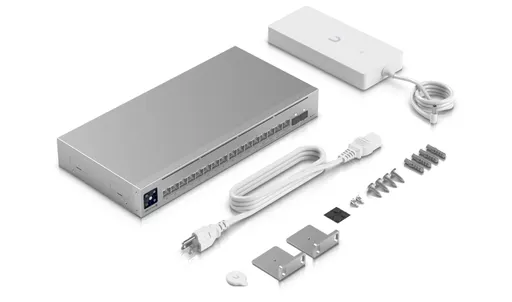

Packaging content
ManualYes
Cables includedPower
Mounting brackets includedYes
Packaging data
Mounting brackets includedYes
ManualYes
Cables includedPower
Technical details
Product colourGrey
Housing materialSteel
Rack mountingYes
Compliance certificatesCE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicatorsSystem
