TP-Link 10GBase-LR SFP+ LC Transceiver

SKU: SM5110-LR  |   Brand: TP-LINK

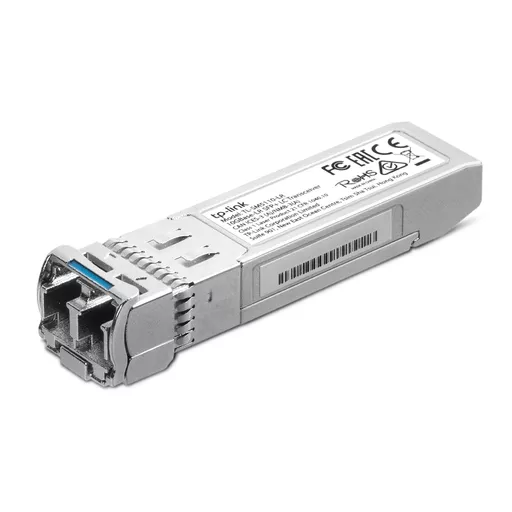

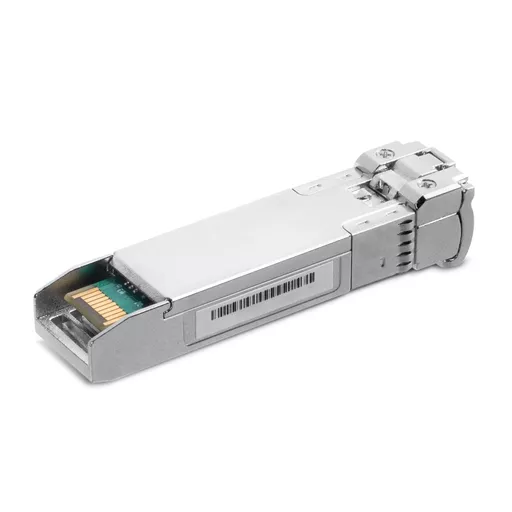

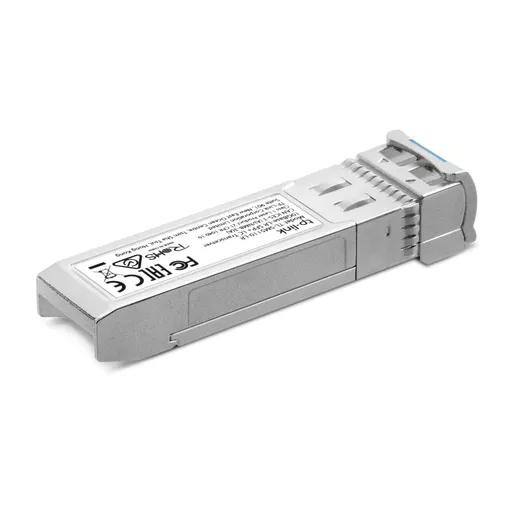

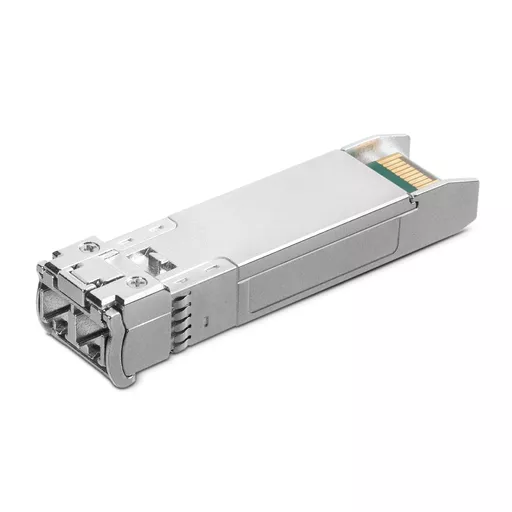

TP-Link 10GBase-LR SFP+ LC Transceiver

53 in stock

£29.27 ex. VAT

Figures are exclusive of VAT.



The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Weight 60.00kg

Performance
SFP transceiver typeFiber optic
Digital Diagnostics Monitoring (DDM)Yes
Fiber optic connectorLC
Networking standardsIEEE 802.3ae
Maximum transfer distance10000 m
Wavelength1310 nm
Fiber cable diameters supported (core/cladding)9/125 µm
Duplex systemFull
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Multi-mode fiber (MMF) supportedNo
SFP transceiver standardLR
Hot-Plug supportYes
Hot-swapYes
Compatible productsSwitches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Brand compatibilityTP-Link
Harmonized System (HS) code85369010
Features
Hot-Plug supportYes
Hot-swapYes
Compatible productsSwitches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Brand compatibilityTP-Link
CertificationFCC, CE
Power
Input voltage3.3 V
Certificates
CertificationFCC, CE
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Network
SFP transceiver typeFiber optic
Fiber optic connectorLC
Networking standardsIEEE 802.3ae
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Weight & dimensions
Width56.7 mm
Depth13.9 mm
Height10.3 mm
Package depth122.5 mm
Package width81.5 mm
Package height38.5 mm
Package weight60 g
Packaging content
Quantity per pack1 pc(s)
Technical details
Package width81.5 mm
Package height38.5 mm
Hot-Plug supportYes
Hot-swapYes
Maximum transfer distance10000 m
Wavelength1310 nm
Fiber cable diameters supported (core/cladding)9/125 µm
Duplex systemFull
Compatible productsSwitches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Packaging data
Package depth122.5 mm
Package width81.5 mm
Package height38.5 mm
Package weight60 g
Logistics data
Quantity per pack1 pc(s)
Harmonized System (HS) code85369010
