SKU: 47582  |   Brand: Lindy

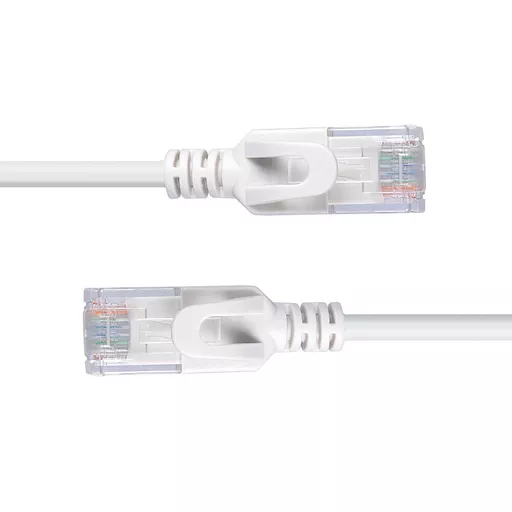

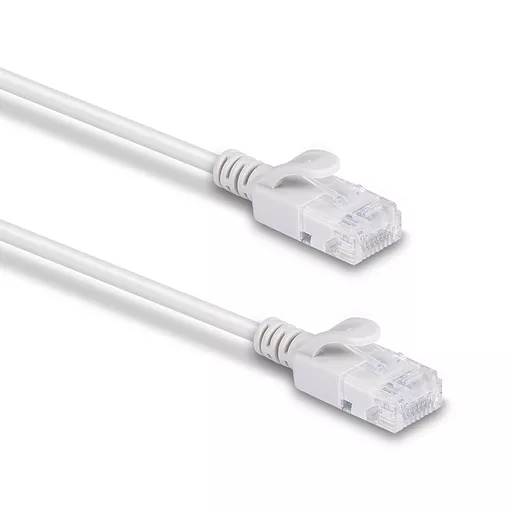

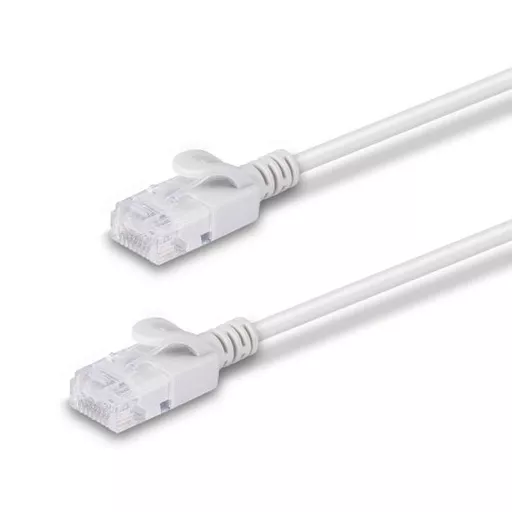

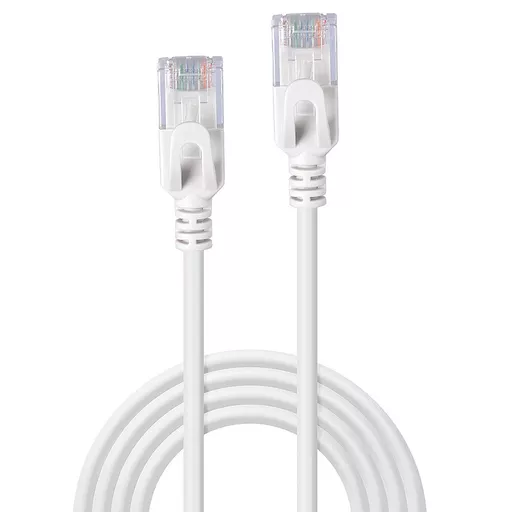

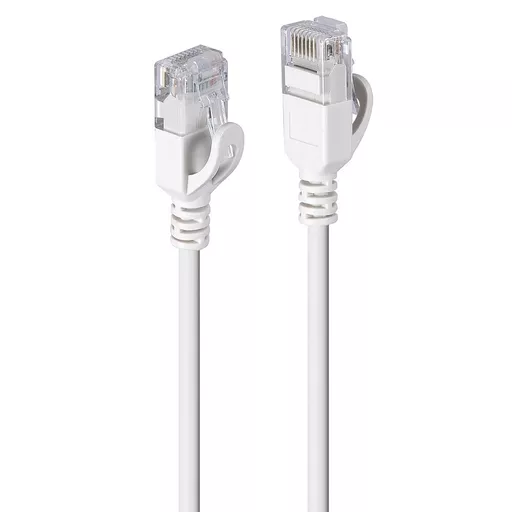

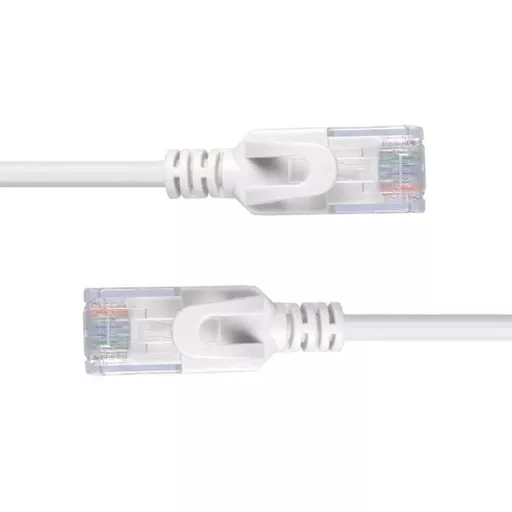

Lindy 1m Cat.6A U/UTP Ultra Slim Network Cable, Grey

SKU: 47582  |   Brand: Lindy

Lindy 1m Cat.6A U/UTP Ultra Slim Network Cable, Grey

88 in stock

£2.26 ex. VAT

Figures are exclusive of VAT.



Cat.6A U/UTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
Cat 6A cable, for operating frequencies up to 500MHz, unshielded with single twisted pair (U/UTP). Designed as ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.
Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.

Cable length 1m to 3m
Connector 2 RJ-45
Cable shielding U/UTP (UTP)
Cable standard Cat6a
Connector 1 RJ-45
Weight 10.00kg

Features
Product colourGrey
Connector shieldingYes
Connector shield materialAluminium
Conductor materialCopper
Frequency500 MHz
AWG wire size28
Cable standardCat6a
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector contacts platingNickel/Gold
Jacket materialLow smoke zero halogen (LSZH)
Cable length1 m
Connector 2 genderMale
Connector 1 genderMale
Bend radius (min)6 cm
Connector 2 form factorStraight
Connector 1 form factorStraight
CertificationRoHS, REACH, California Proposition 65
Operational conditions
Storage temperature (T-T)-10 - 40 °C
Operating temperature (T-T)-10 - 60 °C
Certificates
CertificationRoHS, REACH, California Proposition 65
Compliance certificatesREACH, RoHS
Weight & dimensions
Outer diameter3.6 mm
Connector 2 dimensions (WxDxH)11 x 28 x 6 mm
Connector 1 dimensions (WxDxH)11 x 28 x 6 mm
Packaging data
Package typePolybag
Technical details
Product colourGrey
Cable standardCat6a
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector contacts platingNickel/Gold
Jacket materialLow smoke zero halogen (LSZH)
Cable length1 m
Compliance certificatesREACH, RoHS
Sustainability complianceYes
Other features
Package typePolybag
