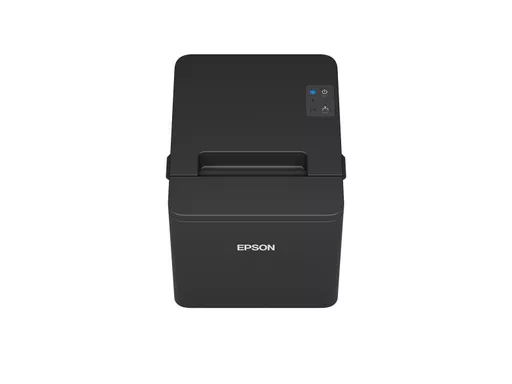

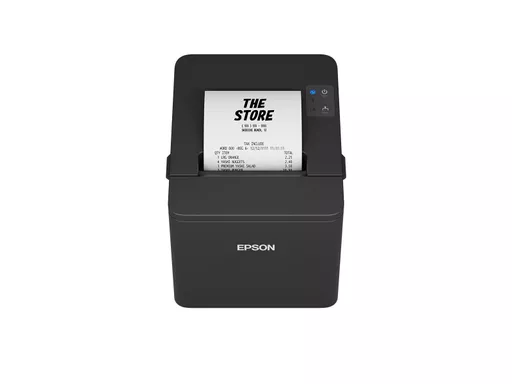

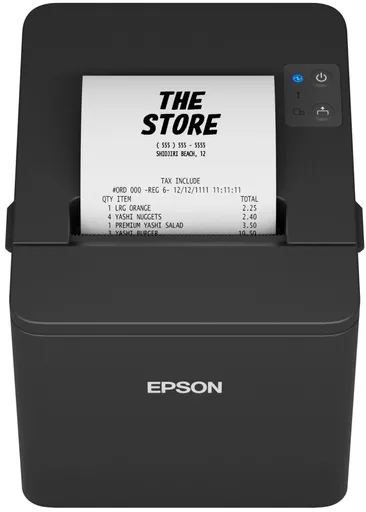

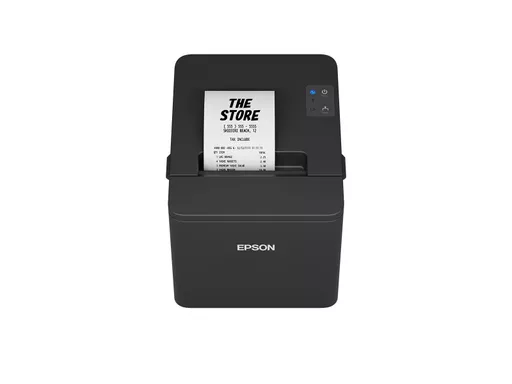

Epson TM-T20IV 203 x 203 DPI Wired Thermal POS printer

SKU: C31CL47102 | Brand: Epson

Epson TM-T20IV 203 x 203 DPI Wired Thermal POS printer

0 in stock

£139.66 ex. VAT

Figures are exclusive of VAT.

+ Description

The capable, affordable POS printer with versatile connectivity

Engineered for a balance of speed, reliability and affordability in a compact package, the TM-T20IV thermal receipt printer is purpose-built for taking on the demanding POS needs of today’s businesses. This versatile printer supports traditional PC-POS and mPOS systems and features two built-in connectivity options, allowing for exceptional flexibility and productivity: (1) USB with serial connectivity and (2) USB with serial and Ethernet connectivity. The TM-T20IV is built for productivity—with print speeds up to 250 mm/sec, an intuitive status LED and paper savings of up to 30 percent1, it’s the ideal solution for keeping your POS workflow moving quickly and efficiently. The printer is backed by a 2-year limited warranty, with extended service plan options available up to a total of 5 years of continuous coverage2, giving you Epson’s world-class service and support for your peace of mind.

+ Tech Specs

Connectivity technology	Wired
Print technology	thermal
Type	POS printer
Weight	1,700.00kg

Attributes

Printing
Colour	No
Type	POS printer
Print technology	Thermal
Print speed	250 mm/sec
Maximum resolution	203 x 203 DPI
Character size	1.25 x 3 mm
Character density	22.6 cpi
Printing characters	Graphic
Performance
Type	POS printer
Print technology	Thermal
Print speed	250 mm/sec
Maximum resolution	203 x 203 DPI
Character size	1.25 x 3 mm
Character density	22.6 cpi
Built-in barcodes	CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Paper handling
Supported paper width	80 mm
Printing media thickness	53 - 75 µm
Maximum roll diameter	8.3 cm
Ports & interfaces
Connectivity technology	Wired
USB 2.0 ports quantity	1
USB port	Yes
USB connector	USB Type-A
Serial interface	Yes
Serial interface type	RS-232
Optional connectivity	Wireless LAN
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Thermal
Print speed	250 mm/sec
Character size	1.25 x 3 mm
Character density	22.6 cpi
Print quality
Maximum resolution	203 x 203 DPI
Technical details
Mean cycles between failures (MCBF)	60000000
Built-in sensors details	Paper End Sensor, Paper Near End Sensor
Windows operating systems supported	Yes
Mobile operating systems supported	Android, iOS
Product colour	Black
Built-in barcodes	CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Autocutter durability	2 million cuts
Cutter	Yes
Colour	No
Compliance certificates	Federal Communications Commission (FCC), ICES
Safety warning	UL62368-1, CAN/CSA C22.2 No.62368-1
Features
Mean cycles between failures (MCBF)	60000000
Built-in sensors details	Paper End Sensor, Paper Near End Sensor
Mean time between failures (MTBF)	360000 h
Product colour	Black
Built-in barcodes	CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Autocutter durability	2 million cuts
Cutter	Yes
Print head life	150 km
Wall mountable	Yes
Receive buffer	4 KB
Design
Product colour	Black
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	100 - 230 V
AC input frequency	50/60 Hz
Power source type	DC
Power consumption (printing)	27.2 W
DC output voltage	24 V
Power consumption (standby)	0.96 W
Operational conditions
Storage temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
System requirements
Windows operating systems supported	Yes
Mobile operating systems supported	Android, iOS
Weight & dimensions
Width	140 mm
Depth	199 mm
Height	146 mm
Weight	1.7 kg
Packaging data
Cables included	AC
Packaging content
Cables included	AC
AC adapter included	Yes
Software
Windows operating systems supported	Yes
Mobile operating systems supported	Android, iOS
Other features
Mean cycles between failures (MCBF)	60000000
Print head life	150 km
