SKU: 90YE00U2-B0NA00  |   Brand: ASUS

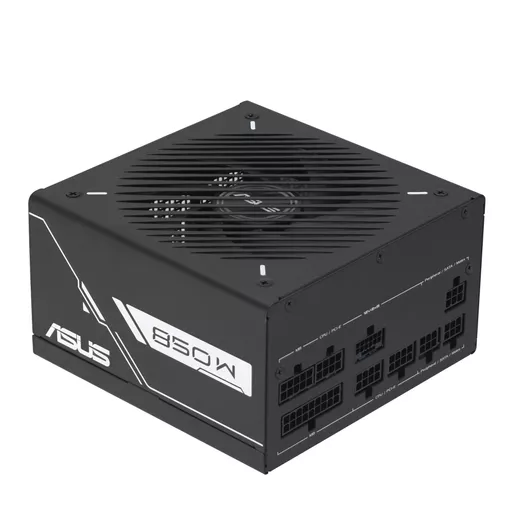

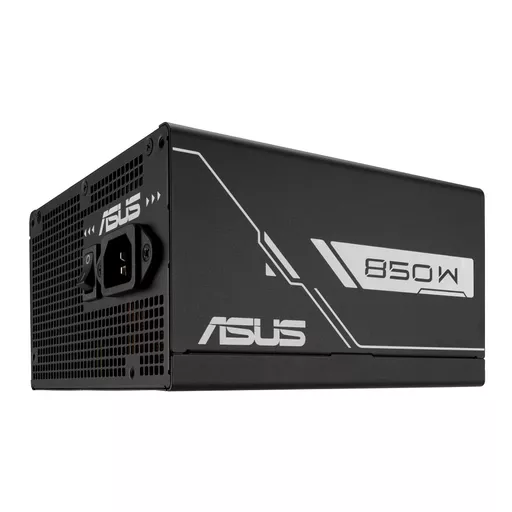

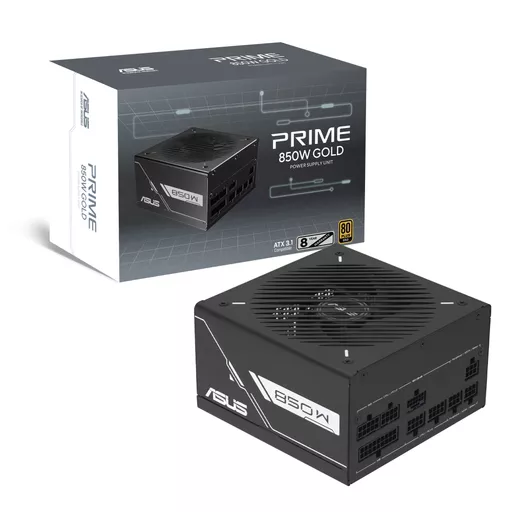

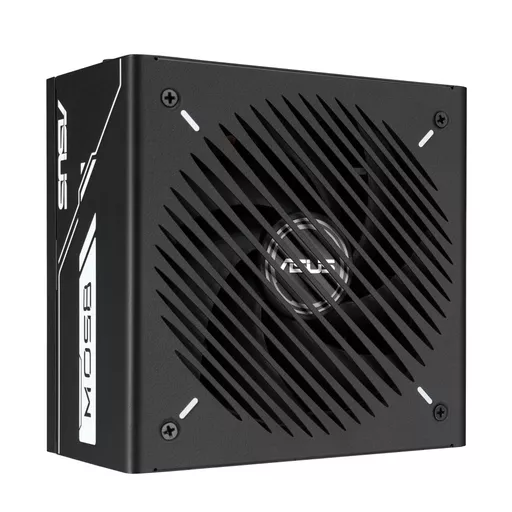

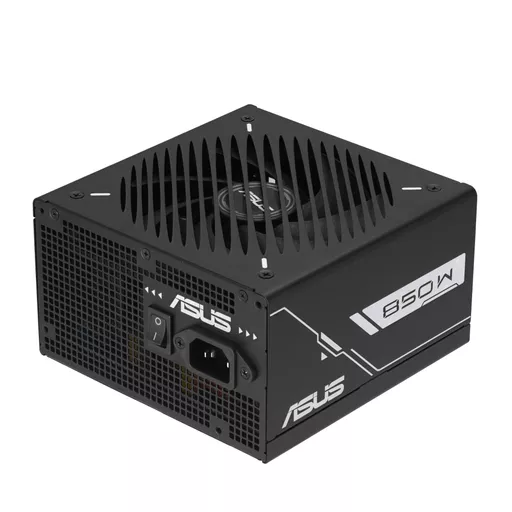

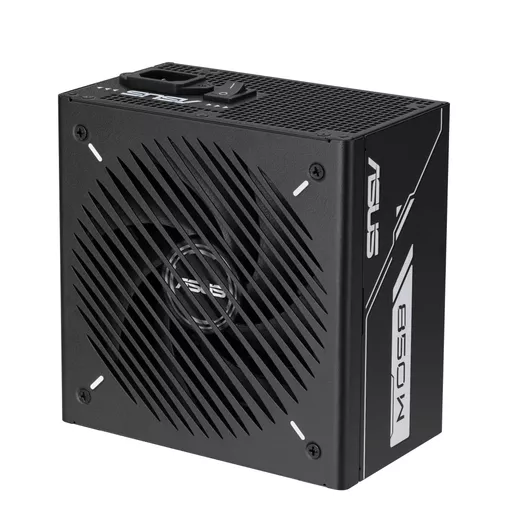

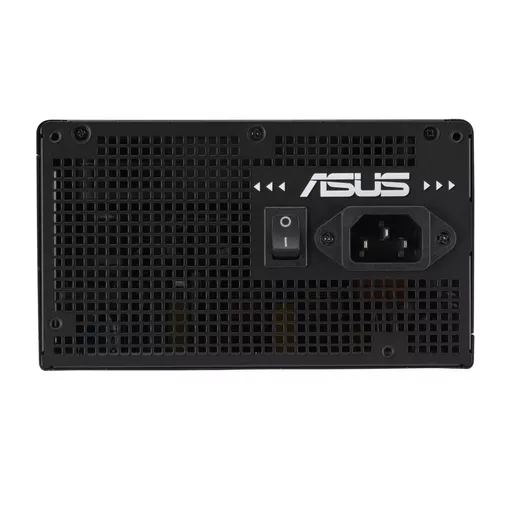

ASUS Prime -850G power supply unit 850 W 20+4 pin ATX ATX Black

SKU: 90YE00U2-B0NA00  |   Brand: ASUS

ASUS Prime -850G power supply unit 850 W 20+4 pin ATX ATX Black

22 in stock

£89.45 ex. VAT

Figures are exclusive of VAT.



Prime 850W Gold Black Edition
STELLAR
PERFORMANCE
A Prime Gold Black Edition power supply unit in a blue, space vibe background.
With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

Power supply unit (PSU) form factor ATX
Purpose PC
Family PRIME
Weight 2,880.00kg

Cooling
Number of fans1 fan(s)
Fan locationTop
Cooling typeActive
Performance
On/off switchYes
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
PurposePC
ATX version3.1
Mean time between failures (MTBF)120000 h
Bearing technologyDBB
Design
80 PLUS certification80 PLUS Gold
Product colourBlack
On/off switchYes
Number of fans1 fan(s)
IlluminationNo
Fan locationTop
Cooling typeActive
Power
Total power850 W
AC input voltage100 - 240 V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)110 W
Combined power (+12V)846 W
Combined power (+5V)110 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)20 A
Max output current (+12V)70.5 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
Power protection featuresOverheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
Motherboard power cable length60 cm
SATA power cable length400,120 mm
Peripheral (Molex) power cable length400,150 mm
PCI Express power cable length60 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors5
Peripheral (Molex) power connectors (4-pin)4
PCI Express power connectors (6+2 pin)3
CPU power connector (4+4 pin)Yes
PCI Express connectorYes
Cabling typeFully-Modular
PCI Express power connectors (16-pin)1
Packaging content
Cables includedCPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width150 mm
Depth150 mm
Height86 mm
Weight1.48 kg
Packaging data
Cables includedCPU, PCIe, Peripheral (Molex), SATA
Package depth213 mm
Package width320 mm
Package height113 mm
Package typeBox
Package weight2.88 kg
Certificates
80 PLUS certification80 PLUS Gold
