SKU: 90YE00W6-B0NA00  |   Brand: ASUS

ASUS ROG -STRIX-1200P-GAMING-E power supply unit 1200 W 20+4 pin ATX ATX Black, Multicolour

SKU: 90YE00W6-B0NA00  |   Brand: ASUS

ASUS ROG -STRIX-1200P-GAMING-E power supply unit 1200 W 20+4 pin ATX ATX Black, Multicolour

0 in stock

£204.44 ex. VAT

Figures are exclusive of VAT.



Superior Stability. Next-Level Efficiency
The ROG Strix 1200W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.

The ROG Strix 1200W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2×6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

Power supply unit (PSU) form factor ATX
Purpose PC
Family ROG
Weight 4.00kg

Cooling
Number of fans1 fan(s)
Cooling typeActive
Performance
On/off switchYes
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
PurposePC
ATX version3.1
Noise level25 dB
Mean time between failures (MTBF)120000 h
Bearing technologyDBB
Design
80 PLUS certification80 PLUS Platinum
Product colourBlack, Multicolour
On/off switchYes
Number of fans1 fan(s)
Cooling typeActive
Power
Total power1200 W
AC input voltage100 - 240 V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)130 W
Combined power (+12V)1200 W
Combined power (+5V)130 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)25 A
Max output current (+12V)100 A
Max output current (+5V)25 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length61 cm
PCI Express power cable length75 cm
CPU power cable length100 cm

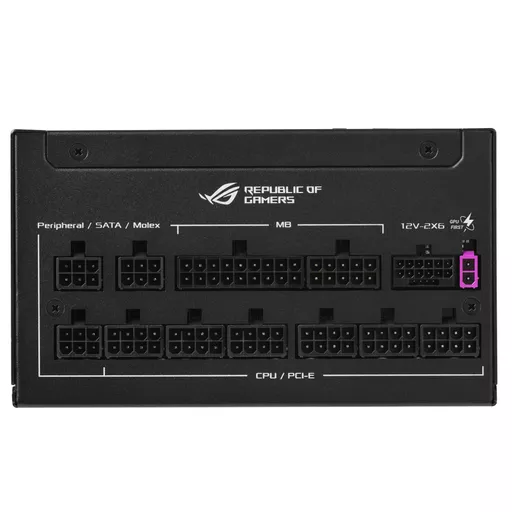

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)3
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
PCI Express connectorYes
ATX power connector (20+4 pin)Yes
Cabling typeFully-Modular
PCI Express power connectors (16-pin)1
Packaging content

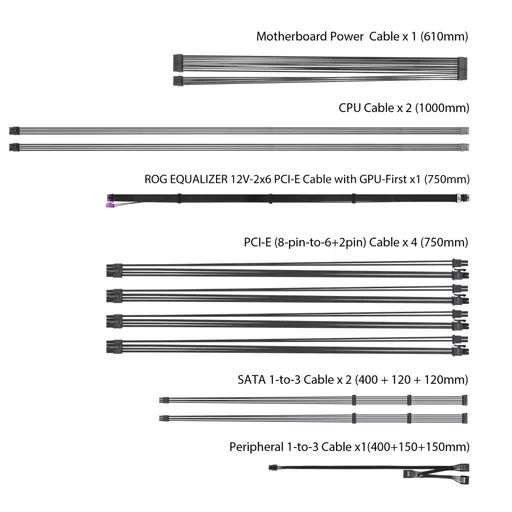

Cables includedAC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width160 mm
Depth150 mm
Height86 mm
Weight1.84 kg
Packaging data
Cables includedAC, CPU, PCIe, Peripheral (Molex), SATA
Package depth200 mm
Package width320 mm
Package height108 mm
Package typeBox
Package weight3.65 kg
Certificates
80 PLUS certification80 PLUS Platinum
