SKU: 90YE00V8-B0NA00  |   Brand: ASUS

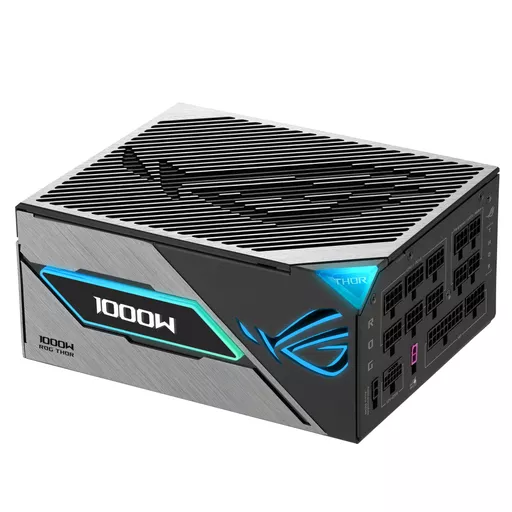

ASUS ROG -THOR-1000P3-GAMING-E power supply unit 1000 W 20+4 pin ATX ATX Black

SKU: 90YE00V8-B0NA00  |   Brand: ASUS

ASUS ROG -THOR-1000P3-GAMING-E power supply unit 1000 W 20+4 pin ATX ATX Black

0 in stock

£289.63 ex. VAT

Figures are exclusive of VAT.



Ultimate Power. Unmatched Stability

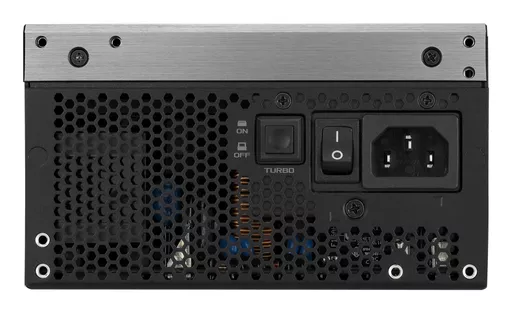

The ROG Thor 1000W Platinum III delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.

The ROG Thor 1000W Platinum III also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.

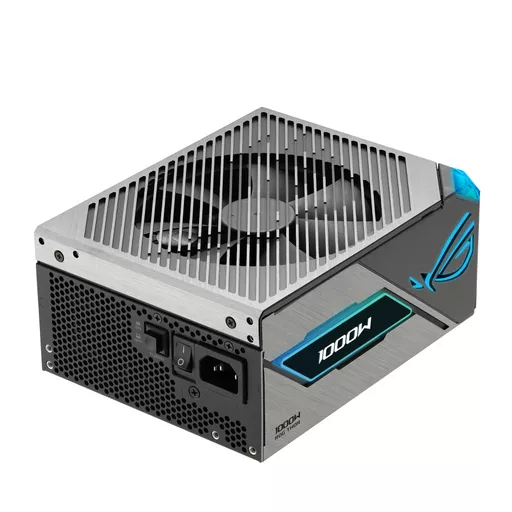

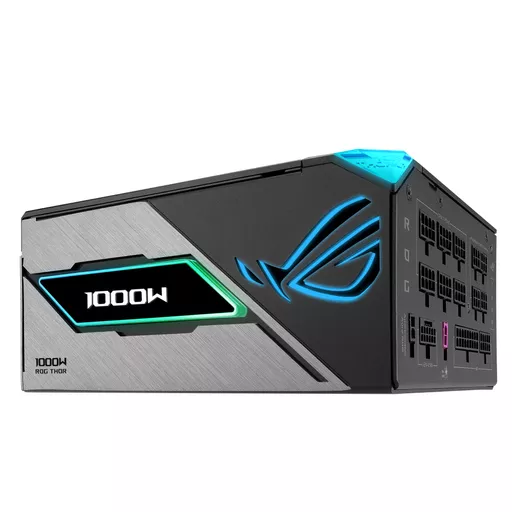

The ROG Thor 1000W Platinum III retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.

Power supply unit (PSU) form factor ATX
Purpose PC
Family ROG
Weight 5.00kg

Cooling
Number of fans1 fan(s)
Fan locationTop
Cooling typeActive
Performance
On/off switchYes
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
PurposePC
ATX version3.1
Mean time between failures (MTBF)120000 h
Bearing technologyDBB
Design
80 PLUS certification80 PLUS Platinum
Product colourBlack
On/off switchYes
Number of fans1 fan(s)
IlluminationYes
Fan locationTop
Cooling typeActive
Power
Total power1000 W
AC input voltage100 - 240 V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)125 W
Combined power (+12V)1000 W
Combined power (+5V)125 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)30 A
Max output current (+12V)83.33 A
Max output current (+5V)25 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under power

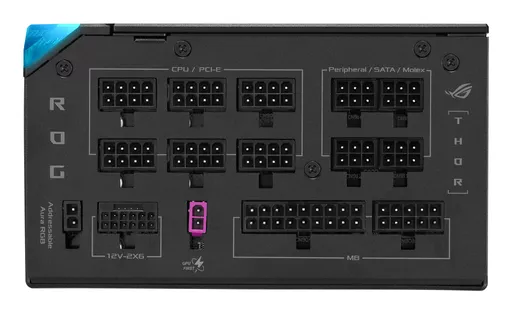

Ports & interfaces
Motherboard power cable length61 cm
PCI Express power cable length75 cm
CPU power cable length100 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors7
Peripheral (Molex) power connectors (4-pin)6
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
PCI Express connectorYes
Cabling typeFully-Modular
PCI Express power connectors (16-pin)1
Packaging content

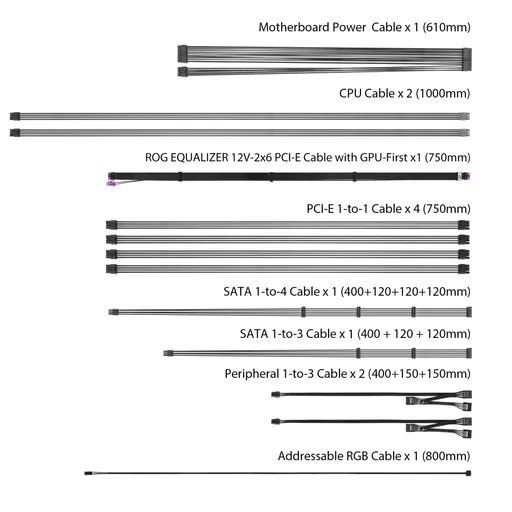

Cables includedCPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
Width190 mm
Depth150 mm
Height86 mm
Weight2.37 kg
Packaging data
Cables includedCPU, PCIe, SATA, Peripheral (Molex)
Package depth241 mm
Package width379 mm
Package height127 mm
Package typeBox
Package weight5.17 kg
Certificates
80 PLUS certification80 PLUS Platinum
