SKU: 90YE00SD-B0NA00  |   Brand: ASUS

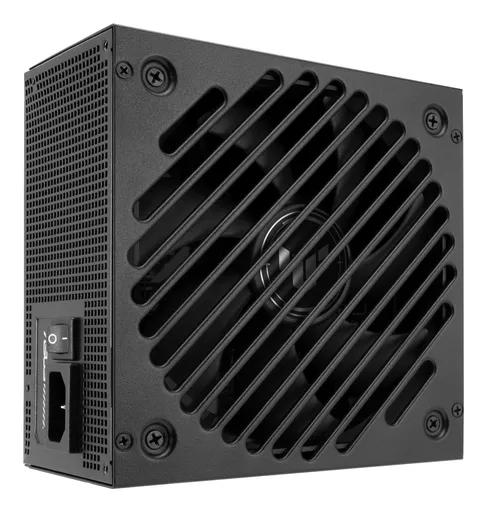

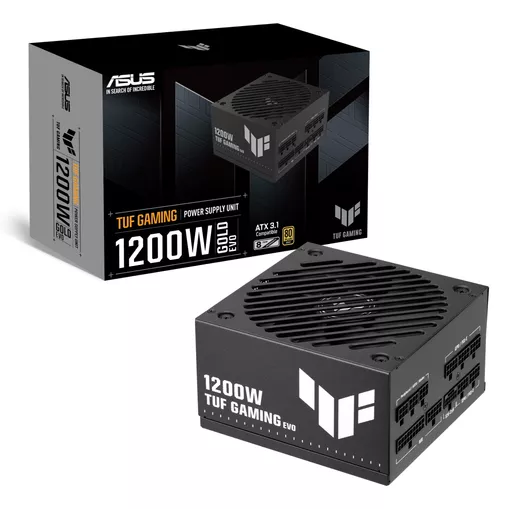

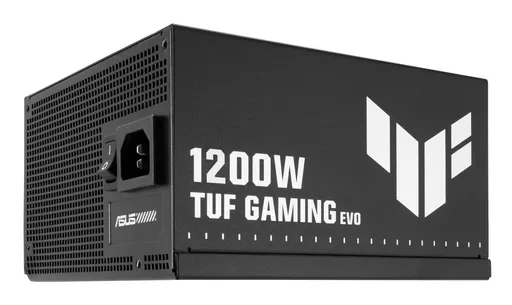

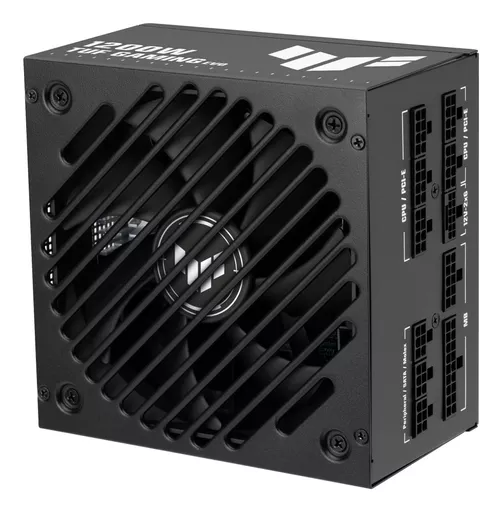

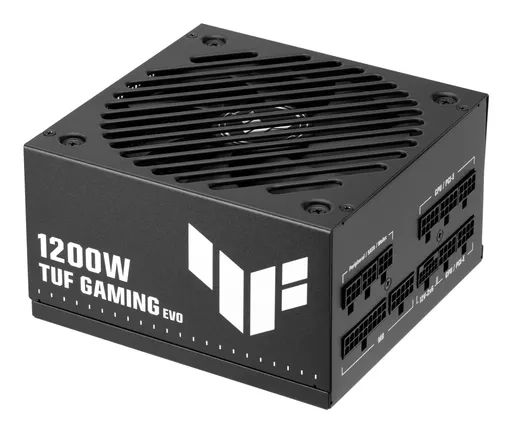

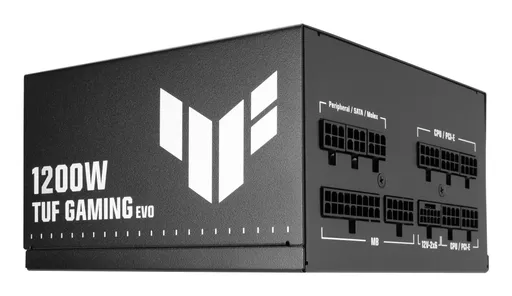

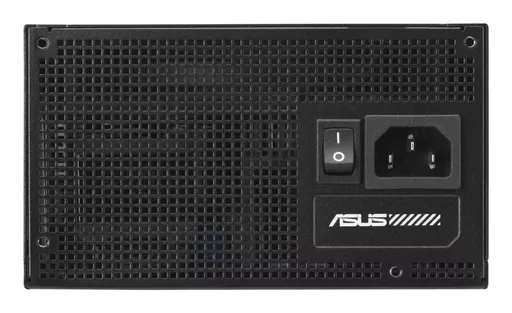

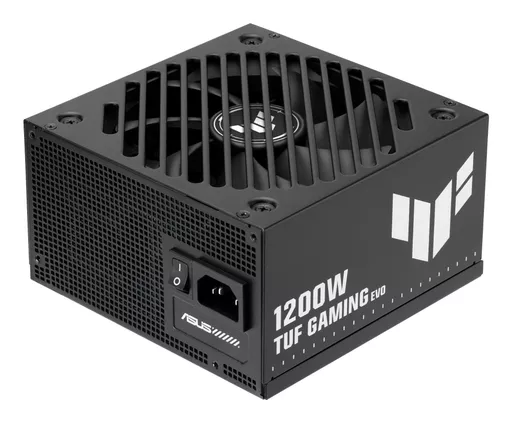

ASUS TUF-GAMING-1200G-EVO power supply unit 1200 W 20+4 pin ATX ATX Black

SKU: 90YE00SD-B0NA00  |   Brand: ASUS

ASUS TUF-GAMING-1200G-EVO power supply unit 1200 W 20+4 pin ATX ATX Black

0 in stock

£149.07 ex. VAT

Figures are exclusive of VAT.



Built For The Long Haul
The ASUS TUF Gaming 1200W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.

Purpose PC
Power supply unit (PSU) form factor ATX
Weight 3,320.00kg

Cooling

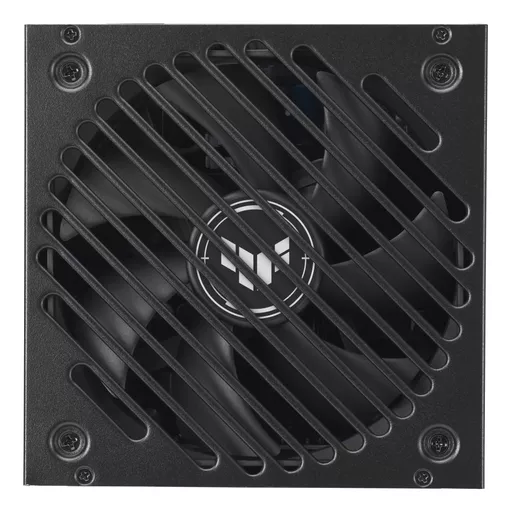

Number of fans1 fan(s)
Cooling typeActive
Performance
On/off switchYes
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
PurposePC
ATX version3.1
Mean time between failures (MTBF)120000 h
Design
80 PLUS certification80 PLUS Gold
Product colourBlack
On/off switchYes
Number of fans1 fan(s)
Cooling typeActive
Power
Total power1200 W
AC input voltage100 - 240 V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)125 W
Combined power (+12V)1200 W
Combined power (+5V)125 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)25 A
Max output current (+12V)100 A
Max output current (+5V)25 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Power protection featuresOver power, Over voltage, Under voltage, Short circuit, Over current
Ports & interfaces
Motherboard power cable length61 cm
SATA power cable length120,400 mm
Peripheral (Molex) power cable length120,400 mm
PCI Express power cable length50 cm
CPU power cable length75 cm

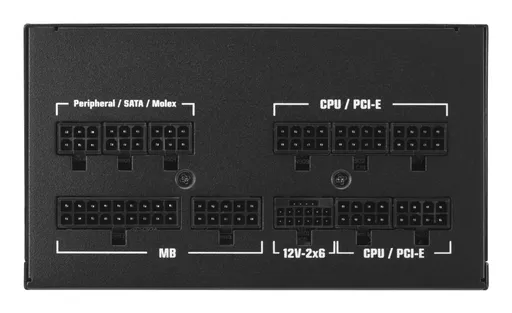

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)3
PCI Express power connectors (6+2 pin)3
CPU power connector (4+4 pin)Yes
Cabling typeFully-Modular
PCI Express power connectors (16-pin)1
Certificates
Compliance certificatesRoHS
80 PLUS certification80 PLUS Gold
Weight & dimensions
Width150 mm
Depth150 mm
Height86 mm
Weight1.87 kg
Packaging data
Package depth182 mm
Package width282 mm
Package height127 mm
Package typeBox
Package weight3.32 kg
Technical details
Compliance certificatesRoHS
