SKU: 4711377397940  |   Brand: MSI

MSI MAG A1000PLS PCIE5 power supply unit 1000 W 24-pin ATX ATX Black

SKU: 4711377397940  |   Brand: MSI

MSI MAG A1000PLS PCIE5 power supply unit 1000 W 24-pin ATX ATX Black

83 in stock

£122.00 ex. VAT

Figures are exclusive of VAT.



Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Purpose PC
Power supply unit (PSU) form factor ATX

Cooling
Fan diameter13.5 cm
Number of fans1 fan(s)
Cooling typeActive
Performance
On/off switchYes
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
PurposePC
ATX version3.1
Bearing technologyFDB
Design
80 PLUS certification80 PLUS Platinum
Product colourBlack
Fan diameter13.5 cm
On/off switchYes
Number of fans1 fan(s)
IlluminationNo
Cooling typeActive
Power
Total power1000 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100 W
Combined power (+12V)999.6 W
Combined power (+5V)100 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)83.3 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Number of +12V rail(s)1

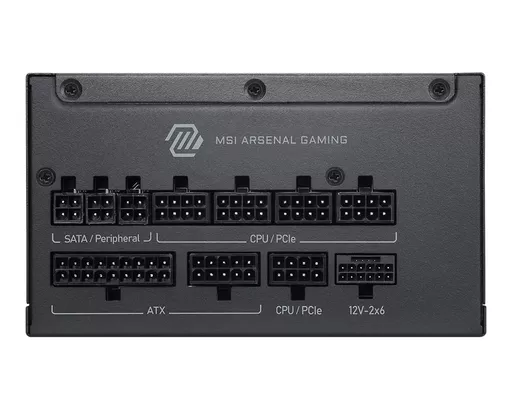

Ports & interfaces
Motherboard power cable length60 cm
SATA power cable length150,500 mm
Peripheral (Molex) power cable length450,500 mm
Motherboard power connector24-pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)No
PCI Express power connectors (6+2 pin)4
Cabling typeFully-Modular
EPS power connector (4+4 pin)Yes
PCI Express power connectors (16-pin)1
Weight & dimensions
Width150 mm
Depth150 mm
Height86 mm
Certificates
80 PLUS certification80 PLUS Platinum
