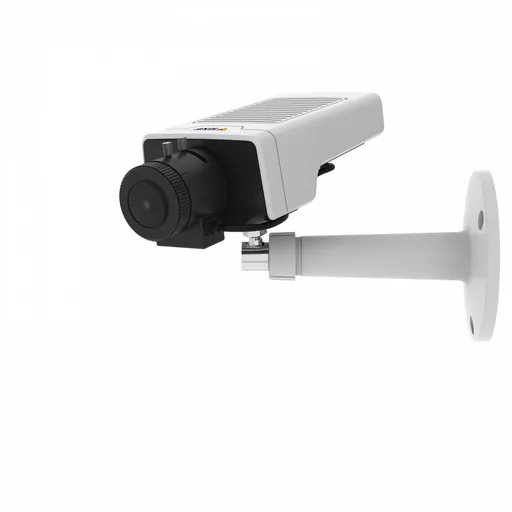

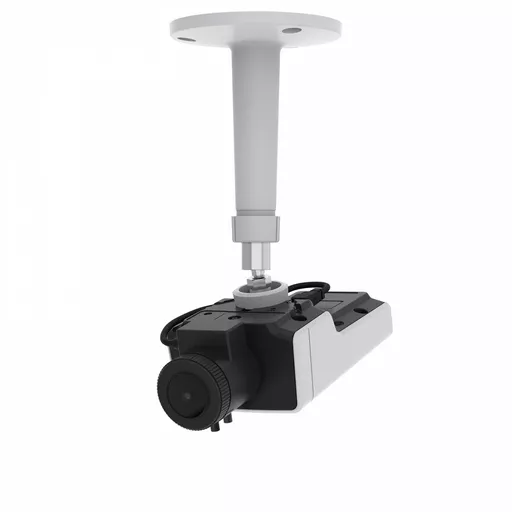

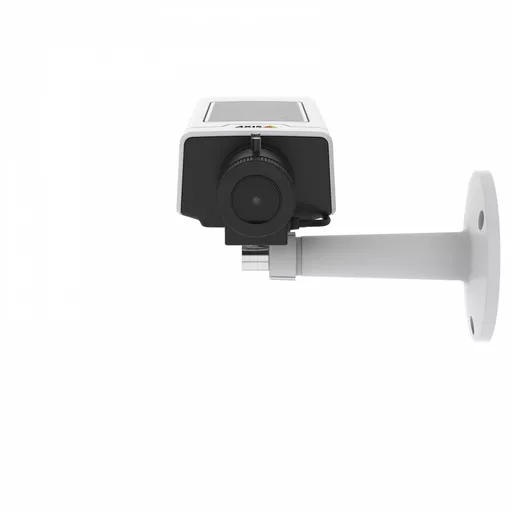

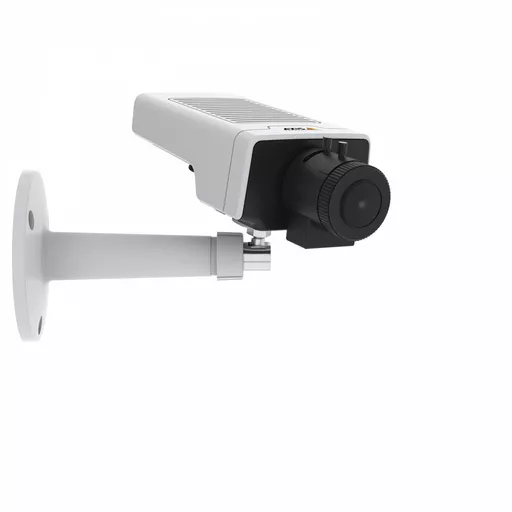

Axis 02580-001 security camera Box IP security camera Indoor 1920 x 1080 pixels Ceiling/wall

SKU: 02580-001 | Brand: Axis

Axis 02580-001 security camera Box IP security camera Indoor 1920 x 1080 pixels Ceiling/wall

2 in stock

£486.21 ex. VAT

Figures are exclusive of VAT.

+ Description

AXIS M1135 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.

+ Tech Specs

Type	IP security camera
Night vision	Y
Number of cameras	up to 1
Ethernet LAN	Y
Wi-Fi	N
Sensor type	CMOS
Product colour	Black
Connectivity technology	Wired
Placement supported	indoor
Mounting type	Ceiling/Wall
Bluetooth	N

Attributes

Performance
Infrared (IR) cut-off filter	Yes
Number of languages	12
Languages support	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
PTZ modes	Digital PTZ
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267
Design
Form factor	Box
Product colour	Black
Mounting type	Ceiling/wall
LED indicators	Yes
Housing material	Polycarbonate (PC)
Camera
Minimum illumination	0.02 lx
Camera shutter speed	1/33500 - 2 s
Lens viewing angle, horizontal	90°
Lens viewing angle, vertical	49°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 3 mm (1 / 3")
Number of sensors	1
Lens system
Number of lenses	1
Focal length range	3 - 10.5 mm
Night vision
Night vision	Yes
Video
Image quality adjustment	Brightness, Colour depth, Contrast, Sharpness
Gain control type	Auto
Bit rate control	Variable Bit Rate (VBR)
Video compression formats	AVC, H.264, H.265, HEVC, M-JPEG
Maximum resolution	1920 x 1080 pixels
Supported graphics resolutions	160 x 90, 1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	30 fps
Video streaming	Yes
Total megapixels	2 MP
Video intelligence analytic	Yes
Audio
Voice codecs	G.711, G.726, OPUS
Audio input channels	1.0 channels
Sample rate	48 kHz
Built-in microphone	Yes
Audio system	1-way
Audio formats supported	AAC-LC, ADPCM, LPCM, PCM
Audio detection	Yes
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support	Yes
Streaming method	Multicast, Unicast
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Storage
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	512 MB
Ports & interfaces
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Security
Video motion detection	Yes
Security algorithms	EAP-TLS
Password protection type	User
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Password protection	Yes
Power
Power source type	DC, PoE
Power consumption (max)	6.49 W
Power consumption (Power over Ethernet (PoE))	6.49 W
Power consumption (typical)	3.8 W
DC-in jack	Yes
DC output voltage	8, 28
Certificates
Certification	EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	70 mm
Depth	148 mm
Height	46 mm
Packaging content
Number of cameras	1
Mounting kit	Yes
Manual	Yes
Other features
Video compression formats	AVC, H.264, H.265, HEVC, M-JPEG
