SKU: 02898-001  |   Brand: Axis

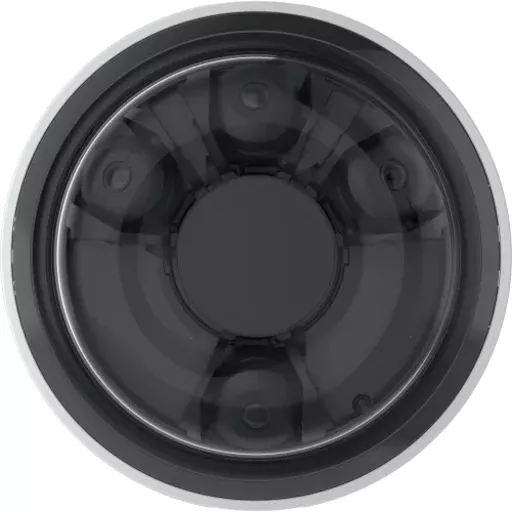

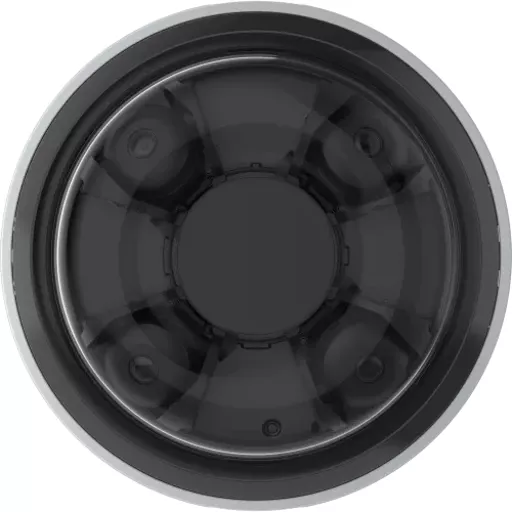

Axis P3748-PLVE Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall

SKU: 02898-001  |   Brand: Axis

Axis P3748-PLVE Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall

0 in stock

£2,225.07 ex. VAT

Figures are exclusive of VAT.



AXIS P3748-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.

Wide area surveillance with high-quality overview—24/7
Ideal for expansive outdoor areas, AXIS P3748-PLVE offers four channels with 8 MP per channel at 12.5/15 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.

Brilliant design for cost-effective installation
This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.

Powerful with strong security
This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.

Sensor type CMOS
Number of cameras up to 1
Night vision Y
Mounting type Ceiling/Wall
Placement supported Outdoor
Ethernet LAN Y
Connectivity technology Wired
Type IP security camera
Power source type PoE
Weight 3,000.00kg

Performance
TypeIP security camera
Connectivity technologyWired
Placement supportedOutdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Design
IK codeIK10
Form factorDome
Product colourBlack, White
Mounting typeCeiling/wall
International Protection (IP) codeIP66
Camera
Minimum illumination0.4 lx
Tilt angle range-23 - 0°
Pan range-180 - 180°
Camera shutter speed1/14000 - 1/2 s
Camera pan controlYes
Camera tilt controlYes
Camera pixel size1.4 µm
Lens viewing angle, horizontal360°
Lens viewing angle, vertical54 - 23°
Image sensor
Sensor typeCMOS
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Lens system
Number of lenses4
Auto focusYes
Recognize distance (wide)17.3 m
Recognize distance (tele)46.1 m
Observe distance (wide)34.3 m
Observe distance (tele)91.5 m
Identify distance (wide)8.6 m
Identify distance (tele)23 m
Detect distance (wide)86.4 m
Detect distance (tele)230.5 m
Zoom capabilityYes
Focal length range3.18 - 7.42 mm
Night vision
Night visionYes
Video
Noise reduction technology2D noise reduction, 3D noise reduction
Video compression formatsH.264, H.265
Maximum resolution3840 x 2160 pixels
Frame rate15 fps
Video streamingYes
Total megapixels8 MP
Audio
Signal-to-Noise Ratio (SNR)55 dB
Audio detectionYes
Network
Ethernet interface type10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet
Ethernet LANYes
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1 , HTTP/ 2, TLS1 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Storage
Card reader integratedYes
Compatible memory cardsMicroSDXC, MicroSD (TransFlash), MicroSDHC
Flash memory8192 MB
RAM capacity4096 MB
Ports & interfaces
Connectivity technologyWired
Power
Power source typePoE
Power consumption (max)23.6 W
Power consumption (typical)10.9 W
Operational conditions
Operating temperature (T-T)-40 - 50 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 100%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Weight3 kg
Packaging content
Number of cameras1
Technical details
Doesn't containCFR, Brominated Flame Retardant (BFR), PVC
Other features
Video compression formatsH.264, H.265
Doesn't containCFR, Brominated Flame Retardant (BFR), PVC
