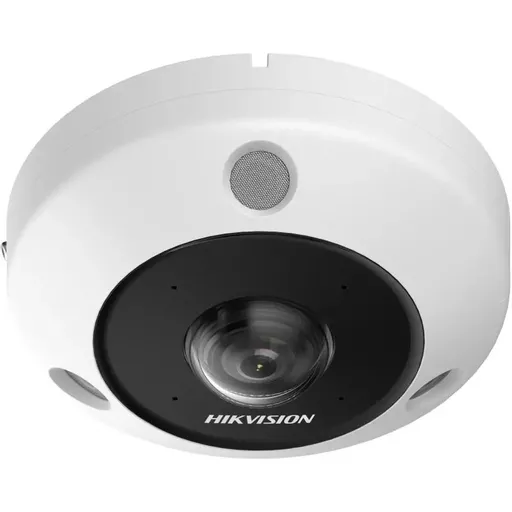

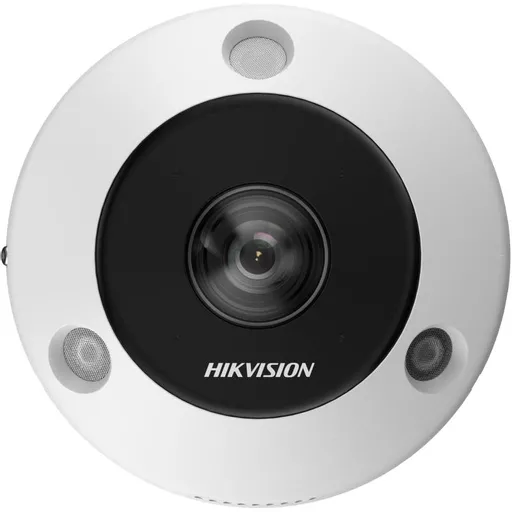

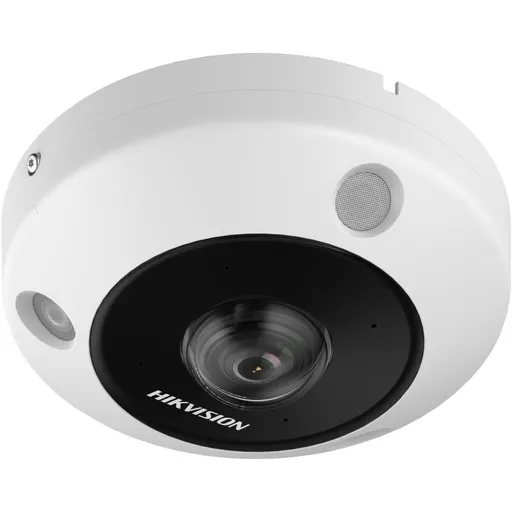

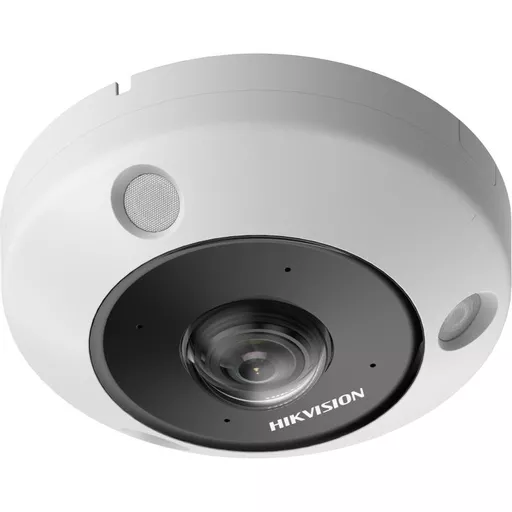

Hikvision DS-2CD63C5G1-IVS(1.29mm) Dome IP security camera Indoor & outdoor 3504 x 3504 pixels Ceiling

SKU: DS-2CD63C5G1-IVS(1.29MM)  |   Brand: Hikvision

Hikvision DS-2CD63C5G1-IVS(1.29mm) Dome IP security camera Indoor & outdoor 3504 x 3504 pixels Ceiling

3 in stock

£693.01 ex. VAT

Figures are exclusive of VAT.



Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond.

By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.

Sensor type CMOS
Ethernet LAN Y
Wi-Fi N
Connectivity technology Wired
Type IP security camera
Mounting type Ceiling
Placement supported indoor & outdoor
Number of cameras up to 1
Night vision Y
Bluetooth N
Power source type DC
Product colour White

Performance
Infrared (IR) cut-off filterYes
Number of languages33
Languages supportMulti
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Placement supportedIndoor & outdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Design
IK codeIK10
Form factorDome
Product colourWhite
Mounting typeCeiling
International Protection (IP) codeIP67
Housing materialMetal
Camera
Minimum illumination0 lx
Camera shutter speed1 - 1/100000 s
Lens viewing angle, horizontal180°
Lens viewing angle, vertical180°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number2.2
Detect distance27.9 m
Observe distance11.1 m
Recognize distance5.6 m
Identify distance2.8 m
Fixed focal length1.29 mm
Night vision
Night visionYes
Night vision distance15 m
LED typeIR
Infra-red wavelength850 nm
Video
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Gain control typeAuto
Smart IRYes
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate32 Kbps - 16 Mbps
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution3504 x 3504 pixels
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 720 x 720, 1600 x 1280, 2048 x 1536 (QXGA), 2048 x 2048, 2560 x 2560, 3072 x 2304
Frame rate30 fps
Total megapixels12 MP
Audio
Audio input channels1.0 channels
Audio output channels1.0 channels
Built-in speaker(s)Yes
Built-in microphoneYes
Audio codecsG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Sample rates8 - 48 kHz
Bit rate range8 - 320 Kbit/s
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Quality of Service (QoS) supportYes
Number of users32 user(s)
Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
User access levelAdministrator, Operator, User
Number of simultaneous live view channels20 channels
Live viewYes
Storage
Maximum memory card size256 GB
Card reader integratedYes
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory800 MB
Flash memory2048 MB
Ports & interfaces
RS-485 ports1
Connectivity technologyWired
Security
Alert notification typeE-mail
Intelligent Video Surveillance (IVS) system featuresDefocus, People counting, Scene change
Motion sensorYes
Security algorithmsEAP-MD5, EAP-PEAP, EAP-TLS, TLS
IP address filteringYes
HTTPS encryptionYes
Active tampering alarmYes
Password protectionYes
HeartbeatYes
Digital watermarkYes
Password reset via emailYes
Flash logYes
Digest authenticationYes
Alarm input channels2
Alarm output channels2
Network access storage (NAS)Yes
Management features
Web browserYes
Reset buttonYes
Behavior analysisIntrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection
Power
Power source typeDC
Power consumption (max)11.5 W
Power consumption (Power over Ethernet (PoE))12.5 W
DC output voltage12
DC output current1 A
Certificates
CertificationCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Operational conditions
Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Weight & dimensions
Height59.4 mm
Diameter14 cm
Weight715 g
Package width260 mm
Package height135 mm
Package depth230 mm
Package weight1.21 kg
Packaging data
Package width260 mm
Package height135 mm
Package depth230 mm
Package weight1.21 kg
Packaging content
Number of cameras1
Other features
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Audio codecsG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
