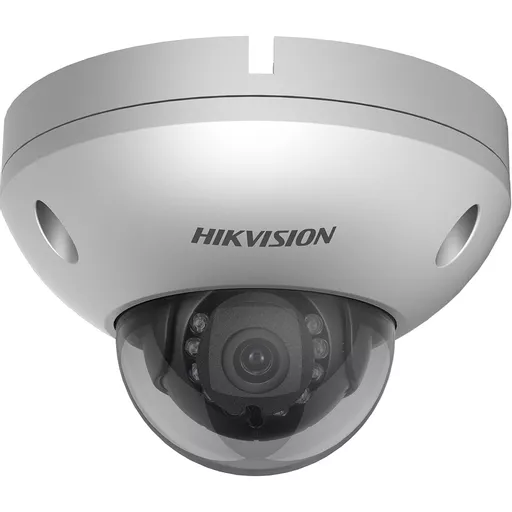

Hikvision DS-2XC6142FWD-IS(2.8MM)(C) security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling

SKU: DS-2XC6142FWD-IS(2.8MM)(C) | Brand: Hikvision

Hikvision DS-2XC6142FWD-IS(2.8MM)(C) security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling

0 in stock

£523.69 ex. VAT

Figures are exclusive of VAT.

+ Description

Hikvision’s Explosion-proof and Anti-Corrosion series offer special cameras for applications in hazardous and extreme environments.

The explosion-proof cameras use 3.5-mm thick stainless steel housing and a specially-designed joint to help prevent internal explosion. With Hikvision explosion-proof cameras monitoring can be done remotely, leading to increased safety and security without requiring the presence of personnel in hazardous areas. Hikvision explosion-proof cameras are ideal for applications such as factories, chemical plants, oil and gas stations.

Salt, humidity, and chemical contamination can significantly harm electronic devices, especially with continuous exposure. Hikvision anti-corrosion cameras, constructed of 316L grade (also known as marine grade) stainless steel, are robust enough to withstand most corrosive environments. The cameras' corrosion-resistant design is resilient to salty sea air, making it suitable for chemical, marine, naval, underwater, and other corrosive environments.

Explosion-Proof Series
Certified and rigorously tested to operate in hazardous environments

+ Tech Specs

Type	IP security camera
Sensor type	CMOS
Ethernet LAN	Y
Mounting type	Ceiling
Placement supported	outdoor
Product colour	Grey
Wi-Fi	N
Connectivity technology	Wired
Number of cameras	up to 1
Night vision	Y
Bluetooth	N

Attributes

Performance
Number of languages	33
Languages support	Bulgarian, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, LAT, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015 IC: IC-VoC (ICES-003 Issue 7:2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28) UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014 CB: IEC 62368-1:2014 BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015 LOA: SANS IEC60950-1 CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
Dynamic range	120 dB
Design
Form factor	Dome
Product colour	Grey
Mounting type	Ceiling
International Protection (IP) code	IP67
Housing material	Metal
Camera
Minimum illumination	0.009 lx
Tilt angle range	0 - 75°
Pan range	-30 - 30°
Angle of rotation	360°
Camera shutter speed	1/3 - 1100000 s
Lens viewing angle, horizontal	98.5°
Lens viewing angle, vertical	52.8°
Lens viewing angle, diagonal	116.2°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Number of sensors	1
Lens system
Maximum aperture number	1.6
Recognize distance (wide)	10.9 m
Observe distance (wide)	21.7 m
Identify distance (wide)	5.5 m
Detect distance (wide)	54.6 m
Fixed focal length	2.8 mm
Night vision
Night vision	Yes
Night vision distance	15 m
LED type	IR
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Bit rate	32 - 8
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution	2688 x 1520 pixels
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate	30 fps
Total megapixels	4 MP
Network
Bluetooth	No
Number of users	32 user(s)
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User access level	Administrator, Operator, User
Number of simultaneous live view channels	6 channels
Live view	Yes
Storage
Maximum memory card size	128 GB
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Video motion detection	Yes
IP address filtering	Yes
Active tampering alarm	Yes
Password protection	Yes
Mirror	Yes
Heartbeat	Yes
Digital watermark	Yes
Anti-flicker	Yes
Alarm input channels	1
Alarm output channels	1
Management features
Web browser	Yes
Behavior analysis	Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Power
Power source type	DC, PoE
Power consumption (max)	5 W
Certificates
Certification	FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015 IC: IC-VoC (ICES-003 Issue 7:2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28) UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014 CB: IEC 62368-1:2014 BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015 LOA: SANS IEC60950-1 CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Height	77.3 mm
Diameter	11.3 cm
Weight	1.5 kg
Package width	257 mm
Package height	145 mm
Package depth	167 mm
Package weight	1.9 kg
Packaging data
Package width	257 mm
Package height	145 mm
Package depth	167 mm
Package weight	1.9 kg
Packaging content
Number of cameras	1
Other features
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
