Performance |
---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Outdoor |
Wide Dynamic Range (WDR) | Yes |
Alarm input/output | Yes |
Dynamic range | 120 dB |
Design |
---|

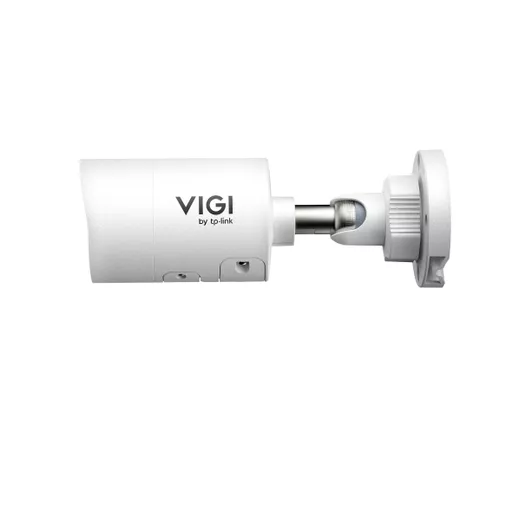

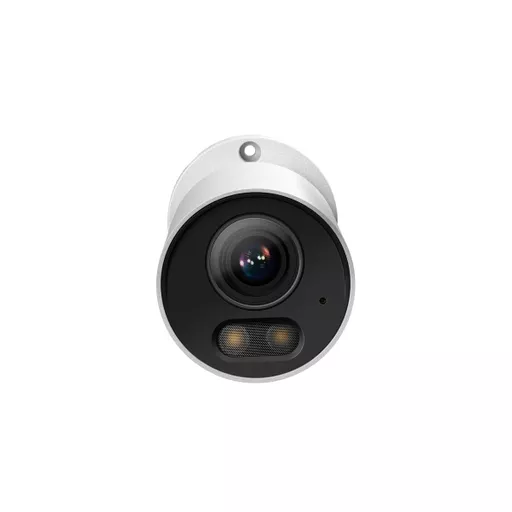

Form factor | Bullet |
Product colour | White |
Mounting type | Ceiling/Wall/Pole |
International Protection (IP) code | IP67 |
Housing material | Metal |
Camera |
---|
Minimum illumination | 0.0005 lx |
Tilt angle range | 0 - 75° |
Pan range | 0 - 360° |
Angle of rotation | 360° |
Camera shutter speed | 1/3 - 1/10000 s |
Lens viewing angle, horizontal | 95° |
Lens viewing angle, vertical | 51° |
Lens viewing angle, diagonal | 115° |
Progressive scan | Yes |
Image sensor |
---|
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 1.79 mm (1 / 1.79") |
Lens system |
---|
Number of lenses | 1 |
Maximum aperture number | 1 |
Detect distance | 76 m |
Observe distance | 29 m |
Recognize distance | 14 m |
Identify distance | 7 m |
Fixed focal length | 4 mm |
Night vision |
---|
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR/White |
Number of illumination LEDs | 2 |
Infra-red wavelength | 850 nm |
Video |
---|
Noise reduction | Yes |
Smart IR | Yes |
Region of Interest (ROI) encoding | Yes |
Highlight Compensation (HLC) | Yes |
Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
Bit rate | Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 1024 Kbps |
Back Light Compensation (BLC) | Yes |
Noise reduction technology | 3D noise reduction |
Video compression formats | H.264, H.264+, H.265, H.265+ |
Maximum resolution | 2688 x 1520 pixels |
Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
Video streaming | Yes |
Total megapixels | 4 MP |
Audio |
---|
Built-in speaker(s) | Yes |
Signal-to-Noise Ratio (SNR) | 52 dB |
Built-in microphone | Yes |
Audio system | 2-way |
Network |
---|
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
Storage |
---|
Maximum memory card size | 512 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces |
---|
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Security |
---|
Intelligent Video Surveillance (IVS) system features | Abandoned object, Abnormal sound detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection |
Video motion detection | Yes |
IP address filtering | Yes |
HTTPS encryption | Yes |
Active tampering alarm | Yes |
Password protection | Yes |
Digest authentication | Yes |
Alarm input channels | 1 |
Alarm output channels | 1 |
Management features |
---|
Web browser | Yes |
Cloud-managed | Yes |
Power |
---|
Power source type | DC, PoE |
DC output voltage | 12 |
Operational conditions |
---|
Operating temperature (T-T) | -30 - 60 °C |
Storage temperature (T-T) | -40 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions |
---|
Length | 191 mm |
Diameter | 6.6 cm |
Weight | 600 g |
Sustainability |
---|
Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI |
Packaging content |
---|
Number of cameras | 1 |
Mounting kit | Yes |
Manual | Yes |
Technical details |
---|
Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI |
Other features |
---|
Video compression formats | H.264, H.264+, H.265, H.265+ |
