SKU: E103164  |   Brand: Elo Touch Solutions

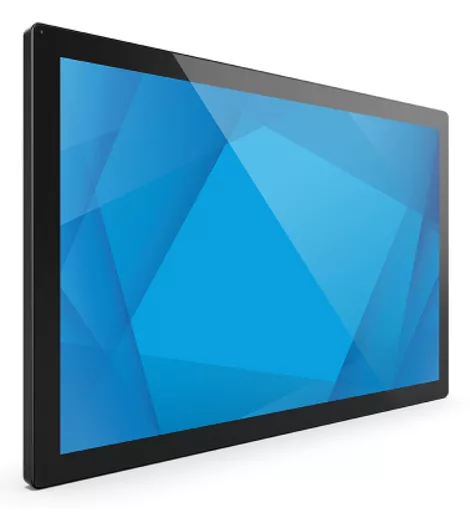

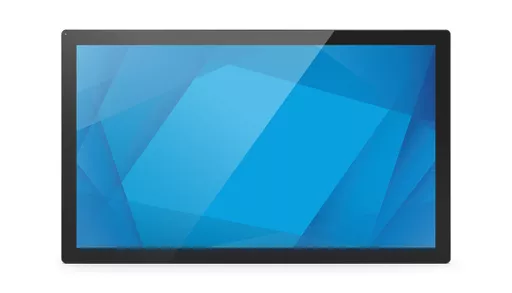

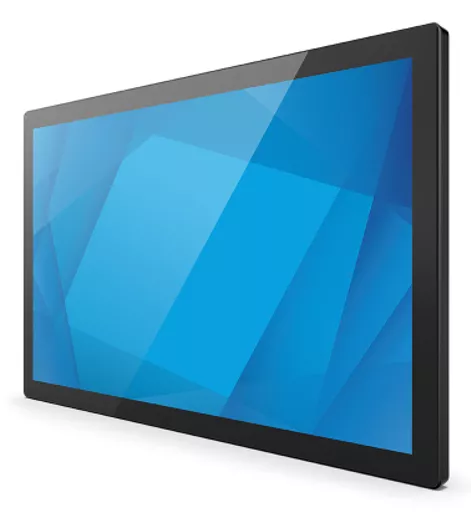

Elo Touch Solutions TouchPro PCAP Kiosk design 80 cm (31.5") LED 400 cd/m² Full HD Black Touchscreen

SKU: E103164  |   Brand: Elo Touch Solutions

Elo Touch Solutions TouchPro PCAP Kiosk design 80 cm (31.5") LED 400 cd/m² Full HD Black Touchscreen

0 in stock

£870.24 ex. VAT

Figures are exclusive of VAT.



Interactive Display
Elevate your applications with Elo’s 3204L 32‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 3204L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 32‑inch tablet.

Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.

Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 3204L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays
can be mounted behind a mirror, in a counter or in a fully encased
kiosk for added durability or aesthetics.

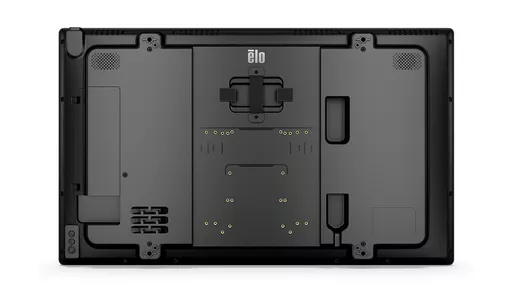

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in
landscape, portrait and tabletop orientations, providing optimal
flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance,
Elo’s 3204L delivers the reliability and durability businesses need even in the most
demanding conditions. With the addition of extended product life cycles and global
certifications, you can trust in the long-term performance and suitability of the 3204L
for diverse international markets.

Display technology LED
Product design Kiosk design
Product colour Black
HDMI ports quantity 2
HD type Full HD
Display resolution 1920 x 1080 pixels
Weight 15,280.00kg

Display
Panel typeTFT-LCD
Display number of colours16.7 million colours
Number of simultaneous touchpoints40
TouchscreenYes
Display technologyLED
Display diagonal80 cm (31.5")
Display resolution1920 x 1080 pixels
Display brightness400 cd/m²
HD typeFull HD
Response time8 ms
Contrast ratio (typical)3000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Native aspect ratio16:9
Maximum frame rate60 fps
Ports & interfaces
USB connector typeUSB Type-C
DisplayPort version1.2
USB portYes
HDMI version1.4
DisplayPorts quantity1
Ethernet LANYes
HDMI ports quantity2
Ethernet LAN (RJ-45) ports2
RS-232 interfaceYes
Audio
Number of built-in speakers2
RMS rated power5 W
Built-in speaker(s)Yes
Design
Product designKiosk design
Placement supportedIndoor
OrientationHorizontal
Product colourBlack
Panel mounting interface400 x 400 mm
CertificationFCC
VESA mountingYes
Screen shapeFlat
Performance
PurposeUniversal
Mean time between failures (MTBF)50000 h
On Screen Display (OSD)Yes
Power
Power consumption (off)0.29 W
Power consumption (typical)45 W
Power consumption (standby)2.3 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Weight & dimensions
Display width763.7 mm
Display depth49.6 mm
Display height458.1 mm
Display weight10.9 kg
Packaging data
Package width905 mm
Package depth160 mm
Package height680 mm
Package weight15.3 kg
Cables includedAC
Packaging content
Cables includedAC
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%
Certificates
CertificationFCC
Technical details
VESA mountingYes
USB connector typeUSB Type-C
Panel typeTFT-LCD
DisplayPort version1.2
Number of simultaneous touchpoints40
Network
Ethernet LANYes
Other features
USB connector typeUSB Type-C
Panel typeTFT-LCD
DisplayPort version1.2
Number of simultaneous touchpoints40
Mean time between failures (MTBF)50000 h
Display technologyLED
